Zi San 220V D1 Desktop Player Lossless Hifi Player USB DAC Bluetooth Mastering SACD Hard Disk DSD

Zi San 220V D1 Desktop Player Lossless Hifi Player USB DAC Bluetooth Mastering SACD Hard Disk DSD

Advantages:
1. Can directly play compressed DFF and SACD ISO files. No need to convert and decompress
2. The soft and hard decoding of DSD files can be set (soft decoding up to DSD512), which is convenient for decoders that do not support DoP to play DSD.
3. Support APP (for Apple and Android) to select songs with cover. You can use air play or dlan push without APP
4. Replaceable analog board design. Please keep an eye out for more DAC analog boards in the future
5. Unlimited hard disk capacity, multiple partitions. Support NTFS, EXFAT, and FAT32
6. Can connect external decoders, such as for Amanero (firmware_2006be1x firmware) and XMOS interface and other decoders
7. Size 220 x 52 x 191mm/8.7 x 2 x 7.5" (WxHxD)
8. External usb wifi. Buyer can use usb extension cable to avoid wifi signal affecting the player

Functions:
1. Support U disk and hard disk. Compatible with most music formats in the market. Support APP (for Apple and Android) with cover to select songs. For APE, FLAC, WAV, MP3, M4A, WMA, AIFF, AAC, DSF, DFF, ISO, CUE, and even multi-channel DTS5.1, etc. Quickly parse CUE and ISO. Support common file systems of U disk, such as for NTFS , EXFAT, FAT32. And supports multiple partitions
2. Bluetooth receiver: Adopt Bluetooth module for LDAC. It also supports for SBC, APTX, APTX-HD and LDAC, LDAC up to 96K 24b sampling rate
3.Built-in compatible digital interface for Amanero. The USB DAC supports wired connection of computer and mobile phone. It can drive compatible digital interface for Amanero. For Linux, MAC, and mobile phone (no driver required). Windows driver download link: https://amanero.com/drivers/setupuac2.exe
4. With coaxial and optical input: It is very convenient to connect TV, set-top box, CD and other audio sources. The CS8416, which is very easy to lock in frequency, is used, and the focus is on the slave mode. The CPLD+crystal oscillator scheme is used to avoid the I2S signal jitter of the CS8416.
5. Coaxial and optical output supports DoP. Simply put, the DSD signal is transmitted through the coaxial cable. But at the same time, the decoder needs to support the DoP function. If the decoder DAC you have is ES9038 or mojo that supports DoP, when using coaxial fiber to D1 to play DSD music, it can realize real DSD signal transmission and playing.
6. With native differential HDMI IIS signal output: supports two common differential HDMI IIS signal outputs.
7. External usb wifi networking function. Support APP (for Apple and Android) with cover to select songs. You can also use Air play or DLAN push without APP, and it is for Samba to connect to NAS.
8. Support external decoder. Support DAC using interfaces for Amanero (requires firmware_2006be1x firmware) and for XMOS. With this function, you can use your favorite decoder without turning on the computer. The D1 external decoder function supports up to PCM384 and DSD512, but it is related to the external decoder capability. If the external decoder only supports the hard solution of DSD64, then the DSD hard solution of this method is up to DSD64, of course, the soft solution still supports DSD512.

More Details:
- 220V power supply adopts a fully shielded EMI filter socket to efficiently filter out the mains clutter
- Analog ±15V power supply abandons the LM317 78xx and the like, adopts a customized transformer + jung super super regulated power supply, built-in high-speed AD847 op amp, 45H11 power tube, solid-state + MLCC + blue hybrid filter
- D1 digital board adopts the I2S solution of dual crystal oscillator + CPLD, and our self-developed 4-core 1.2G CPU core board, which is convenient for decoding and compressing DSD files. Independent power supply of multiple power sources, independent power supply of crystal oscillator, I2S differential transmission, SPDIF signal abandons the cheap PE65612, and adopts high-end DA101C isolation. Upgradable CCHD-957 hifi crystal oscillator
- D1 analog board adopts two high-index ES9038Q2M + dual LM49720 LPF solutions. It has a pluggable design with an op amp seat, solid-state filtering, red coupling, with XLR differential output and RCA/3.5 single-ended analog output, and relay delay protection. The whole board can be replaced, please pay attention to the release of more DAC boards in the future

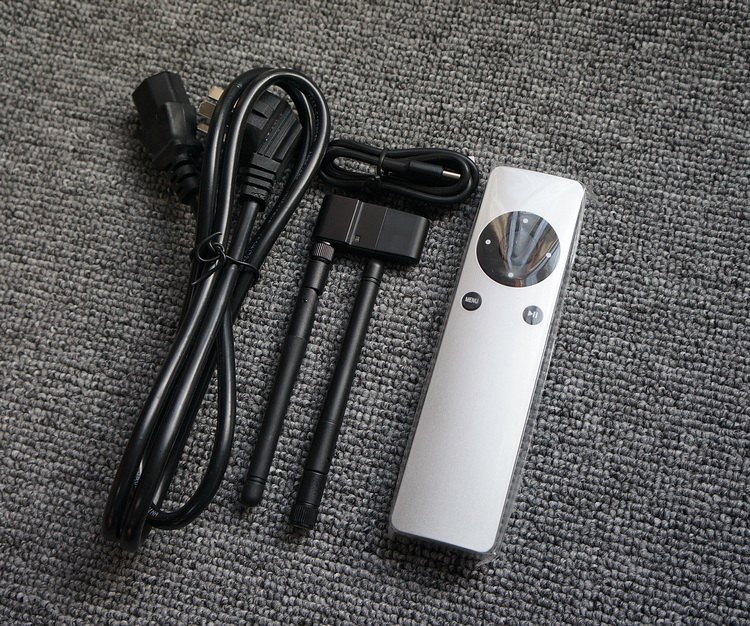

Package Included:
- 1 x Music Player
- 1 x Power Cord
- 1 x USB Cable
- 2 x Antennas
- 1 x Remote Control

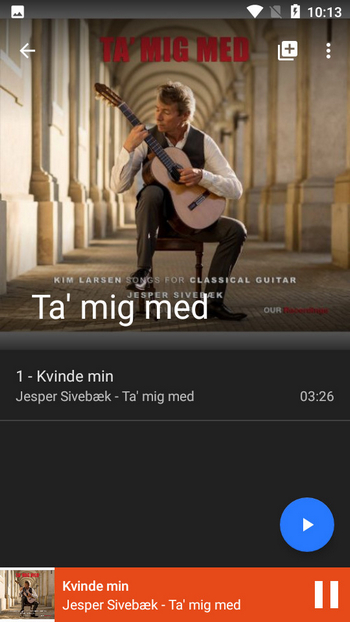

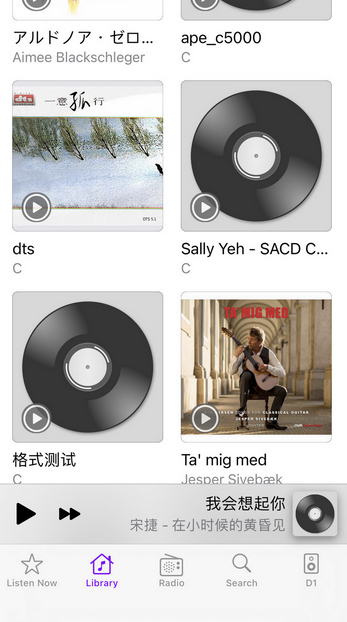

APP Interface Preview:
