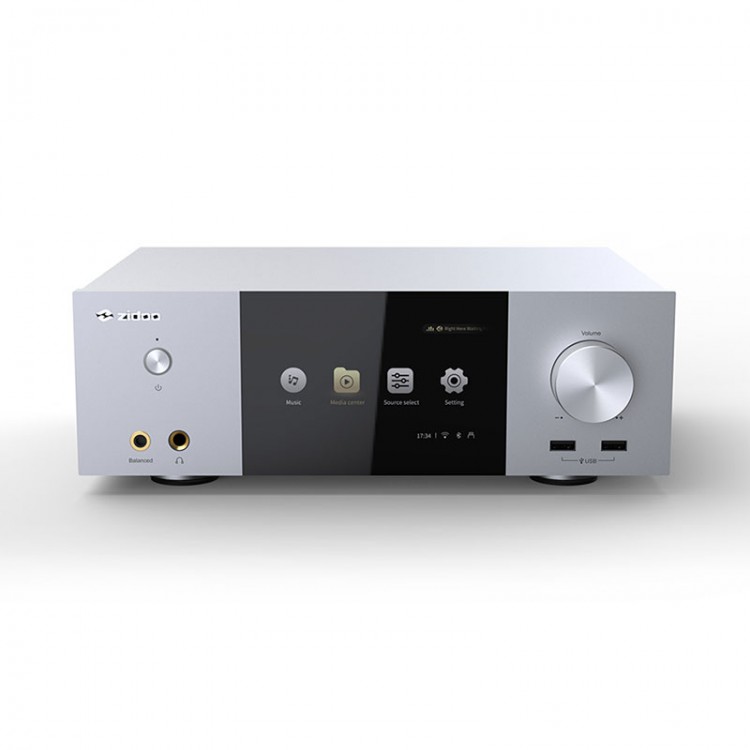

ZIDOO NEO S Lossless HiFi Digital Audio Player High Performance Audio Decoder Built-in SSD with 5-inch OLED Screen

ZIDOO NEO S Lossless HiFi Digital Audio Player High Performance Audio Decoder Built-in SSD with 5-inch OLED Screen

Description:
- NEO S is a new product which is all-round, high-performance and cost-effective, providing excellent audio and video quality to users.
- NEO S is an all-in-one device with functions like HiFi music digital decoding, streaming playback, headphone amplifier functions and movie playback.
- NEO S inherits NEO X's craftsmanship with aluminum thickened chassis and 5-inch OLED.
- Built in with SSD, dual ES9068 DAC, dual digital/analog power supply modules and toroidal power supply.

Specification:
- Model: NEO S

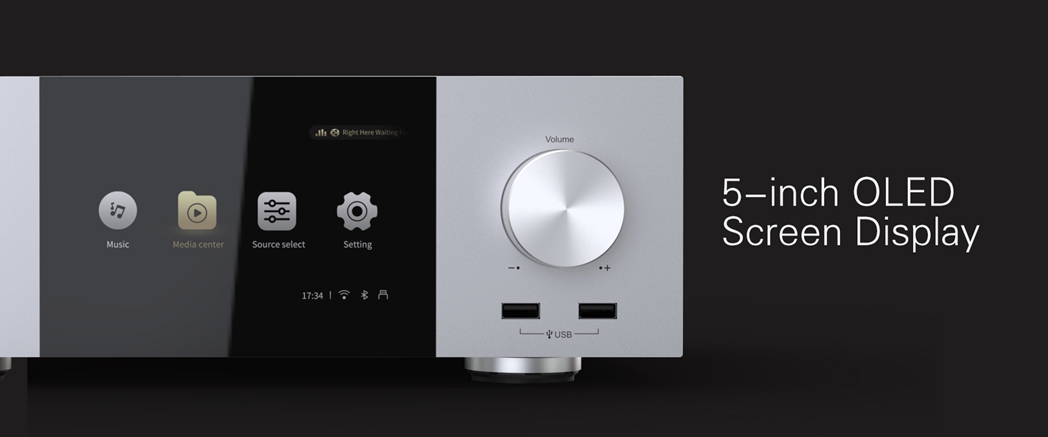

- Display: 5-inch OLED HD touch screen

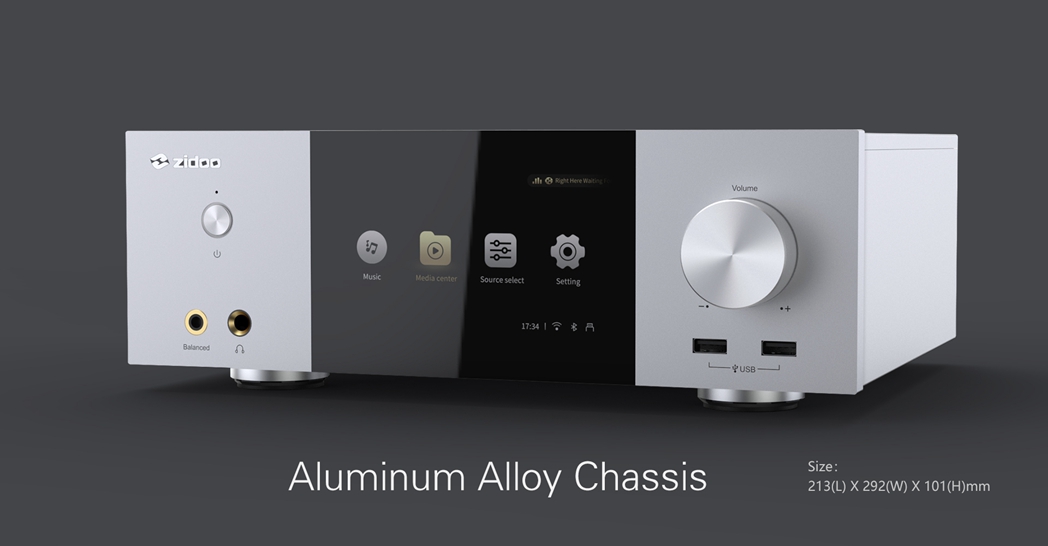

- Chassis: Aviation aluminum alloy
- CPU: Realtek RTD1619DR ARM Cortex-A55 (hexa-core)
- GPU: ARM Mali-G51 MP3
- Internal SSD: 256G SSD (M.2 SATA 3.0 2280, up to 1TB)
- Audio DAC: ESS 9068 x 2

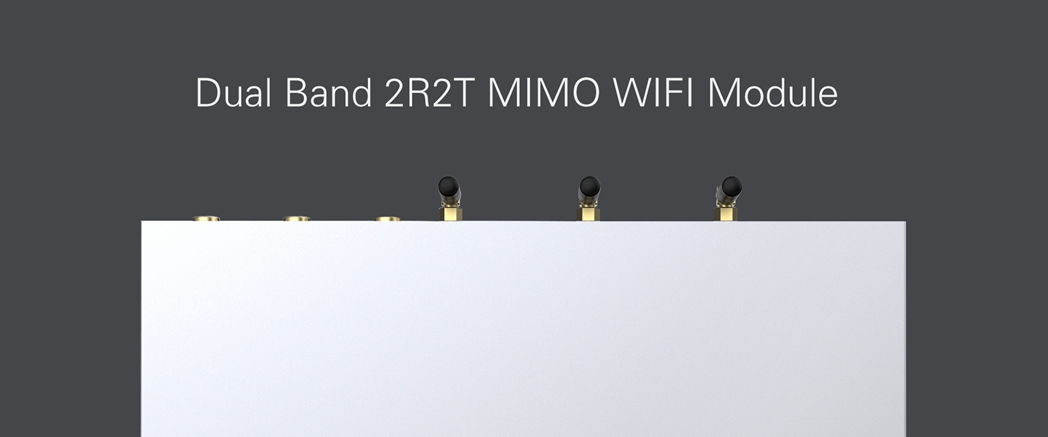

- Wi-Fi: 2.4G + 5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
- Ethernet: RJ-45 (10/100/1000Mbps)
- HDMI Output: 2.0a (4K at 60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output); Support audio pass-through
- Video Decoding: 4K at 60p HEVC/H.265 12Bit HDR10, HDR10+, Dolby Vision
- Audio Decoding: Support true-hd HD audio passthrough, stereo PCM decoding; Built-in DAC audio decoding: support up to stereo DSD512, PCM 768KHz 32Bit, MQA
- Bluetooth Audio Input: CSR8675 flagship Bluetooth audio module(BT5.0); Support lossless audio protocols such as SBC/AAC/aptX/aptX LL/aptX HD/LDAC
- USB Audio Input: USB audio compatible system: for Windows (7,10), Mac, Android; Support up to stereo DSD512, PCM 768KHz 32Bit, MQA

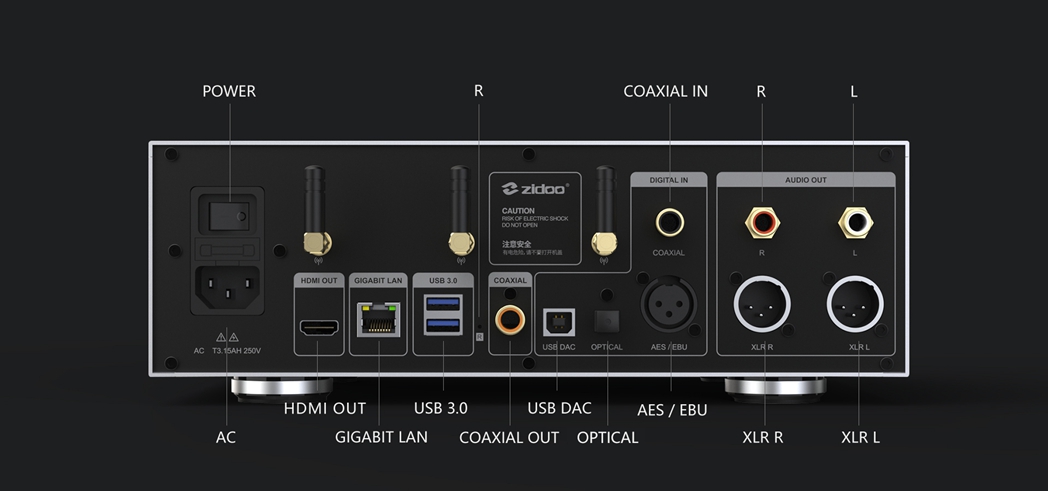

- Digital Audio Input: USB DAC IN, AES/EBU input, Coaxial input, Optical input
- Digital Audio Output: Coaxial output, HDMI output, USB Audio output, Bluetooth output
- Analog Audio Output:
  Preamp output: XLR (balanced), RCA
  Headphone amplifier output: 4.4mm balanced, 6.3mm single-ended
- Headphone Impedance: 16-300Ω (low-gain mode: 16-32Ω; high-gain mode: 32-300Ω)
- USB Ports: USB3.0 x 2, USB2.0 x 2
- Control Ports: IR IN, Bluetooth, TCP/IP control (WOL)
- Power Supply: AC110 ~ 240V 50/60Hz
- Dimensions: 213(L) x 292(W) x 101(H)mm

XLR (balanced) Output:
- Output Level (Vrms): 4.1Vrms
- THD+N: -118dB
- Noise: 2uVrms
- SNR: 120dB (20Hz-20kHz)
- Frequency Response: ±0.25dB (20Hz-20kHz)
- Crosstalk: -120dB (1kHz, Fs=44.1kHz)
- DNR: 119dB

RCA (single-ended) Output:
- Output Level (Vrms): 2.16Vrms
- THD+N: -116dB
- Noise: 2.5uVrms
- SNR: 119dB (20Hz-20kHz)
- Frequency Response: ±0.258dB (20Hz-20kHz)
- Crosstalk: -130dB (1kHz, Fs=44.1kHz)
- DNR: 118dB

Headphone 4.4mm Balanced Output (low-gain mode):
- Output Level (Vrms): 2.26Vrms
- Output Power/Impedance: 310mW/32Ω
- THD+N: -116dB
- Noise: 1.7uVrms
- SNR: 118dB (20Hz-20kHz)
- Frequency Response: ±0.25dB (20Hz-20kHz)
- Crosstalk: -128dB (1kHz, Fs=44.1kHz)
- DNR: 118dB

Headphone 4.4mm Balanced Output (high-gain mode):
- Output Level (Vrms): 4.1Vrms
- Output Power/Impedance: 110mW/300Ω
- THD+N: -118dB
- Noise: 3.5uVrms
- SNR: 120dB (20Hz-20kHz)
- Frequency Response: ±0.25dB (20Hz-20kHz)
- Crosstalk: -130dB (1kHz, Fs=44.1kHz)
- DNR: 119dB

Headphone 6.3mm Single-Ended Output (low-gain mode):
- Output Level(Vrms): 1.5Vrms
- Output Power/Impedance: 138mW/32Ω
- THD+N: -114dB
- Noise: 3.2uVrms
- SNR: 116dB(20Hz-20kHz)
- Frequency Response: ±0.25dB (20Hz-20kHz)
- Crosstalk: -128dB (1kHz, Fs=44.1kHz)
- DNR: 115dB

Headphone 6.3mm Single-Ended Output (high-gain mode):
- Output Level (Vrms): 2.7Vrms
- Output Power/Impedance: 47mW/300Ω
- THD+N: -114dB
- Noise: 3.5uVrms
- SNR: 118dB (20Hz-20kHz)
- Frequency Response: ±0.25dB (20Hz-20kHz)
- Crosstalk: -132dB (1kHz,Fs=44.1kHz)
- DNR: 118dB

Details for System:
- https://www.zidoo.tv/Product/os/model/NEO+S/target/W7ysLPE4pF1KKmVViAFMcQ%3D%3D.html

Package Included:

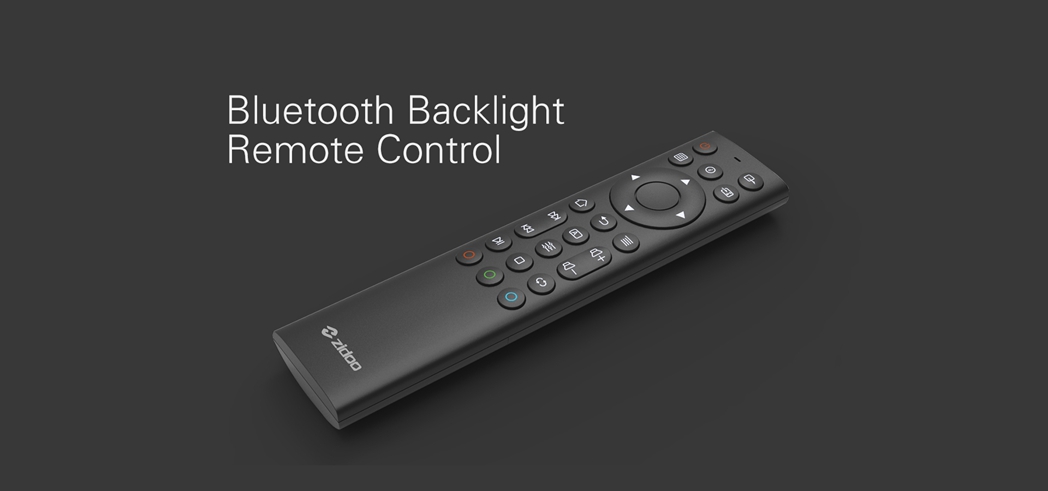

- 1 x Remote Control
- 1 x Power Cable
- 3 x Antennas
- 1 x User Manual
