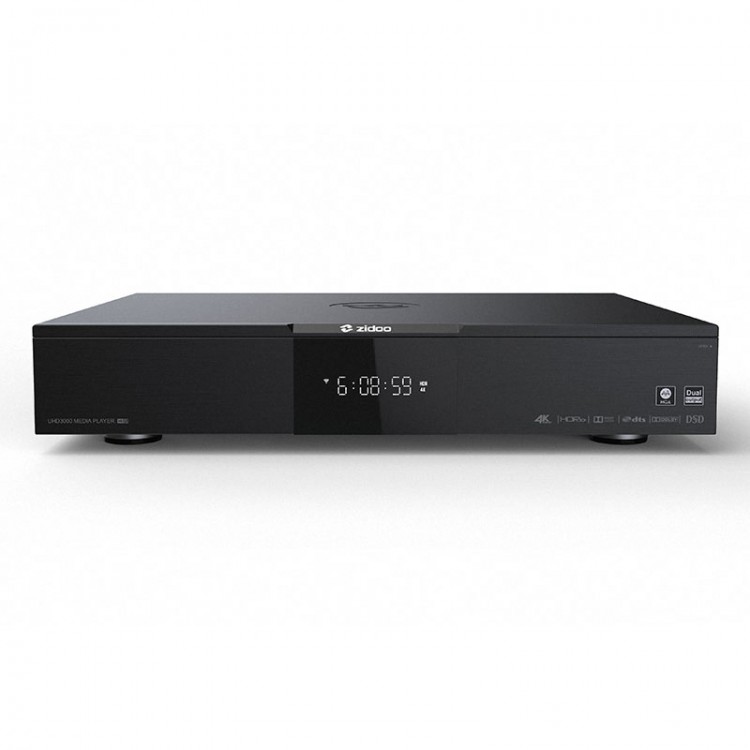

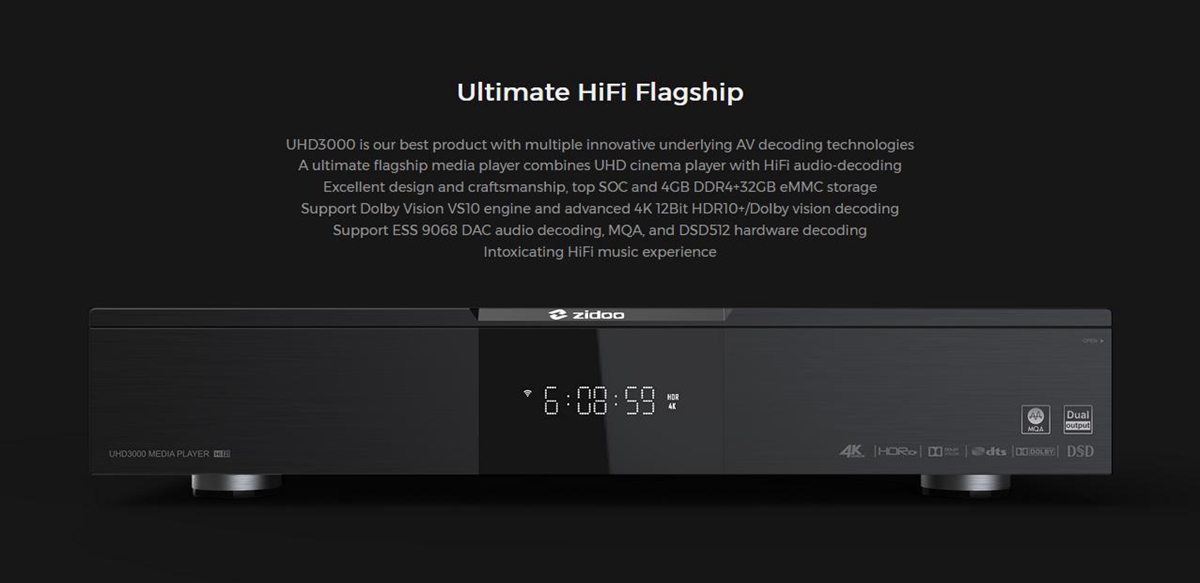

ZIDOO UHD3000 Ultra-HD Blu-ray Music Player 4K HDR Dolby Vision Hard Drive Audio Player HiFi Decoder

ZIDOO UHD3000 Ultra-HD Blu-ray Music Player 4K HDR Dolby Vision Hard Drive Audio Player HiFi Decoder

Features:
- 430mm standard size, excellent texture with all-aluminum alloy brushed panel, frosted upper cover, thickened bottom and shockproof foot pad.

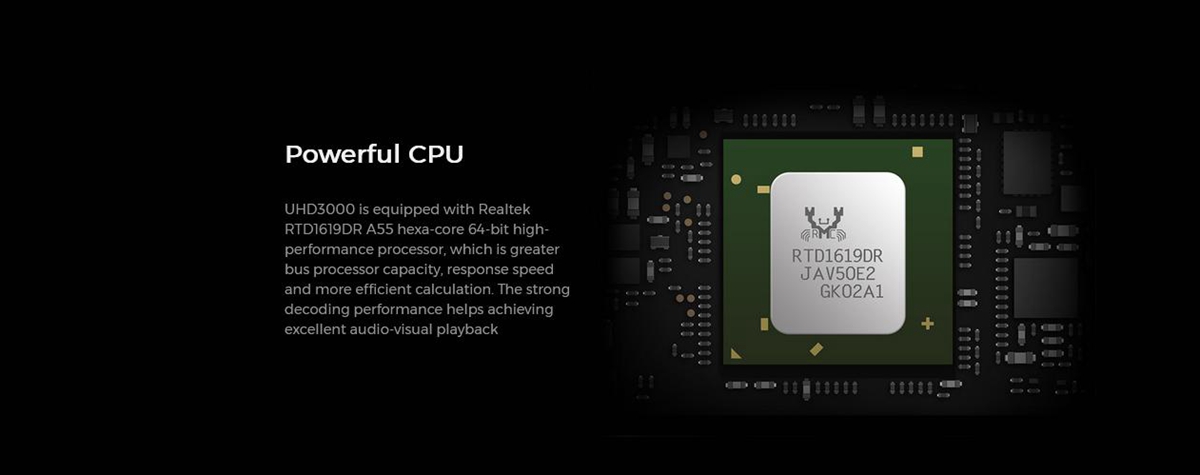

- A new generation of Realtek RTD1619 DR hexa-core 64-bit A55 CPU with larger bus processing capacity and faster computing efficiency.
- 4G DDR4 + 32GB EMMC large memory, 64-bit bandwidth, system is fluent.

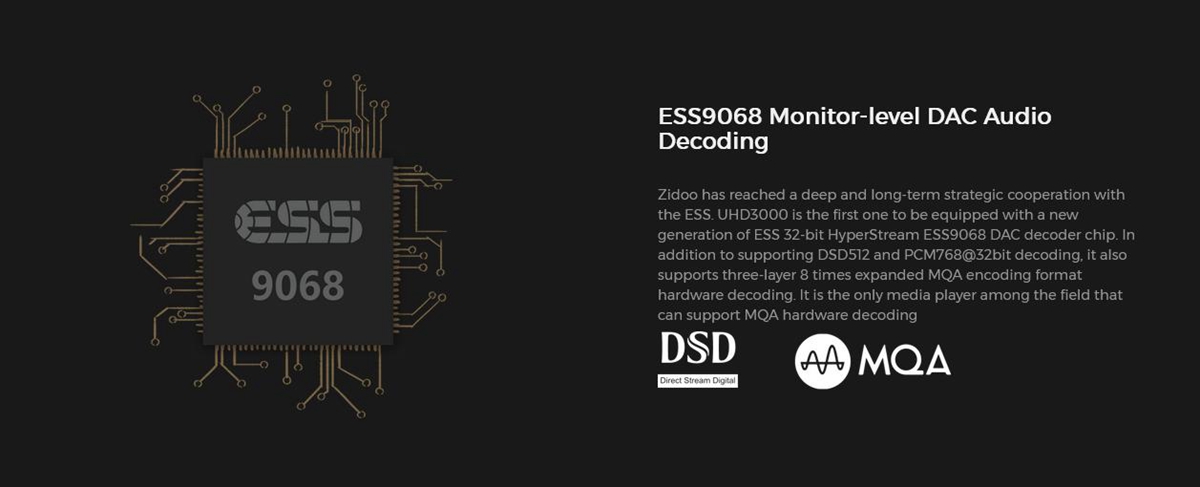

- XMOS+ESS9068 DAC supports hard decoding DSD512/PCM 768KHz 32Bit/MQA.
- Supporting MQA, SACD ISO (stereo), DSF, DFF, WAV, FLAC etc. and seamless playback and CUE track.

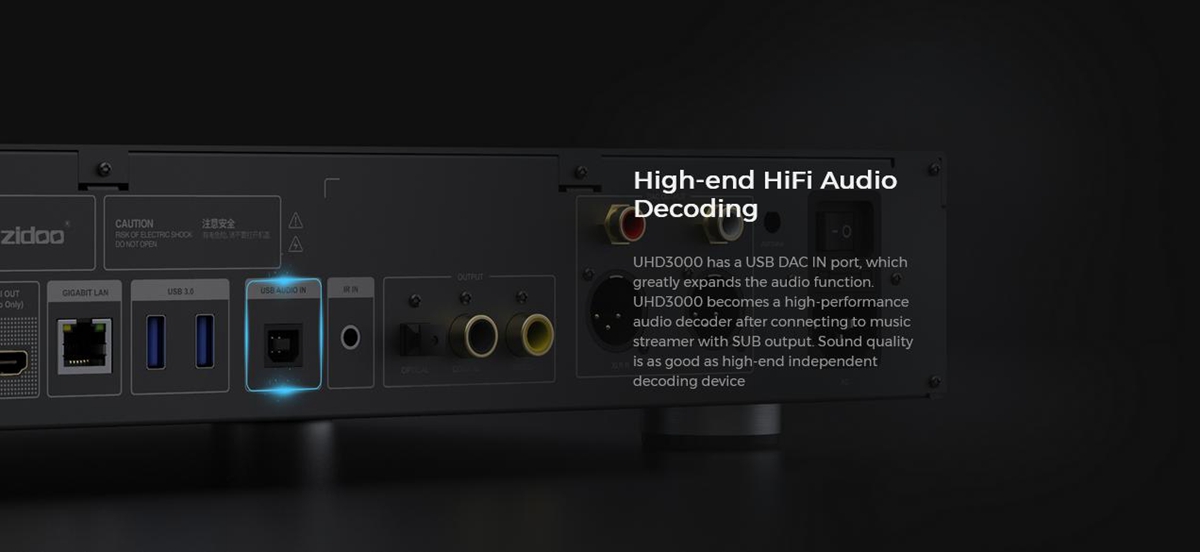

- Supporting USB DAC in as good as high end audio decoders, it is also compatible with Windows 7/10, for MAC OS and for Android.

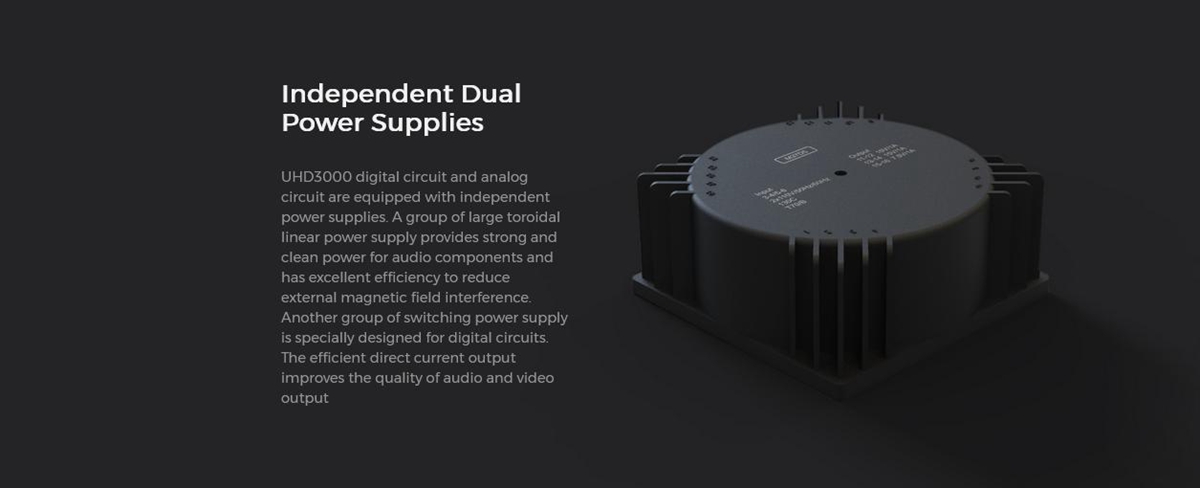

- High-quality switching power supply + large toroidal linear power supply, which is specially designed for audio and video circuits independently to ensure strong power source and good signal output.

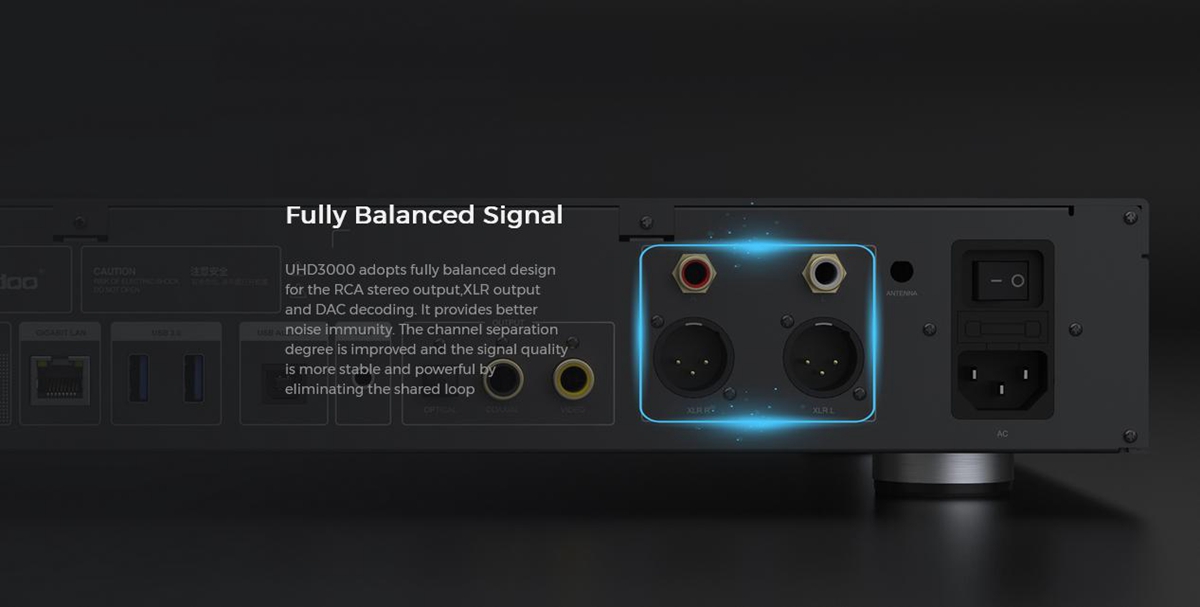

- High-fidelity audio decoding supports XLR full balance and RCA analog audio output.
- Dual HDMI audio and video separate output can enjoy 4K video and HD audio at the same time without upgrading AV amplifier.

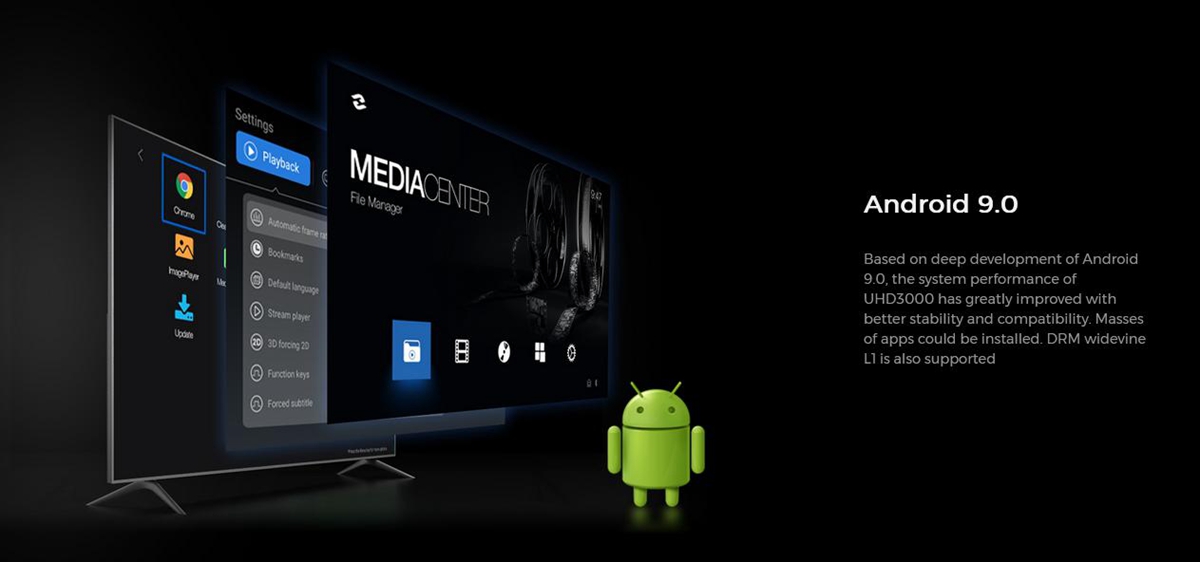

- For Android 9.0 operating system has significantly improved system performance and stability, the operation is more free and smooth.

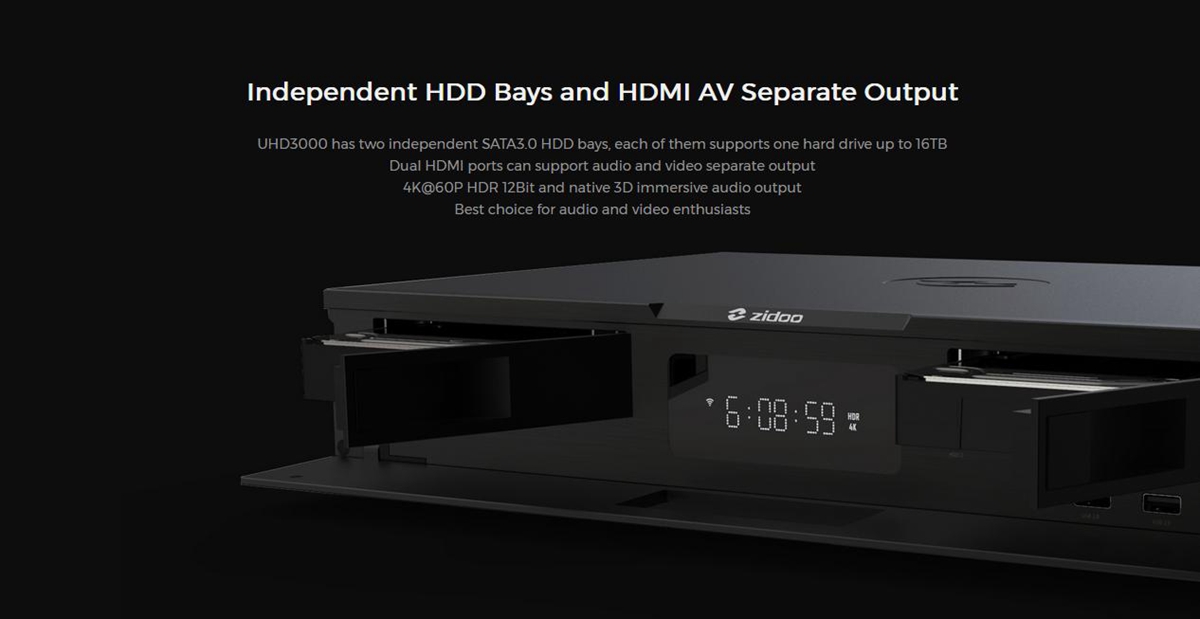

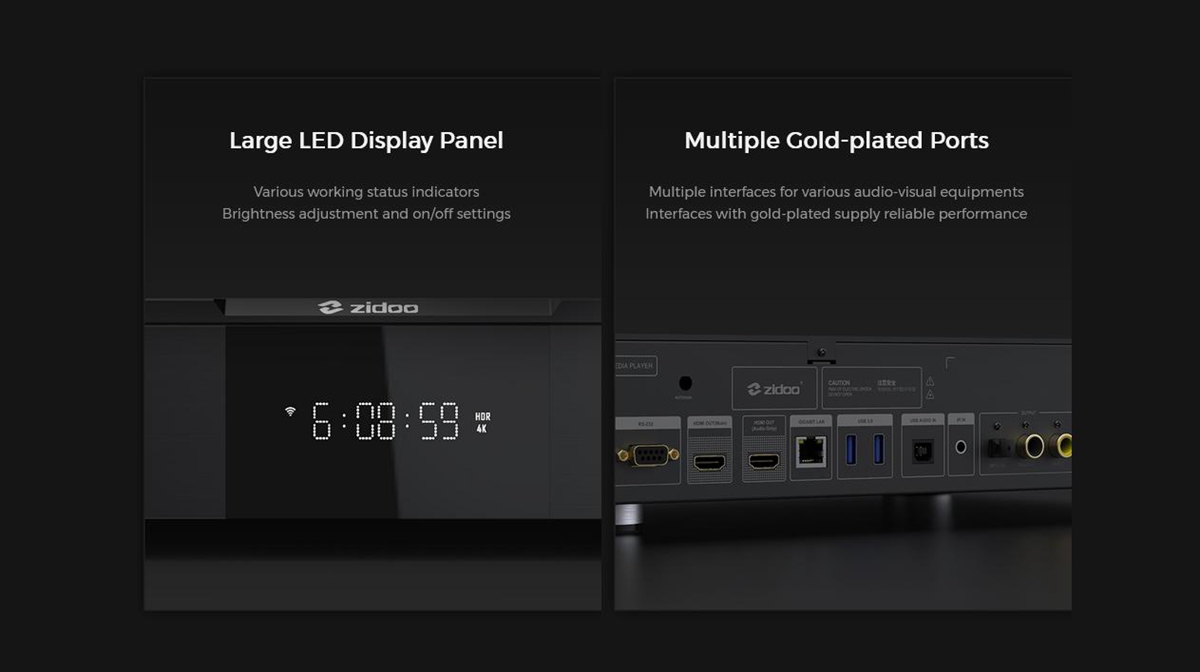

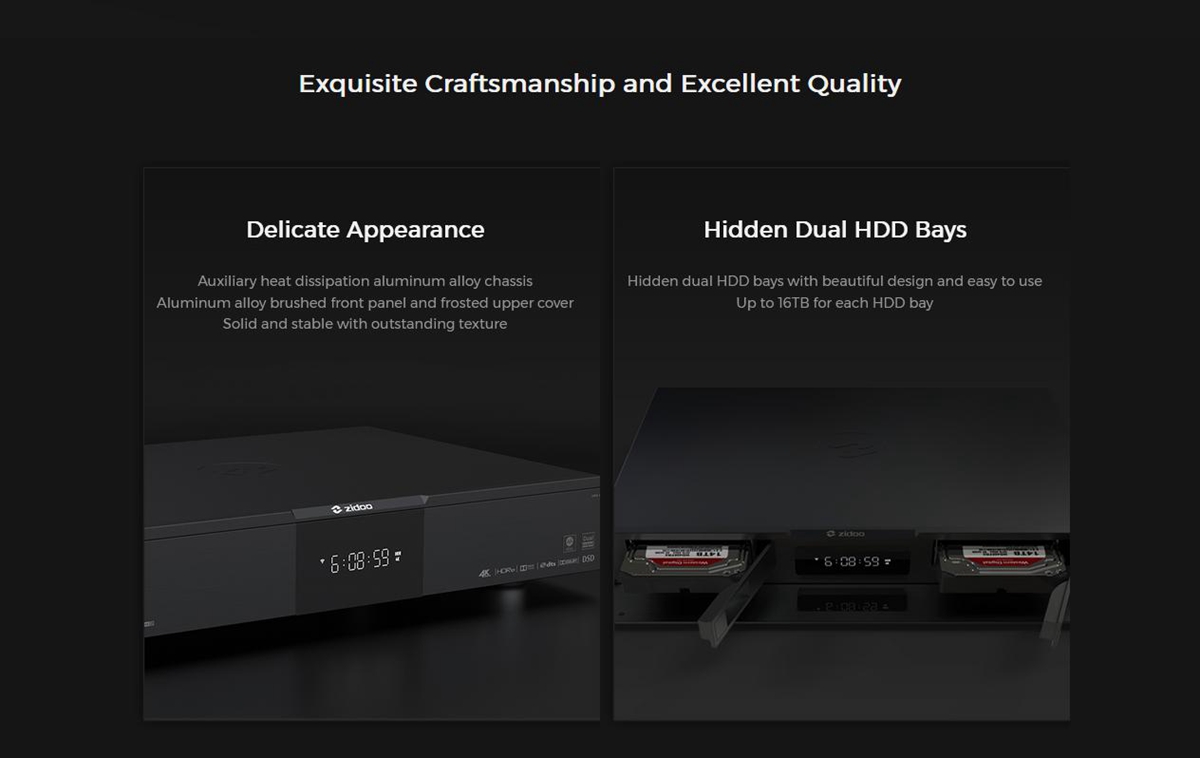

- Large LED display panel, dual hidden NSS patented HDD bays and each HDD bay support capacity up to 16TB.
- The built-in VS10 image quality engine supports Dolby Vision processing and mapping any image to colors similar to Dolby Vision, which greatly improves the image quality.

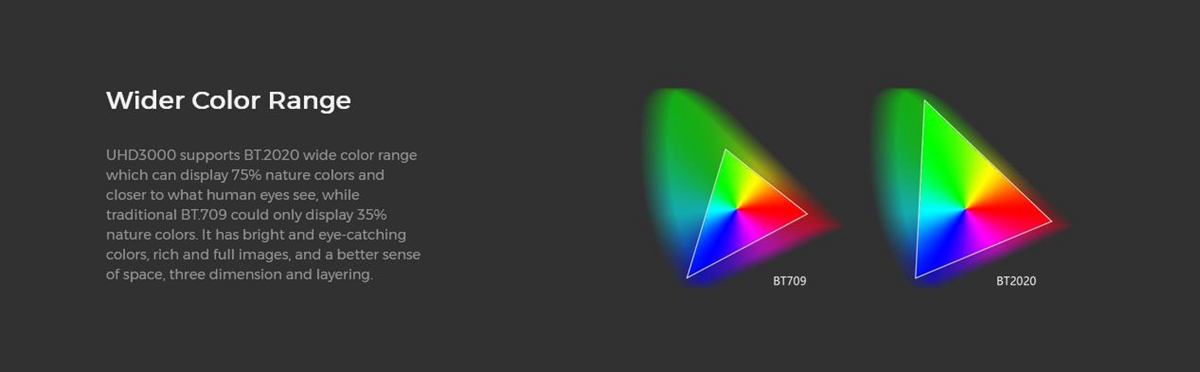

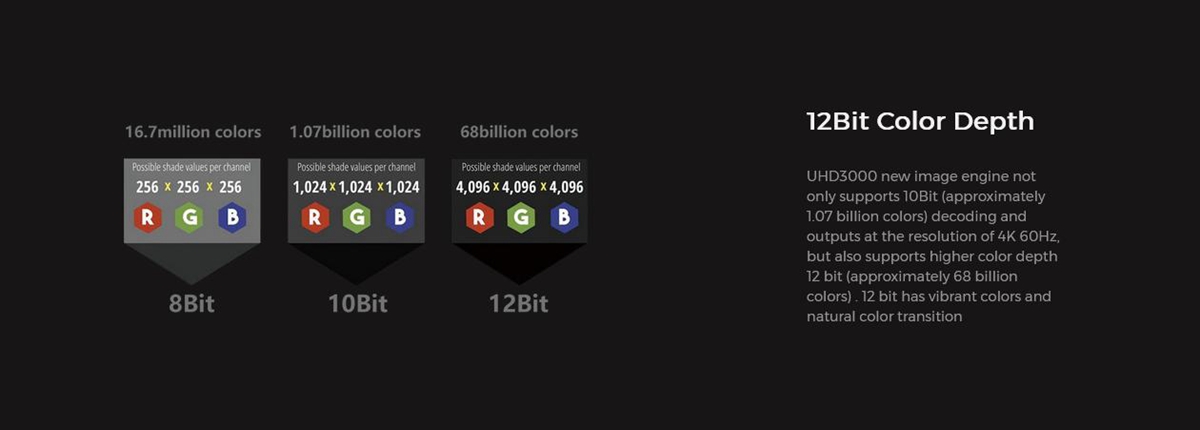

- HDMI 2.0 supports 4K 60Hz point-to-point output, HDR (HDR10/HLG/HDR10+/Dolby Vision), 12Bit, BT.2020 wide color range and YCbCr 4:4:4 color space. Supporting outputting raw three-dimensional multi-channel audio format based on object.
- Processing HDR10 static metadata (MaxFall, MaxCll) more accurately which shows higher brightness and deeper black level.
- Supporting acquiring and processing HDR10+ dynamic metadata, colors and brightness are obtained frame by frame and scene by scene.
- More advanced Dolby Vision technology supports high-quality Dolby Vision low latency (LLDV) output, which can output the most suitable brightness for each frame and scene, shadow is darker while highlight is brighter, vision effect is amazing.
- Automatic frame rate 23.976 and resolution ensures smooth movie playback without interruption.
- Supporting external BD/DVD (unencrypted)/CD discs and CD ripping.

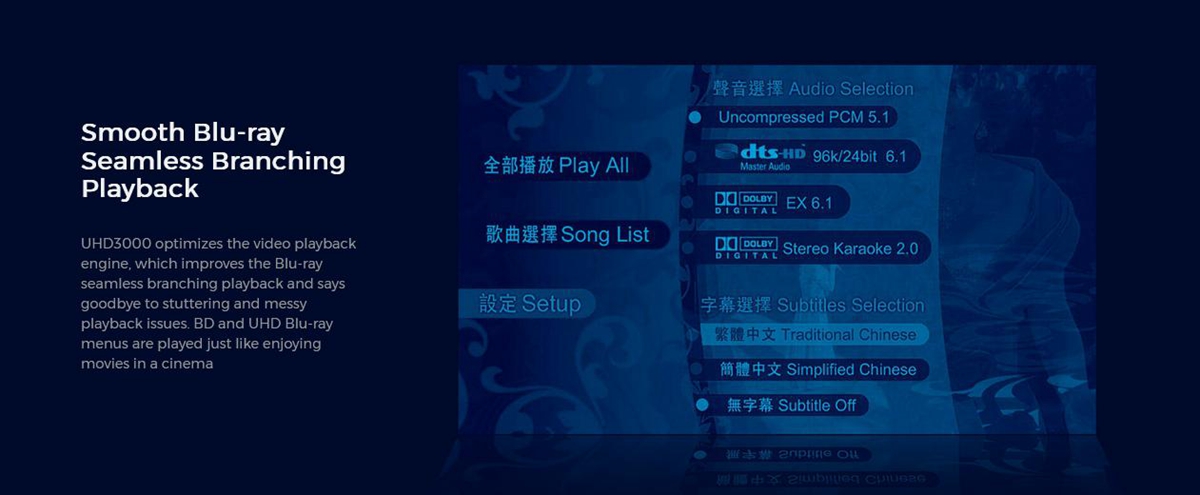

- Complete BD/BD3D/UHD Blu-ray menu playback and Blu-ray seamless branching playback are supported.
- Almost all common 3D video formats could be played, including MVC 3D (Blu-ray, MKV).

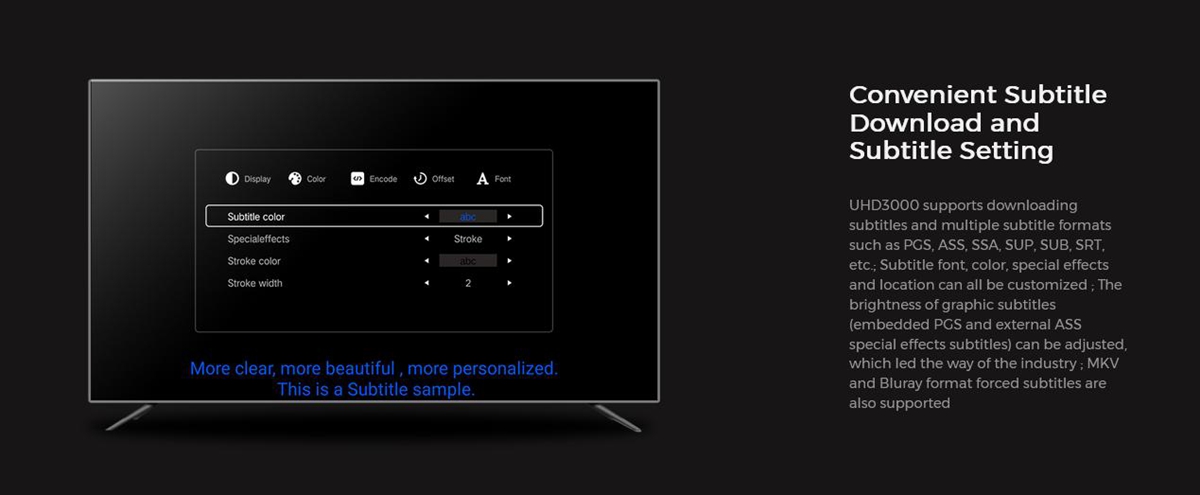

- Graphics special effects subtitles are supported and subtitles brightness can be adjusted. Subtitles can be downloaded. ZIDOO is the only one among the field to support BLURAY and MKV forced subtitle.
- Spotify music streaming and high-definition online video playback are supported. DRM Widevine L1 is also supported.

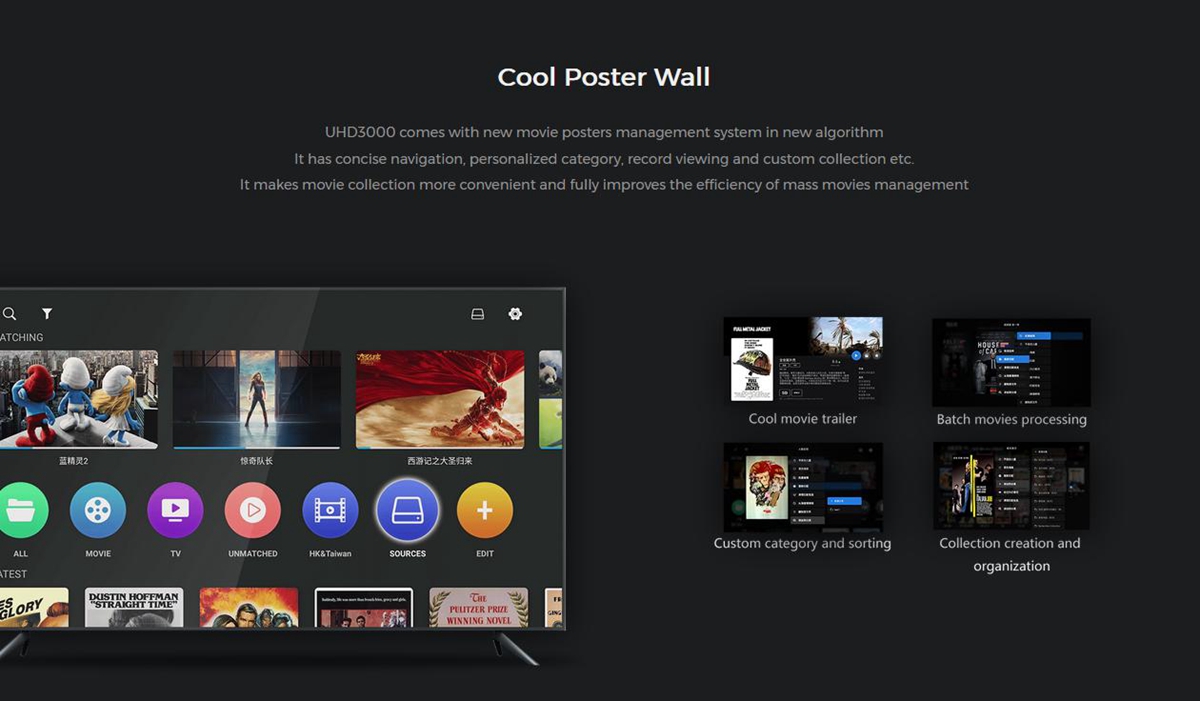

- Home Theater app supports automatic poster scanning, movie trailers and custom classification and management.

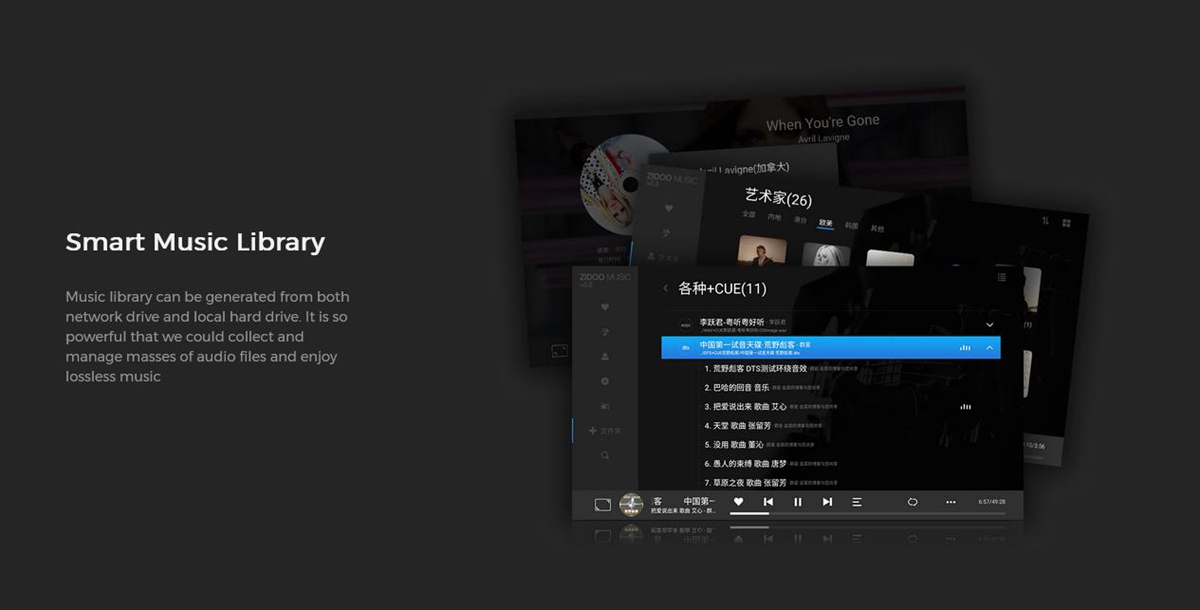

- The newly upgraded version of Music Player supports seamless playback, personalized configuration, associated lyrics and songs matching.

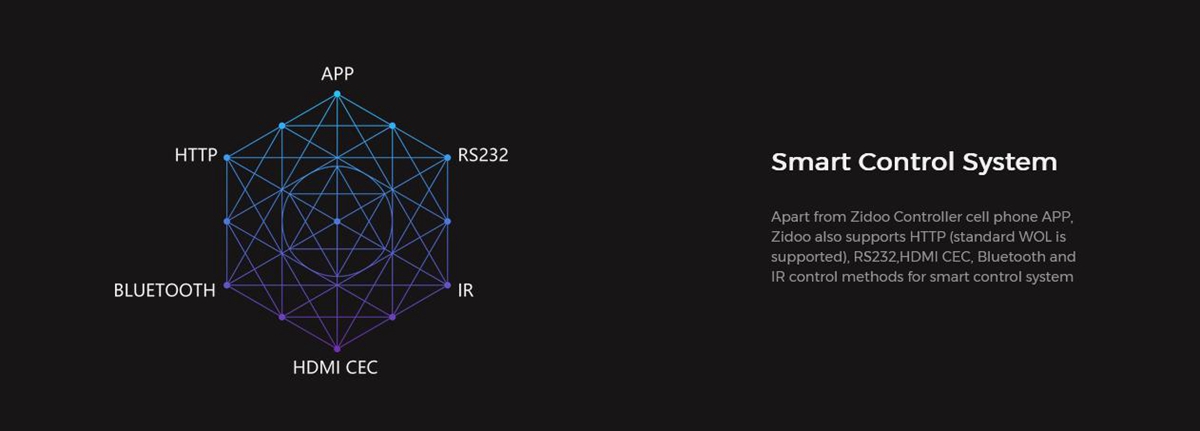

- Standard WOL works well. ZIDOO can be integrated into smart home with Control4 OS 3.0 control system (on/off can be controlled).

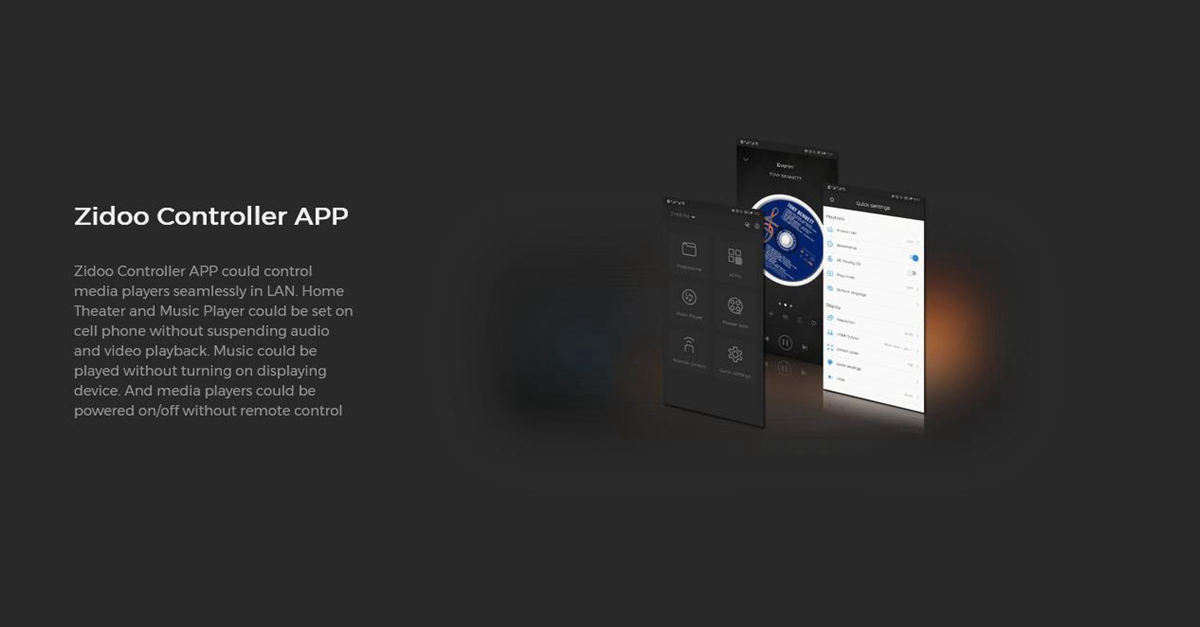

- Supporting the exclusive ZIDOO Controller APP for iOS and for Android mobile phones, which can seamlessly play and control ZIDOO media players (on/off can be controlled).

Specification:
- Model: UHD3000
- Front display: LED
- Chassis: Aviation aluminum alloy
- OS: for Android 9.0
- CPU: for Realtek RTD1619DR ARM Cotex-A55 (hexa-core)
- GPU: ARM Mali-G51 MP3
- RAM: 4GB DDR4
- Internal storage: 32GB EMMC
- Bluetooth: BT4.2
- WiFi: 2.4G + 5G dual band WiFi, 802.11 a/b/g/n/AC 2T2R MIMO 867Mbps
- Ethernet: 1 x RJ-45(10/100/1000Mbps)
- HDMI output: 2.0a (4K at 60fps/12Bit/HDR/BT2020/YCbCr 4:4:4 output) + 1.4 (Audio Only passthrough) separate audio and video output
- Video decoding: 4K at 60p, HEVC/H.265 12Bit, HDR10, HDR10+, Dolby Vision
- Audio decoding: support HD audio passthrough and decode 2 channels; Built-in for XMOS + ES9068 DAC, supporting for DSD/MQA decoding
- USB audio input: USB audio input supports for Windows 7, for Windows 10, for Mac and for Android; Up to two channels DSD512, PCM768KHz at 32bit PCM, for MQA decoding
- Other audio port: 1 x Optical, 1 x Coaxial, 1 x RCA L/R, XLR L/R balanced
- Power supply: AC110 - 120/220 - 240V 50/60Hz (built-in switching power supply + linear power supply)
- USB: 2 x USB3.0; 2 x USB 2.0
- SATA: 2 x SATA3.0 and 3.5” HDD bay (HDD is not included)
- Dimension: 312 x 430 x 72mm

Analog Audio Characteristics:
- Frequency range: 20Hz - 20KHz +/-0.35dB
- SNR: >128dBrA
- THD+N: <0.00026%
- Output level: (XLR)4.0+/-0.4Vrms; (RCA)2.0+/-0.2Vrms
- DNR: >125dB
- Crosstalk: >135dBrA

Package Included:
- 1 x Host
- 1 x Remote Control
- 2 x Power Cable
- 2 x Antennas
- 1 x User Manual
