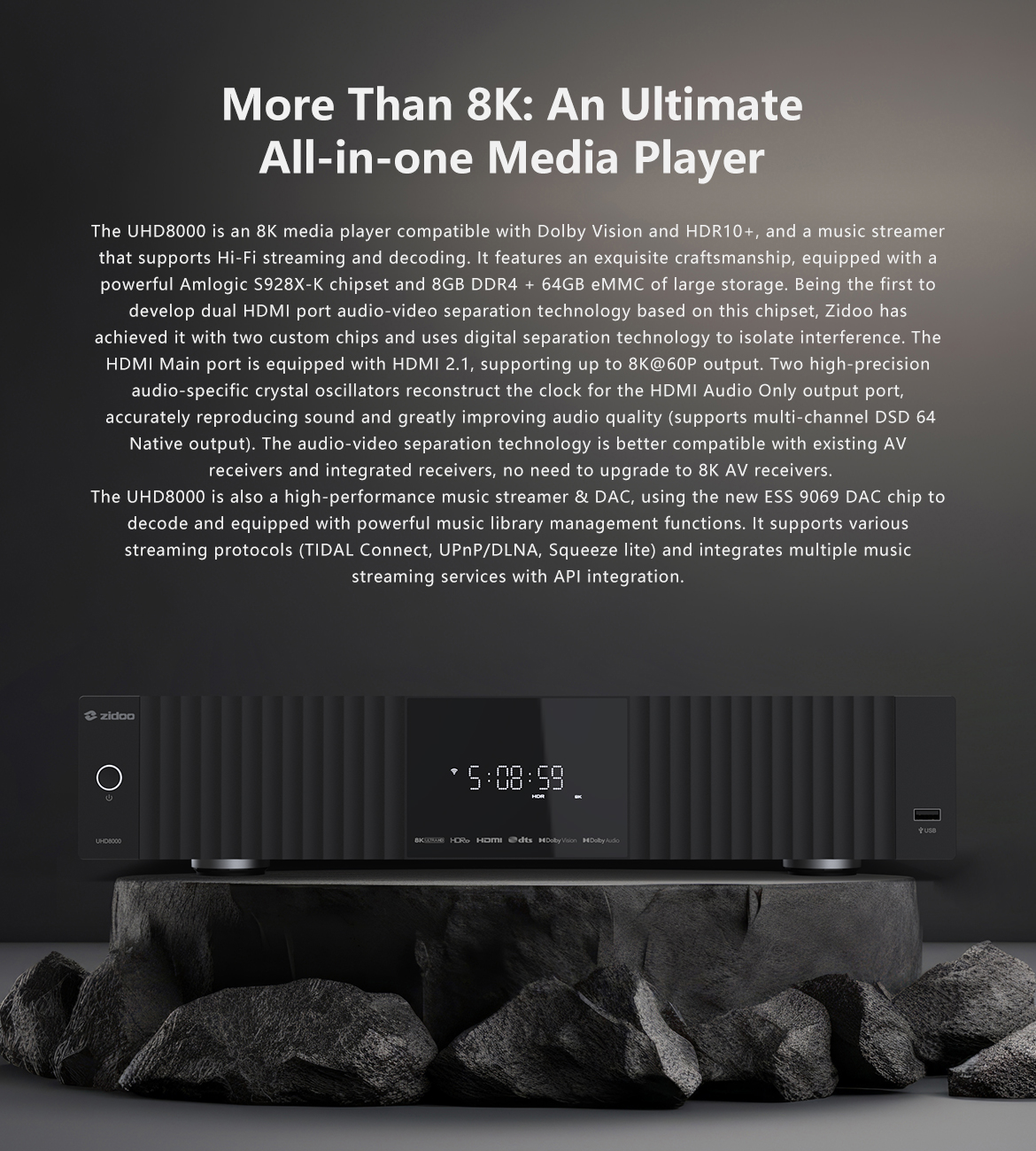

ZIDOO UHD8000 High Performance Hi-end DAC Audio Decoder 8K All-in-one Media Player HiFi Streaming Support APP Control

ZIDOO UHD8000 High Performance Hi-end DAC Audio Decoder 8K All-in-one Media Player HiFi Streaming Support APP Control

Features:
- 430mm standard size, excellent texture with all-aluminum alloy brushed panel, frosted upper cover, thickened bottom and shockproof foot pad.
- New generation Amlogic S928X-K 64-bit penta-core A76 + A55 high-performance multi-functional processor.
- 8GB DDR4 RAM + 64GB eMMC storage, 64-bit memory bandwidth, providing exceptional system smoothness.
- XMOS + ESS9069Q DAC, supports decoding DSD512/PCM768KHz 32Bit.
- Supports SACD ISO, DSF, DFF, WAV, FLAC, etc.; supports gapless playback and CUE track playback.

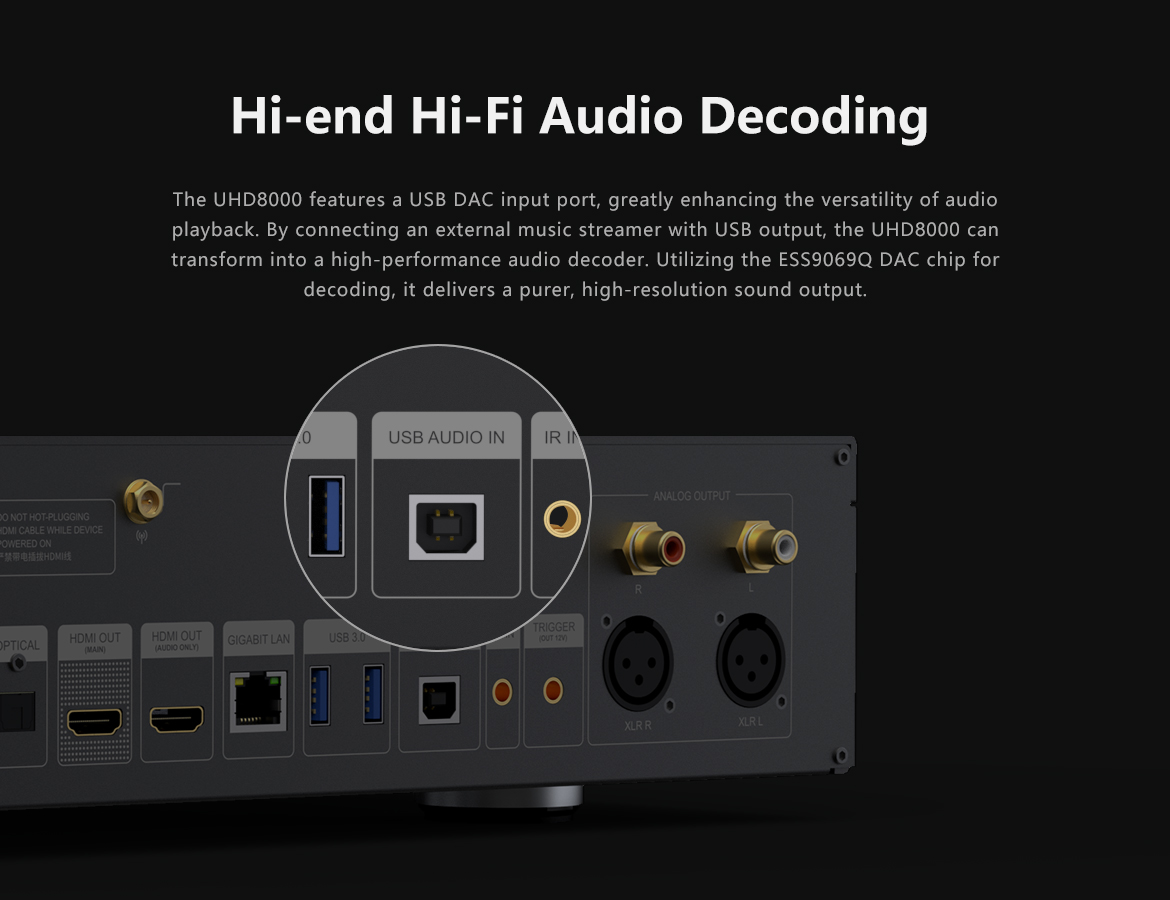

- Supports USB DAC input (good as high-end decoders), compatible with Windows 10/11, MAC OS, and Android systems.

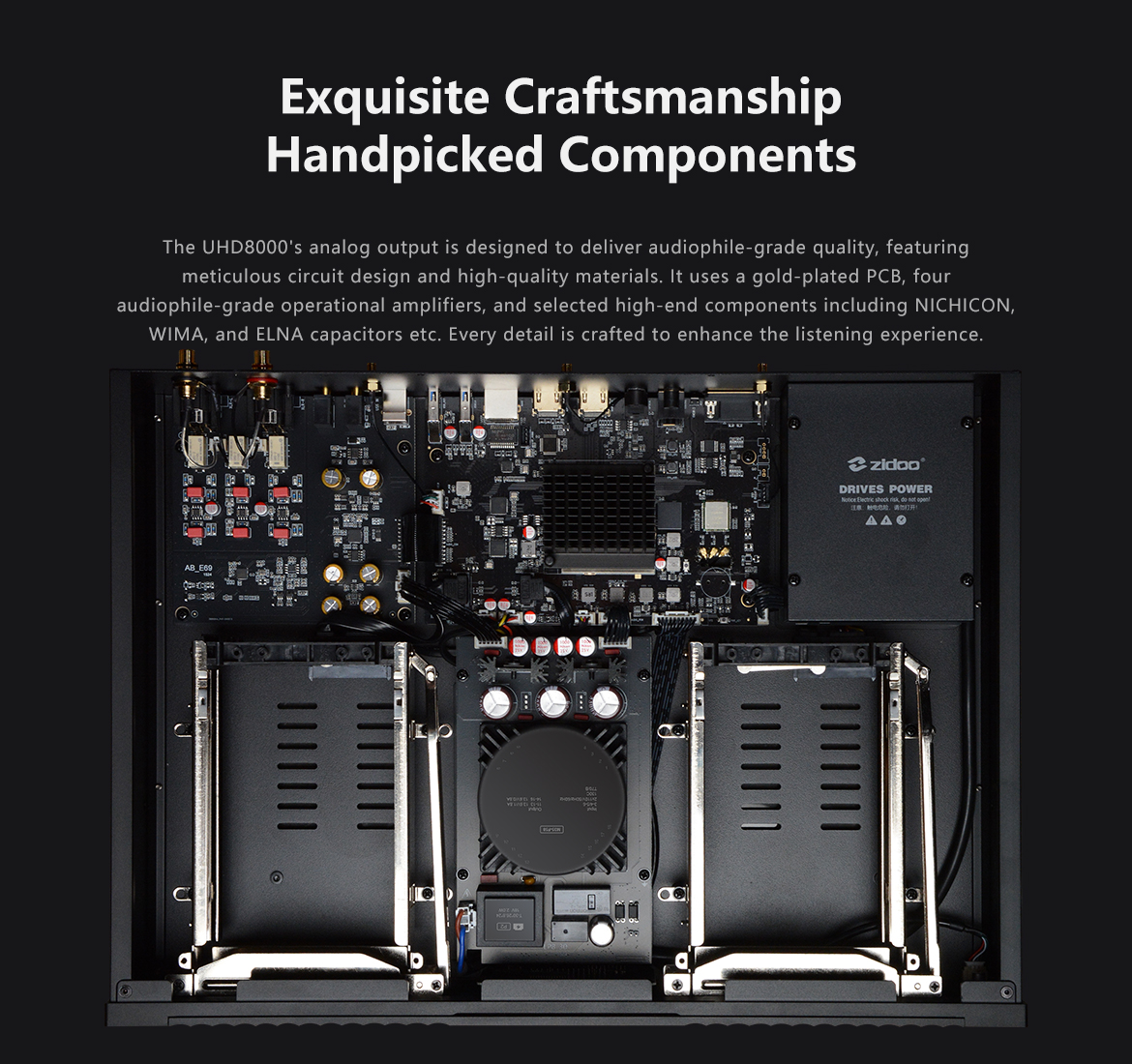

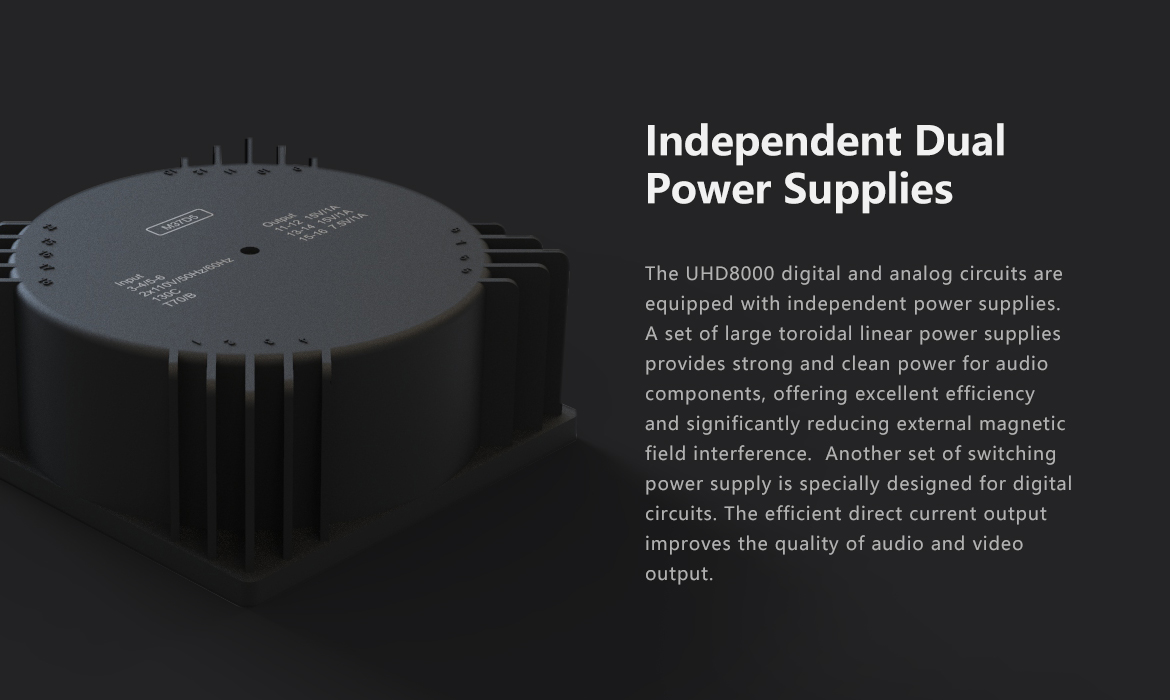

- High-quality switching power supply + large toroidal linear power supply, which is specially designed for audio and video circuits independently to ensure strong power source and good signal output.

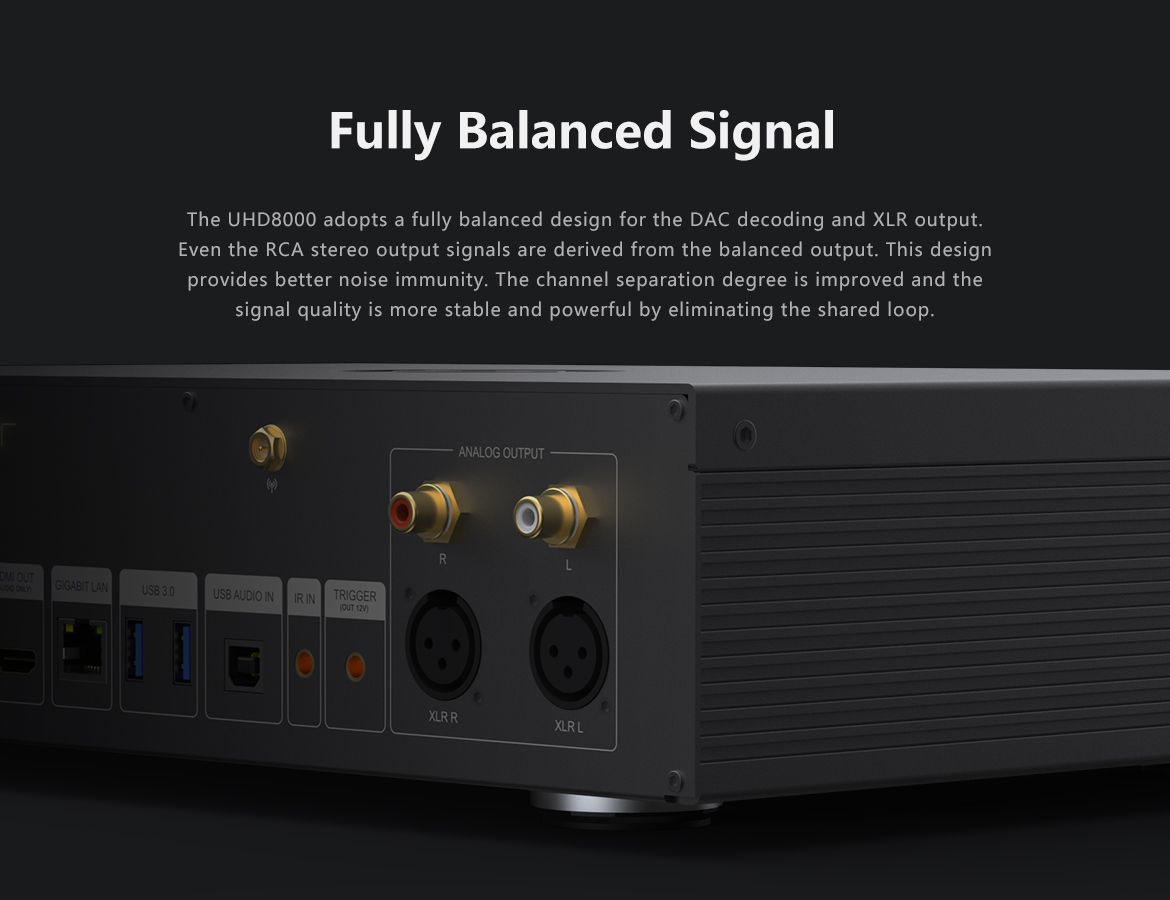

- High-fidelity audio decoding output through XLR fully balanced and RCA analog audio port.

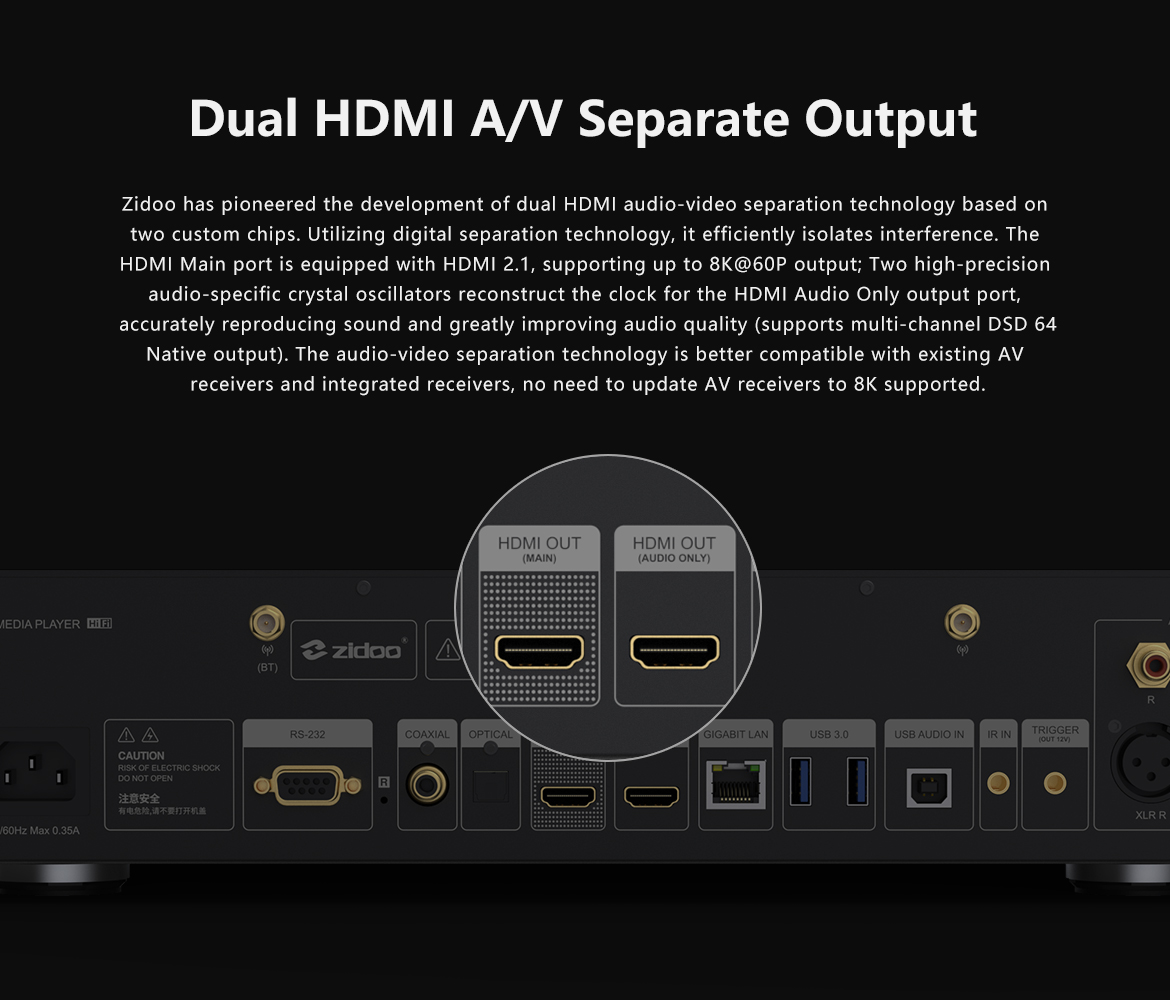

- Dual HDMI-compatible audio and video separate output can enjoy 4K video and HD audio at the same time without upgrading AV receiver.
- Smooth Android 11 OS significantly improved system performance and stability.
- Large LED display panel, dual hidden NSS patented HDD bays and each HDD bay support capacity up to 16TB.
- HDMI-compatible 2.1 supports 8K 60Hz point-to-point output, supports HDR (HDR10/HLG/HDR10+/Dolby Vision).

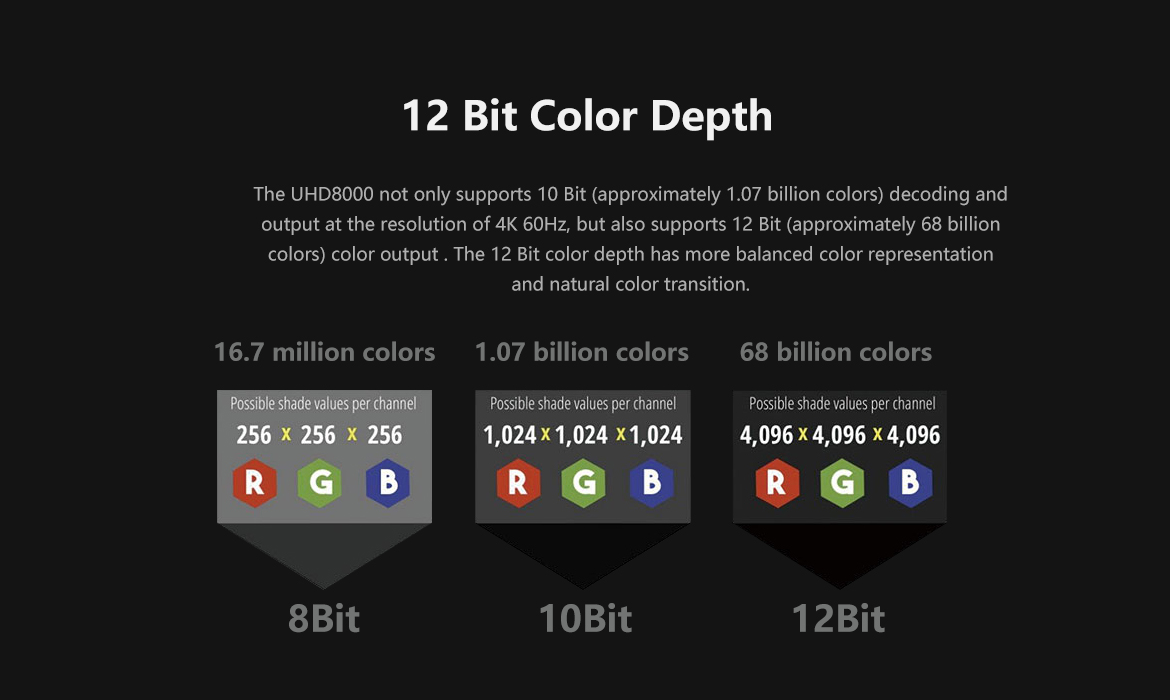

- Supports AV1/VP9/H.265/AVS3/AVS2 video codecs, 12-bit, BT.2020 wide color range; supports Atmos/DTS X audio pass-through output.
- Built-in VS10 image quality engine is highly customizable, significantly improving image quality by custom mapping different video modes.
- Processing HDR10 static metadata (MaxFall, MaxCll) more accurately which shows higher brightness and deeper darkness level.
- Supports acquiring and processing HDR10+ dynamic metadata, colors and brightness are processed frame by frame and scene by scene.
- Automatic frame rate 23.976 and resolution switching output ensures smooth movie playback without interruption (supports local playback and online streaming).
- Supports external BD/DVD (unencrypted)/CD discs playback and CD ripping.

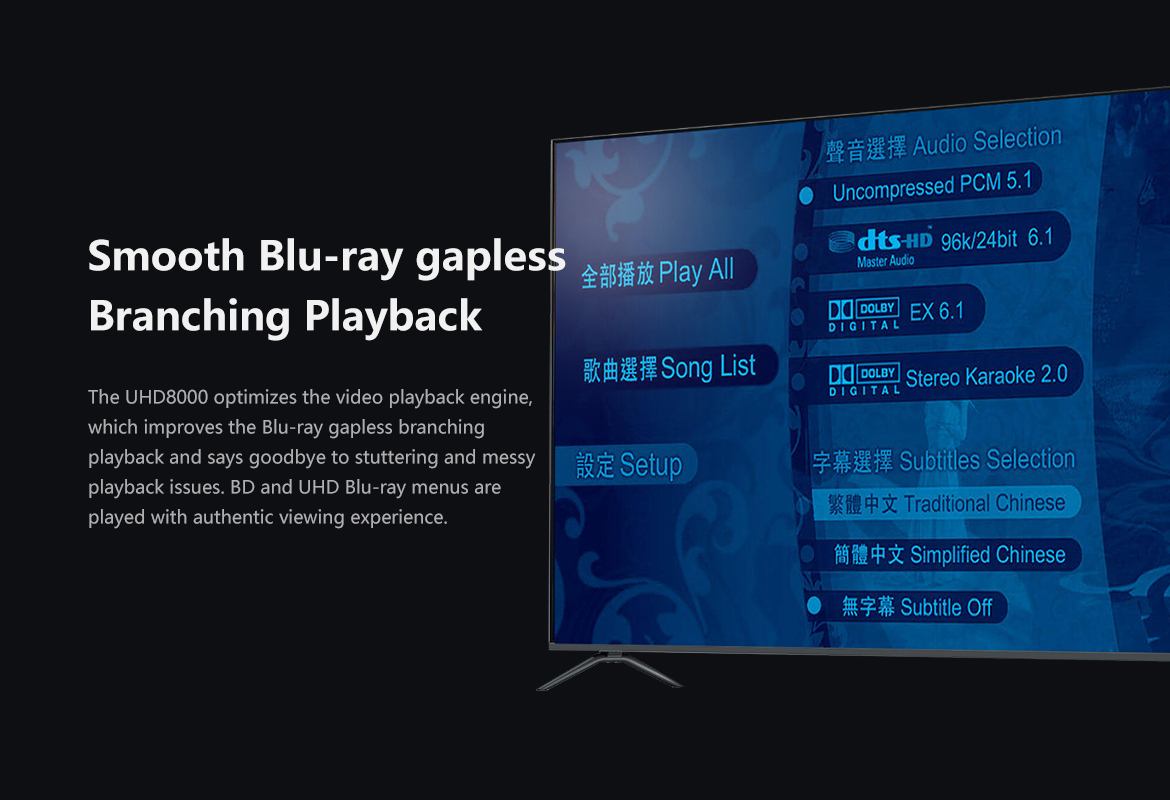

- Supports BD/UHD Blu-ray menu playback and gapless branching playback of Blu-rays with complex MPLS structure.

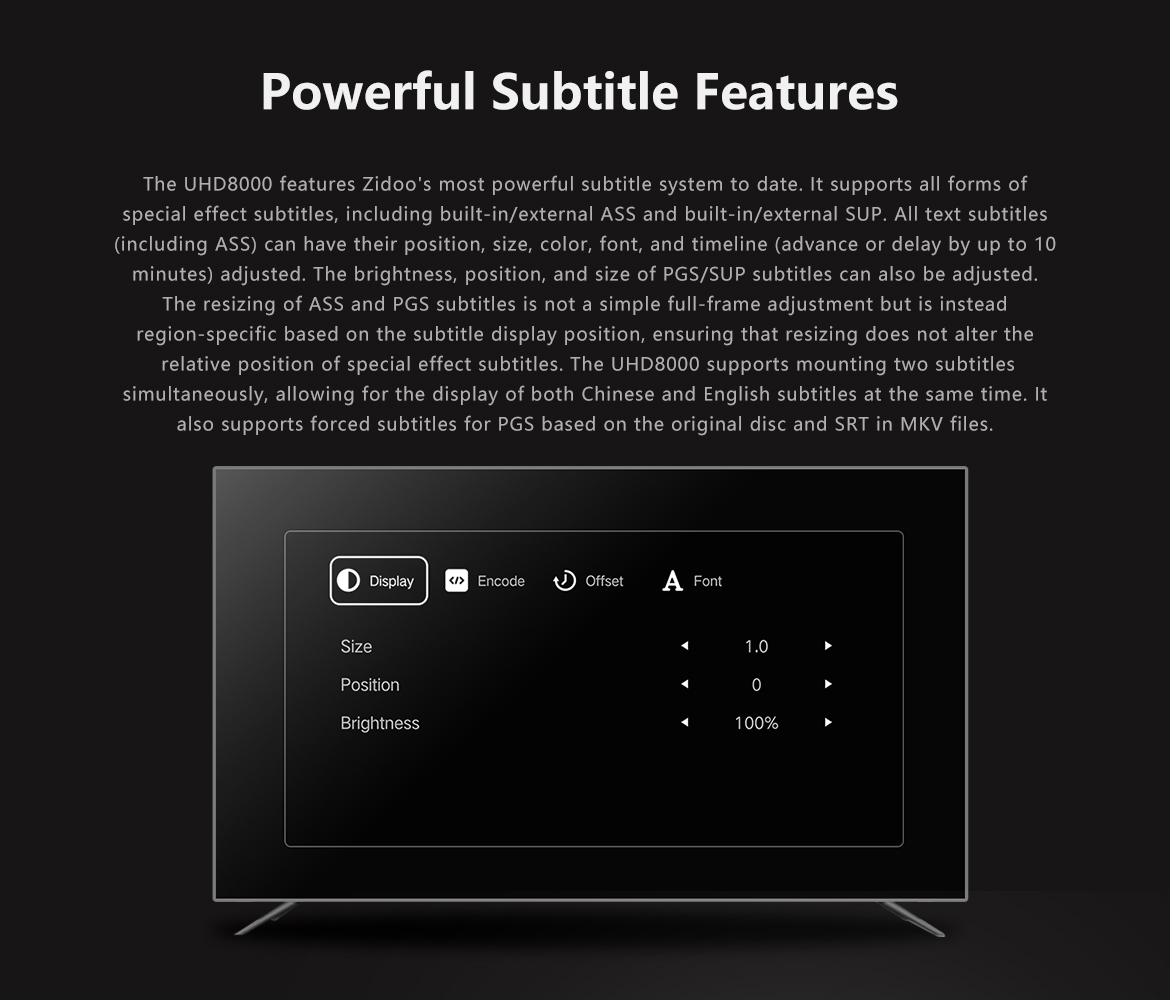

- Graphics special effects subtitles are supported and subtitles brightness can be adjusted. Subtitles can be downloaded. Zidoo is the only one among the field to support Blu-ray and MKV dual forced subtitle.

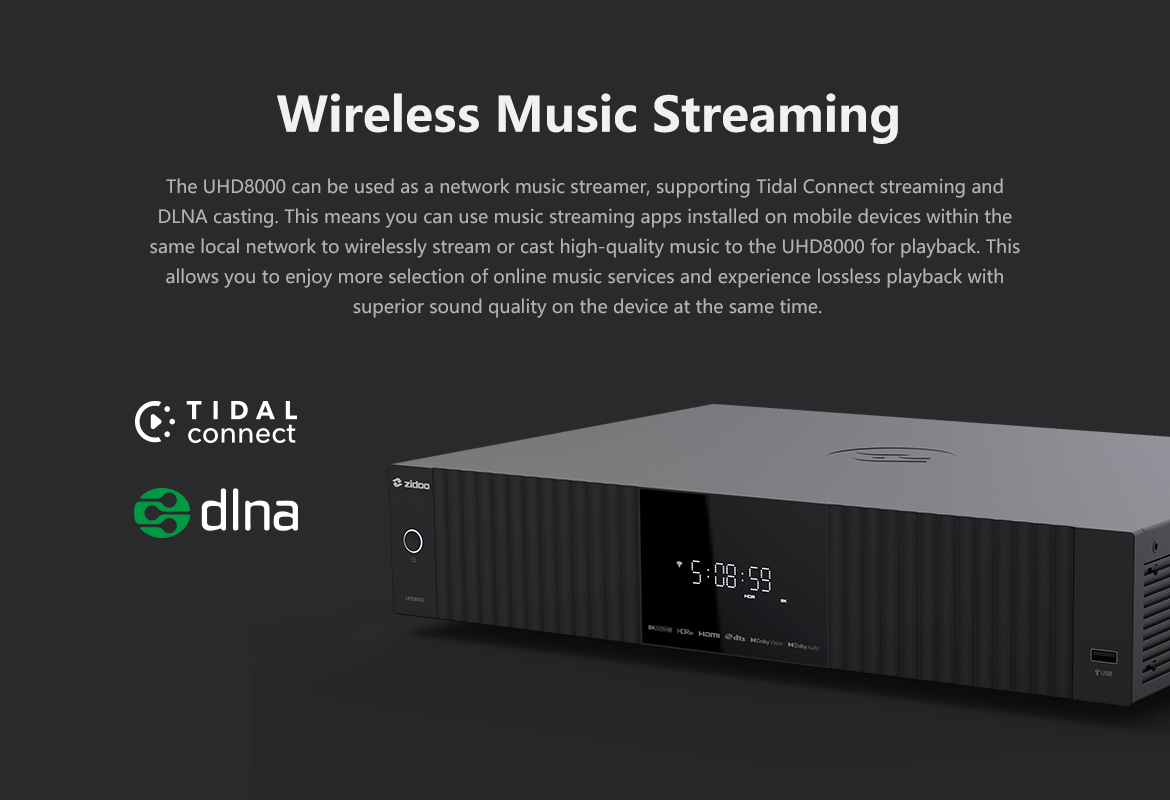

- Supports multiple music streaming methods, such as DLNA, Tidal Connect, etc.

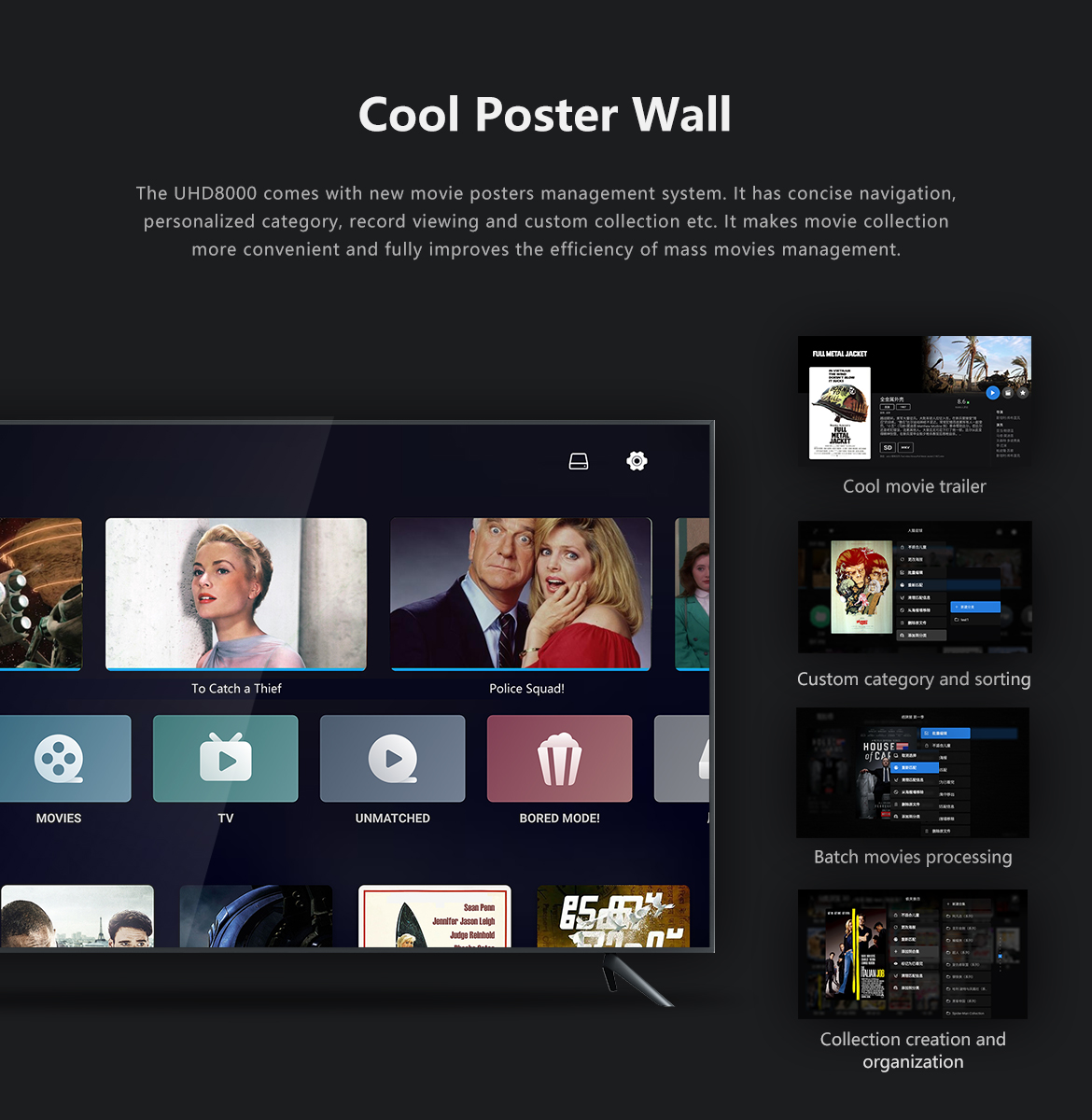

- New Poster Wall 4.0 supports movie trailers and user-friendly custom classification and management.

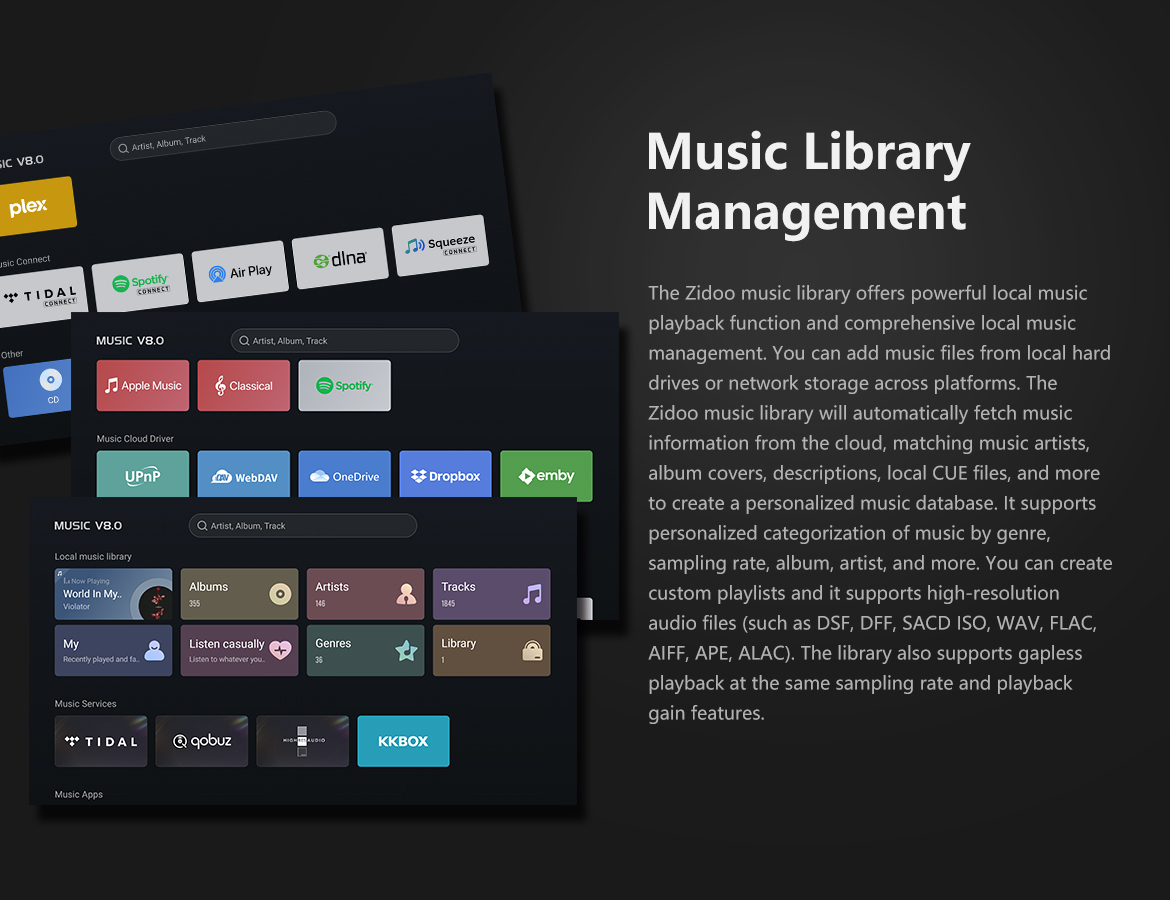

- Upgraded music player 8.0 with brand new UI main interface, supports lossless playback and decoding, personalized settings, song data matching.
- Supports HDMI-compatible CEC control, RS232 control, Control 4, seamless integration into smart home.
- Supports the exclusive Zidoo Controller APP for iOS and Android mobile phones, iPad landscape mode and Android tablet landscape mode, which can seamlessly play and control Zidoo media players.
- Supports access to network protocols like NFS, SMB v1/v2/v3, UPnP, Web DAV, and built-in SMB service.

Specification:
- Model: UHD8000
- Display screen: LED
- Chassis material: aluminum alloy
- OS: for Android 11
- CPU: for Amlogic S928X-K ARM Cortex-A76 + Cortex-A55 (Penta-core)
- GPU: ARM Mali-G57 MC2
- Storage: 8GB DDR4 + 64GB eMMC
- Bluetooth: BT 5.2
- WI-FI 6: 2.4G + 5G dual-band Wi-Fi, 802.11 a/b/g/n/ac/ax 2T2R , 802.11ax MIMO OFDM
- Ethernet: RJ-45 Ethernet jack (10/100/1000Mbps) x 1
- HDMI-compatible output (Main): HDMI-compatible 2.1a, supports up to 8K at 60p, HDR10+, 12Bit color depth, BT2020 wide color range; Supports HDR10, HDR10+, HLG, for Dolby Vision; Supports for Dolby Atmos and DTS X audio pass-through
- HDMI-compatible output (Audio Only): HDMI-compatible separate audio and video output, supports for Dolby Atmos and DTS X audio pass-through, as well as multi-channel PCM and DSD output
- Video decoding: 8K at 60p AV1/VP9/H.265/AVS3/AVS2; HDR10, HDR10+, HLG, for Dolby Vision
- Audio decoding: supports for Dolby/DTS format (up to Dolby TrueHD Atmos and DTS X) decoding, equipped with XMOS + ESS9069Q, supports up to PCM 768kHz at 32Bit, DSD 512 decoding
- Streaming: supports for DLNA/Squeeze lite/TIDAL connect streaming (supports TIDAL Connect ATMOS streaming) integrates a wide range of music streaming services
- USB audio input: supports for Windows 10/11, Mac system, Android system, supports up to 2-channel DSD512, PCM 768KHz at 32bit PCM decoding
- Audio output: USB output, optical output x 1, coaxial output x 1, RCA L/R channel output x 1, XLR L/R channel balanced output x 1
- Analog audio characteristics:
  Frequency range: 20Hz-20KHz +/-0.15dB
  SNR: >123dBrA
  THD+N: <0.00015%
  Output level: (XLR) 4.2Vrms. (RCA) 2.1Vrms.
  DNR: >123dB
  Crosstalk: 135dBrA
- Intelligent control: APP control for iPhone, iPad landscape mode, Android phone, Android tablet landscape mode, RS-232, TCP/IP control (supports WOL)
- SATA: Two built-in 3.5'' HDD bays with SATA 3.0 specification (HDDs not included)
- USB: USB 3.0 x 2, USB 2.0 x 1
- Power supply: AC 110 ~ 120/220 ~ 240V, 50/60Hz
- Other interfaces: infrared receiver x 1, RS232 x 1, Trigger Out 3.5 headphone jack x 1, IR IN 3.5 headphone jack x 1
- Dimensions: 430mm x 312mm x 80mm
- Product weight (excluding accessories): 5.9kg

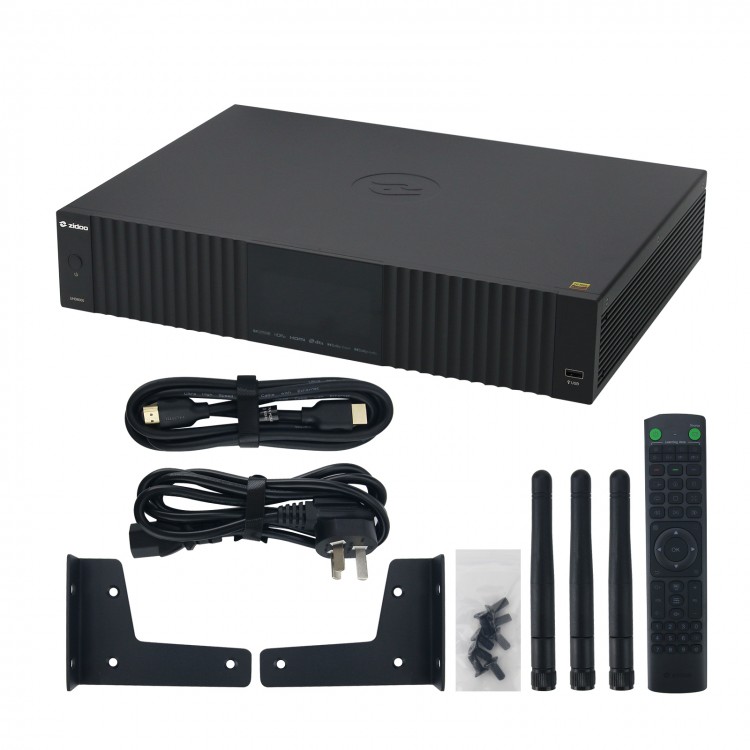

Package Included:
- 1 x Host
- 1 x Remote Control
- 1 x Power Adapter
- 1 x HDMI-compatible Cable
- 3 x High Gain Antennas
- 1 x User Manual
