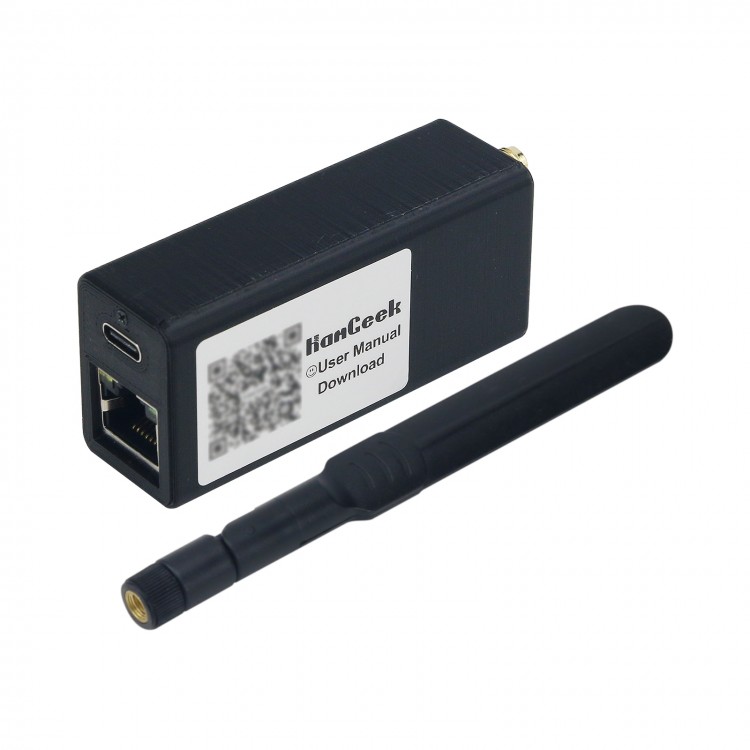

Zigbee 3.0 Coordinator Router Zigbee Gateway w/ LAN Port of HamGeek CC2652P Module For Zigbee2mqtt

Zigbee 3.0 Coordinator Router Zigbee Gateway w/ LAN Port of HamGeek CC2652P Module For Zigbee2mqtt

Description:
This is a Z2M wired LAN port gateway zigbee2mqtt
Using the strongest cc2652p chip + LAN port, its performance is stable. It eliminates the problem of packet loss and disconnection of wifi solution. It is more flexible to place the router. There is no need to be restricted by location like the usb interface. This solution can be equipped with modules to support poe, z2m and zha at the same time, and the external antenna signal is super strong. Plug and play, get IP automatically.

CC2652P zigbee wired gateway with LAN port, compatible with z2m zha
The zigbee chip of this gateway is upgraded to the latest cc2652p. The chip is the strongest zigbee chip for TI in zigbee networking, outperforming cc2530 and cc2538 in stable wired connection.

After tests, the gateway can access to about 200pcs sub-devices, with stable working performance. Better than gateways for Xiaomi (up to 30pcs or so of sub-devices), cc2530/2531 and other gateways.

Support for homeassistant, nodered, iobroker, etc. Supports for Synology and compatible with thousands of zigbee devices of most brands on the market, as well as for ZHA in Home Assistant and Tasmota. Suitable for placing your coordinator in the center. Through a stable Ethernet connection, don’t worry about disconnecting! USB pass-through is not required when using HA in a VM environment.

You can use the hardware by Koenkk (Koen Kanters) https://github.com/Koenkk/Z-Stack-firmware/tree/master/coordinator or by Egony (Alex Egony) https://github.com/egony/cc2652p_E72 -2G4M20S1E/tree/master/firmware/coordinator. Use Egony's coordinator firmware by default. Example of port writing in zigbee2mqtt configuration file: port://deviceip:5000

Package Included:
- 1 x Set of Router

Note:
- POE module needs to be purchased separately.
