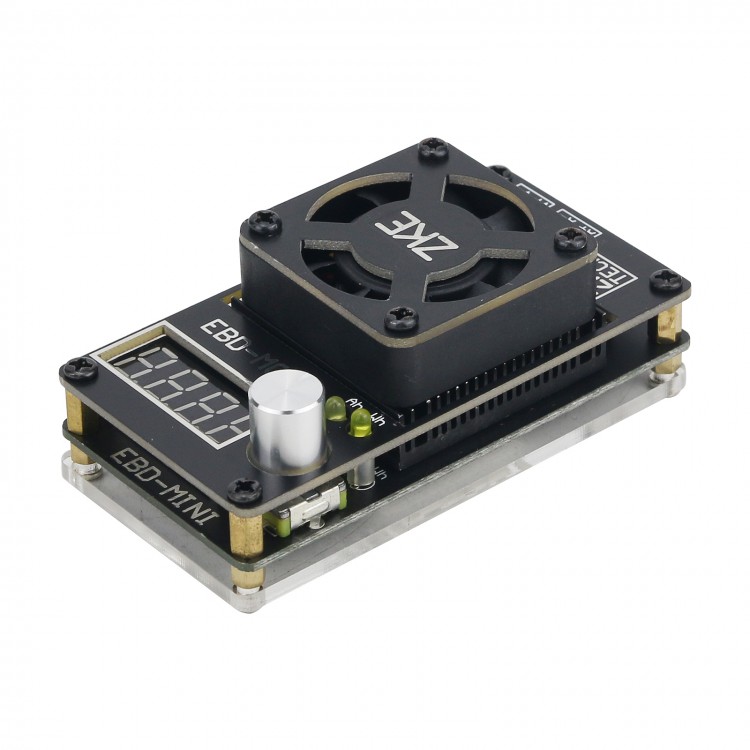

ZKE EBD M05 Electronic Load Tester Battery Capacity Power Bank Test 19.5V 5A 30W

ZKE EBD M05 Electronic Load Tester Battery Capacity Power Bank Test 19.5V 5A 30W

 1. Features

    1.1 Battery Capacity Test
    This tester is designed for discharging of a wide range of batteries, including NiMH, NiCd,
    LiPo, LiFe and Pb, as well as the capacity test.
    1.2 Portable Power Bank Test
    This tester supports charging and discharging of portable power banks, as well as capacity test.
    1.3 Power Performance Test
    This tester supports performance and aging tests of various kinds of DC power supplies.

2. Specifications

    1) Power Supply: MicroUSB cable (5V)
    2) Voltage Range: 0.1-19.50V (cut-off voltage can be set according to specific needs)
    3) Current Range: 0.05-5.00A (maximum power is 30W, current will be restricted when the power reach over 30W), discharging current can be set according to specific needs
    4) Test Modes: Constant Current Discharging (CC), testing will automatically stop when voltage reaches the set cut-off value.
    5) Data Display: Four digital tube which can show testing data such as voltage, current, capacity and energy.
    6) PC Connection: Micro USB cable.

3. Connecting Pattern

    3.1 Testing Ports
    The tester has four jacks which connect with M+/A+/A-/V+/V-. A+ and A- ports are connected with the positive and negative poles of the test objects, working as the current channel in discharging. V+ and V- ports are connected with the positive and negative poles of the test objects, working as the voltage channel in voltage tests. This way of using four individual cables will help eliminate the effect of wires on the test result and improve the test precision.
    3.2 PC Connection:The tester can be connected with a computer through a Micro USB cable.
    3.3 Input Power:The tester will work on the power supplied through Micro USB port.

 4. Display and Setting

    4.1 Buttons
    There is a setting knob (rotate to left/right and press) on the tester.
    4.2 Operation Display
    The tester can show voltage, current, capacity (led display red) and energy (led display green)during working. You can switch to different data by rotate knob.
    Voltage display: Automatically switch between 0.00V to 00.0V
    Current display: 0.00A
    Capacity display: Auto switch between 0000 and 00.00. The unit of measurement is mAh in 0000 mode, and Ah in 00.00 mode.
    Energy display: Auto switch between 0000 and 00.00. The unit of measurement is mWh in 0000 mode, andWh in 00.00 mode.
    Press knob to start test under testing mode and press again to stop test.
    You can open setting mode by pressing knob for 2 seconds in the stop state (This function is invalid when the tester being connected with the PC software).
    4.3 Setting Display
    In setting mode, the value to be set will shine. Press knob to switch to the value you want to change and rotate knob to set the value.
    First set the discharging current: you can set the value of every digital.
    Second set the cut-off voltage: testing will automatically stop when the testing voltage reaches below this value.
    It will go back to the limit value if your setting exceeds the allowed range.
    After finishing setting, press knob for several seconds to return to testing mode.



 5. Precautions

    1) Positive and negative connections should not be reversed.
    2) Always use the tester within the allowed range.
    3) PC connection software: EB Tester Software,and English manual will send by email if you need.

Package list:
- EBD-M05 Load Tester * 1
- Manual and software will send by email if you need. It is in English.
