ZLG CANCOM-1000IE+ High Performance RS232/485/422 Serial Port to CAN Bus Converter Module 9-26V 5Kbps-1Mbps

ZLG CANCOM-1000IE+ High Performance RS232/485/422 Serial Port to CAN Bus Converter Module 9-26V 5Kbps-1Mbps

Description:

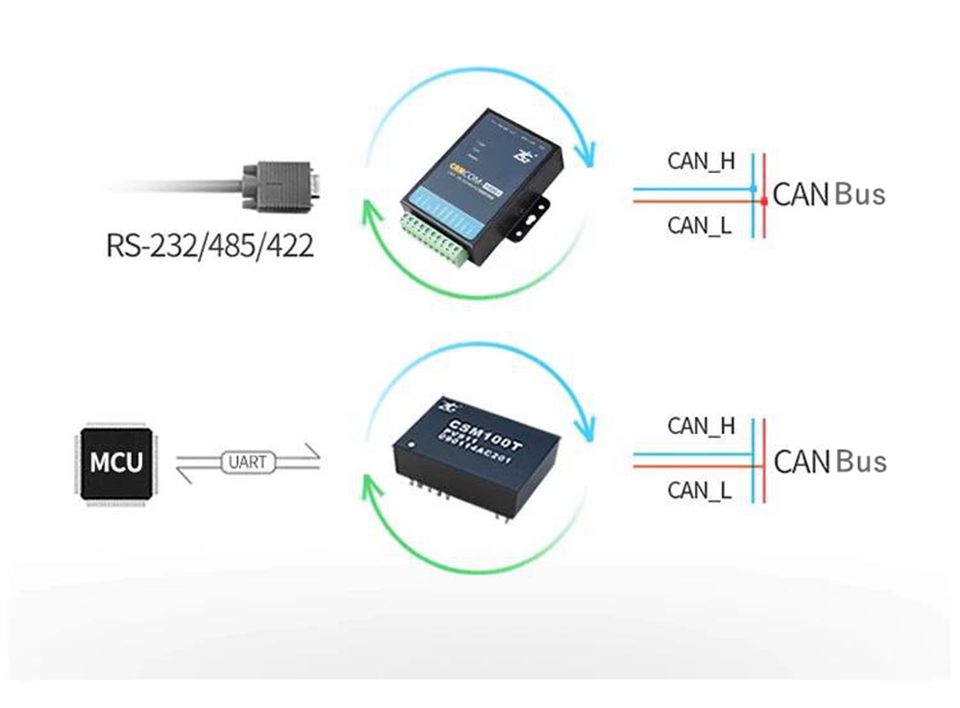

- ZLG CANCOM-100IE+ is a three-in-one industrial-grade intelligent protocol converter, which can quickly connect RS-232/485/422 communication equipment to CAN-bus field bus to realize two-way communication.
- Support 600 ~ 230400bps serial port rate, 5Kbps ~ 1Mbps CAN-bus communication rate.
- The converter provides three data conversion modes: transparent conversion, transparent label conversion, format conversion, to meet the needs of different customers.
- The interfaces are all industrial-grade design, and the CAN interface comes with a magnetic coupling isolation module to avoid damage due to ground circulation.
- Strong anti-static and surge capability, so that it can be used in harsh environments.

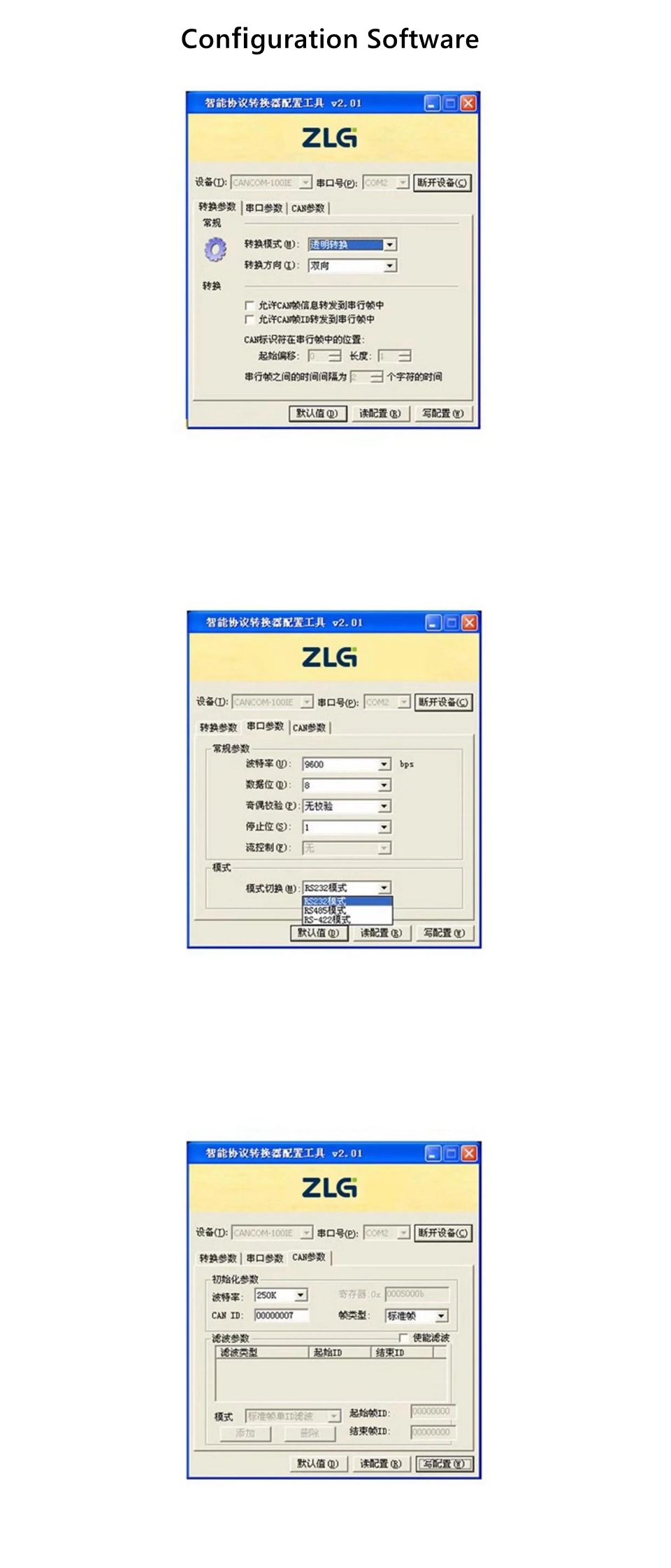

- The converter provides serial port configuration software, which can flexibly set the operating parameters of CANCOM-100IE.
- Various operating parameters can be flexibly set under Windows 98/Me/NT/2000/XP/WIN7/WIN8/WIN10 operating systems.
- Application: It is widely used in high-speed railways, subways, healthcare, aerospace, building security, elevator control, weighing devices, and other occasions.

Features:
- The CAN baud rate can be programmed and set arbitrarily, with a range of 5Kbps to 1Mbps.
- Integrate one 3-wire RS-232 communication interface, one 2-wire RS-485 communication interface, and one 4-wire RS-422 communication interface. The working mode of the converter can be set through configuration software. The communication speed can be set between 600 ~ 230400bps.
- The CAN protocol fully complies with the CAN 2.0B specification, is compatible with CAN 2.0A, and complies with ISO11898-1/2. Users can select CANBridge-1054 to support the fault-tolerant CAN standard of IS011898-3.
- 2-channel 2500VDC electrical isolation CAN interface, electrostatic level contact discharge ± 8KV, can be used in environments with safety and explosion-proof requirements.

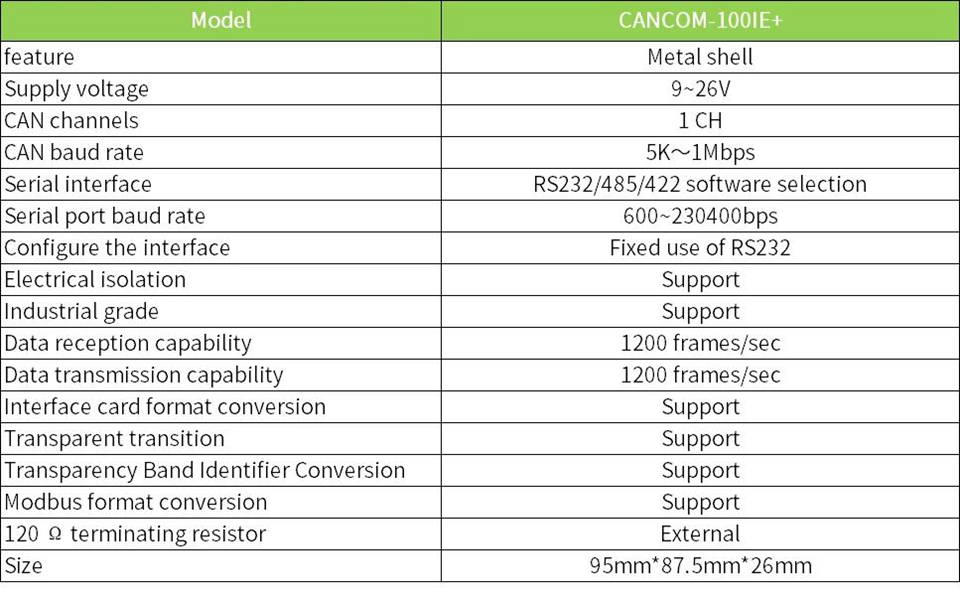

Specification:

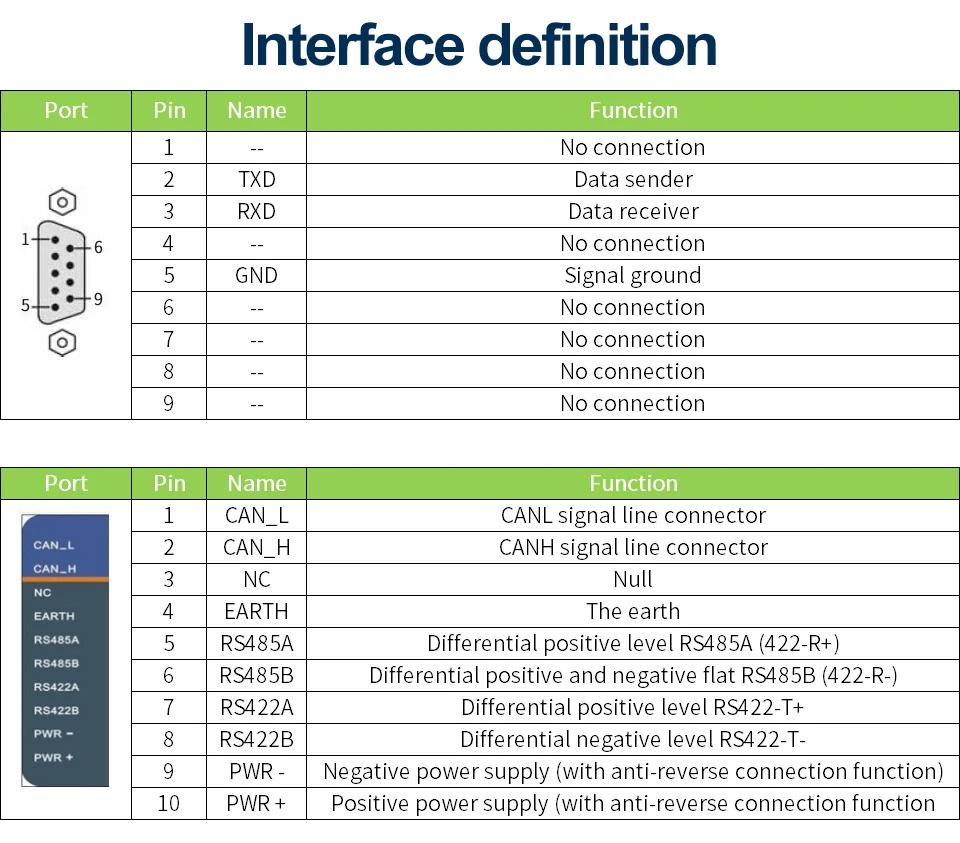

- CAN interface: using OPEN2 interface mode (CANH, CANL)
- RS-232 interface: Standard DB9 interface mode (TXD, RXD, GND)
- RS-485 interface: OPEN2 interface mode (RS485A, RS485B)
- RS-422 interface: OPEN4 interface mode (RS422T+, RS422T -, RS422R+, RS422R -)
- The CAN channel adopts electromagnetic isolation, DC/DC power isolation, and isolation voltage: 2500VDC
- CAN interface EMC level: Contact discharge soil 8KV, group pulse soil 2KV
- Maximum frame traffic: A single channel can reach up to 1200 frames per second (1M baud rate, standard data frames)
- RS485/422 channel adopts electromagnetic isolation, DC/DC power isolation, and isolation voltage: 2500VDC
- Supports both CAN2.0A and CAN2.0B protocols, compliant with ISO/DIS 11898-1/2/3 standards
- CAN baud rate: programmable and adjustable, ranging from 5Kbps to 1Mbps
- CANCOM-1001E+ integrates 1 x 3-wire RS-232 communication interface, 1 x 2-wire RS-485 communication interface, and 1 x 4-wire RS-422 communication interface. The working mode of the converter can be set through configuration software. The communication speed can be set between 600 ~ 230400bps
- CAN and RS485/422 interface terminals can be equipped with external 120 ohm terminal resistors
- Installation method: optional standard DIN rail installation or simple fixing method
- Can be used in environments with safety and explosion-proof requirements
- Working voltage: + 9V ~ +26V
- Working temperature: - 40°C ~ +85°C
- Storage temperature: -40°C ~ +85°C
- CANCOM-100IE+Physical dimensions: 95mm x 87.5mm x 26mm
- Installation method: Optional standard DIN rail installation or simple fixing method

Package Included:
- 1 x Converter
- 1 x RS232 Communication Cable
- 3 x 120ohms Resistor
