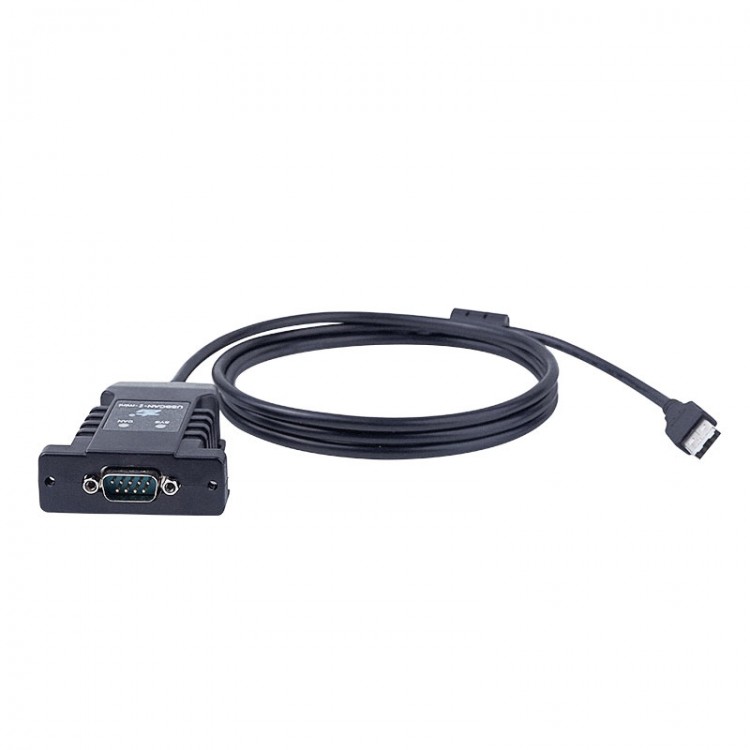

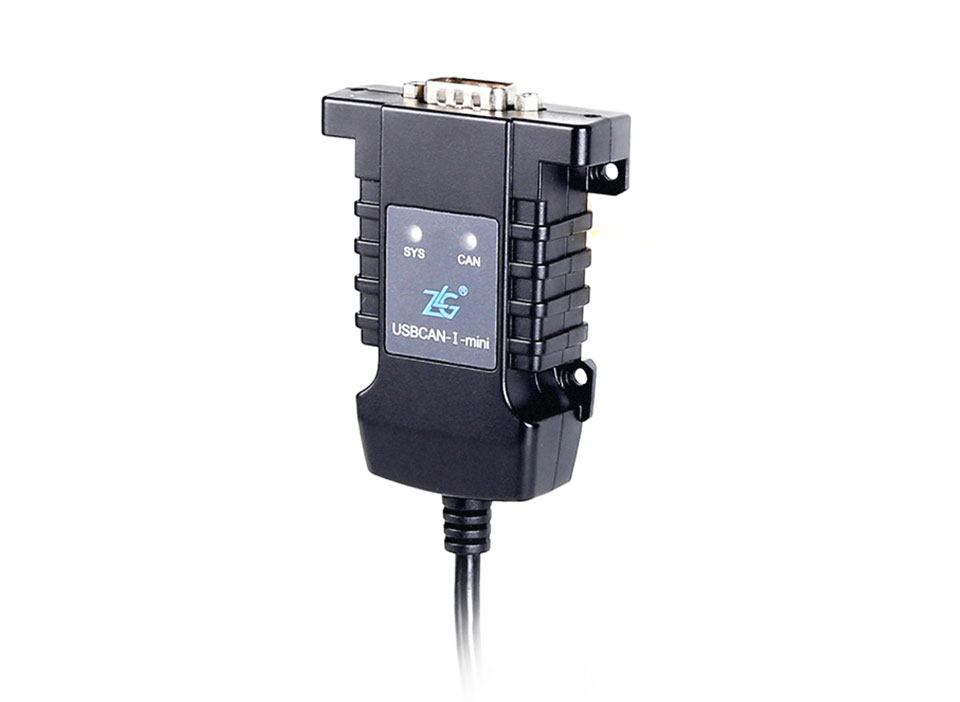

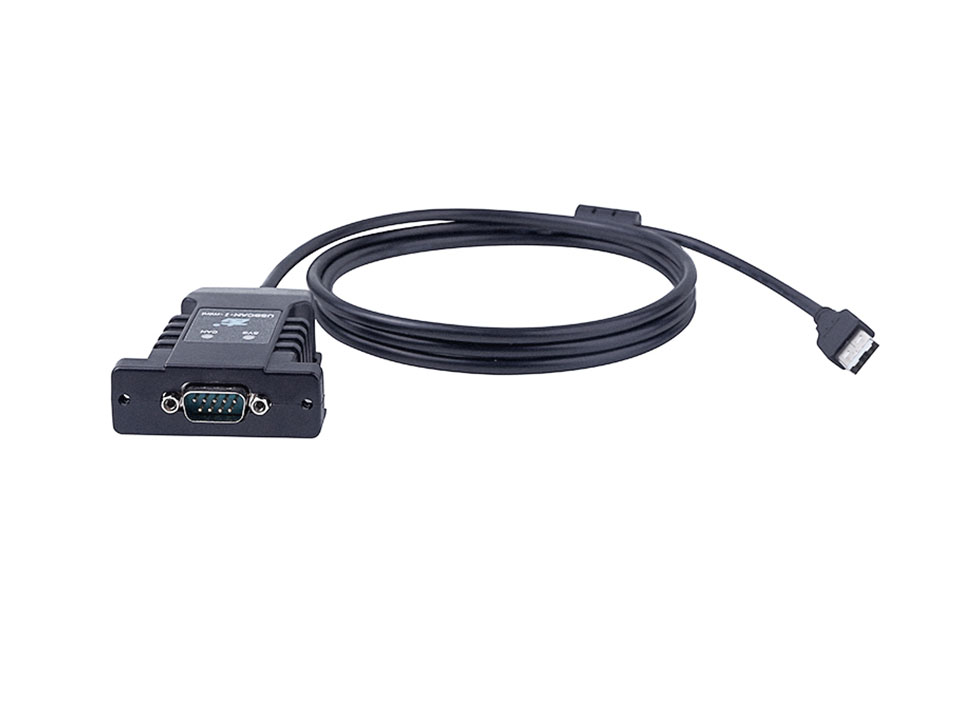

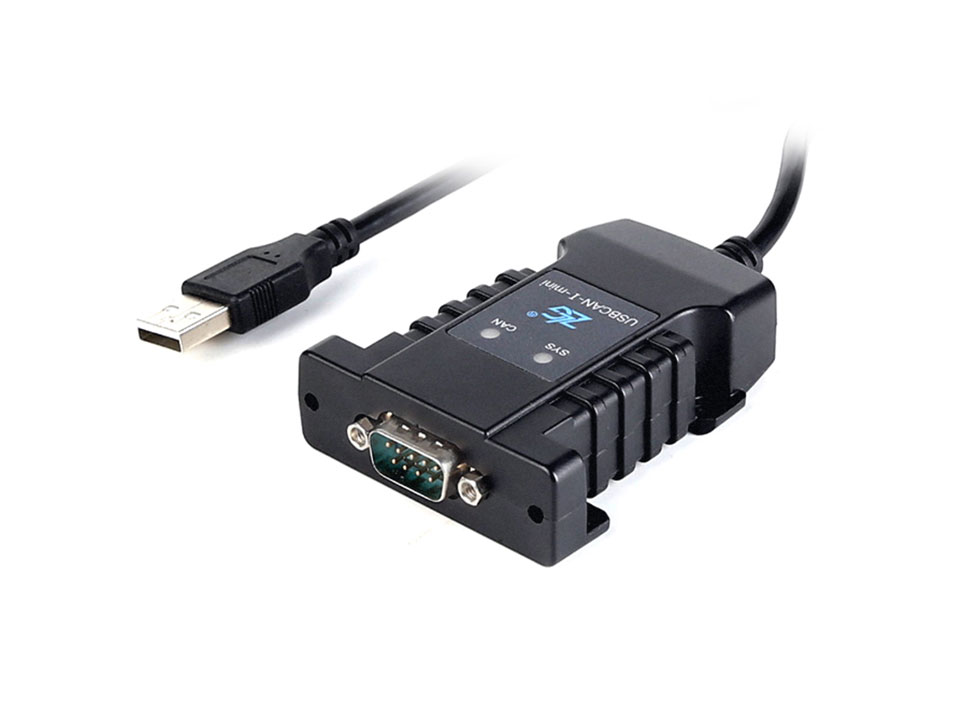

ZLG USBCAN-I-mini USB CAN Analyzer USB to CAN Adapter Portable CAN Interface Card for Linux System

ZLG USBCAN-I-mini USB CAN Analyzer USB to CAN Adapter Portable CAN Interface Card for Linux System

Description:
ZLG USBCAN series CAN interface cards are compatible with USB2.0 full speed specification and can support 1/2/4/8 channel CAN interface. Using this interface card, the PC can be connected to the CAN network through USB to collect and process CAN bus data. It mainly has the following advantages:
- Power supply mode: USB bus power supply, portable;
- PC interface: USB2.0 compatible with USB3.0 and USB1.1;
- Electrical isolation: DC 2500V or AC 1700V;
- Working temperature: -40℃ to +85℃;
- Number of CAN channels: 1-channel isolated CAN interface;
- CAN channel adopts electromagnetic isolation, DC/DC power isolation, isolation voltage: 2500VDC;
- Support CAN2.0A and CAN2.0B protocols at the same time, in line with ISO/DIS 11898-1/2/3 standard;
- Installation method: portable or simple fixed method;
- CAN interface EMC level: contact discharge ±8KV, group pulse ±2KV;
- Can be used in environments with safety and explosion-proof requirements;
- Maximum frame flow: single channel can be up to 14000 frames per second (1M baud rate, standard remote frame);
- CAN baud rate: programmable and set arbitrarily, the range is between 5Kbps ~ 1Mbps.

Package Included:
- 1 x USBCAN-I-mini with USB cable
- 1 x Product quality certificate
- 1 x After-sales service guide
- 1 x CD

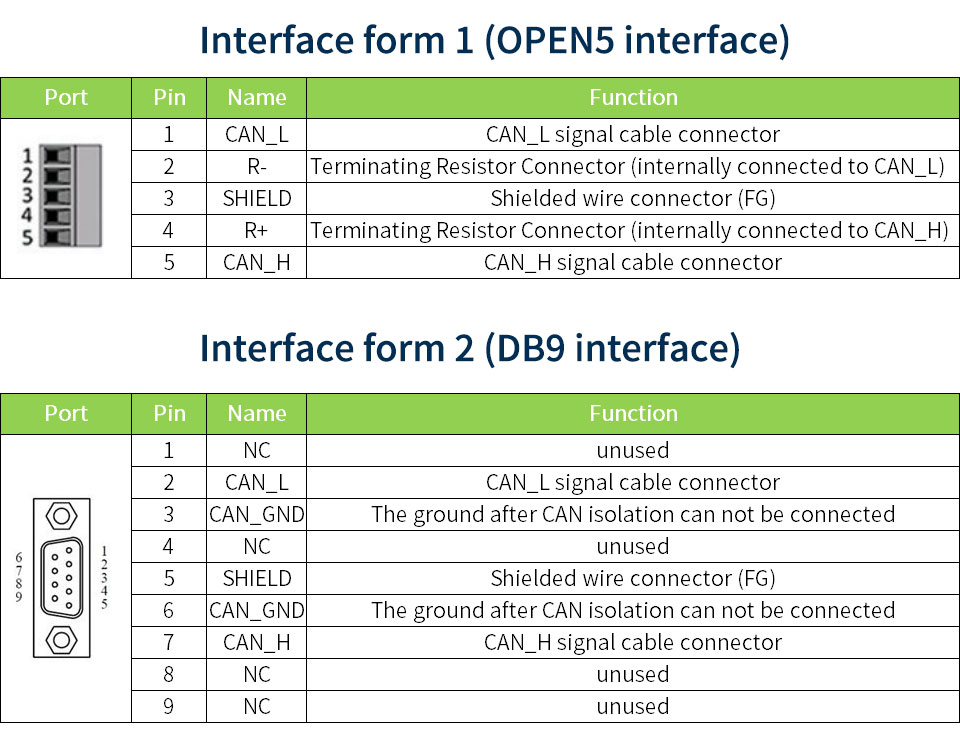

- 1 x DB9-OPEN5

Drivers and Software:
Download driver for Windows system:
USBCAN-E-mini: https://manual.zlg.cn/Public/Uploads/2020-10-05/5f7a97e009cb8.zip
USBCAN-I-mini: https://manual.zlg.cn/Public/Uploads/2020-10-05/5f7a941f214eb.zip

Download driver for Linux system:
USBCAN-I-mini: https://manual.zlg.cn/Public/Uploads/2021-03-31/6063ede8f3aa7.zip

Download ZCANPRO application software:
https://www.zlg.cn/data/upload/software/Can/CAN-bus-ZCANPRO_Setup.rar

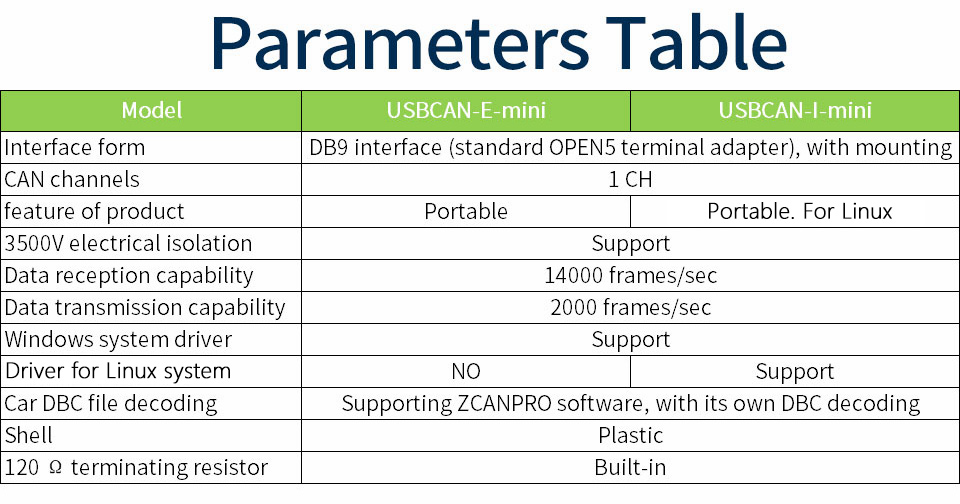

USBCAN-I-mini:
