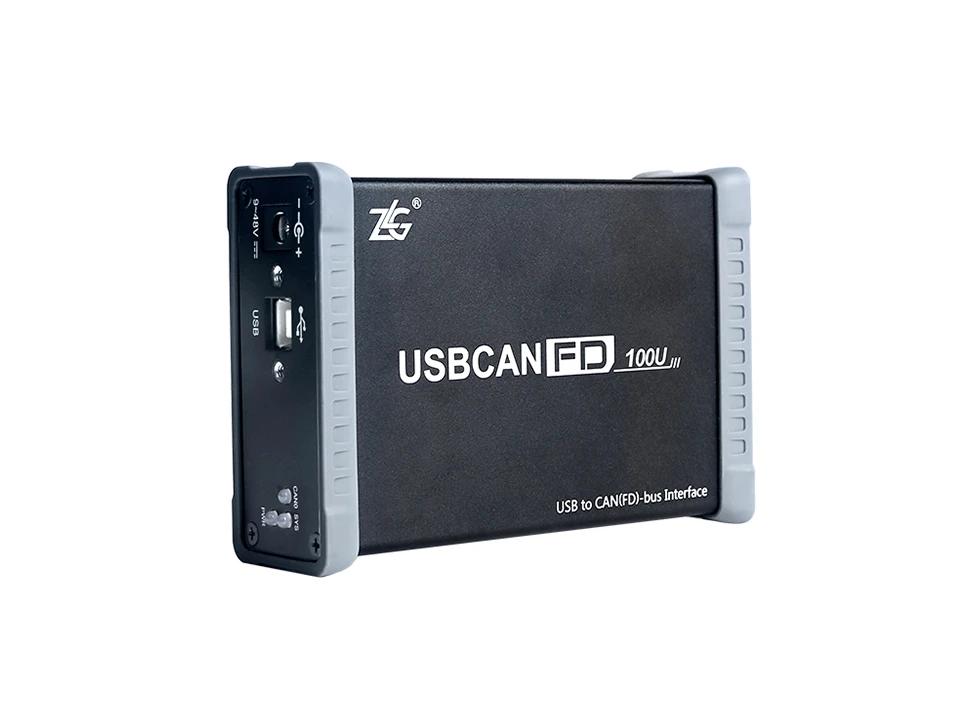

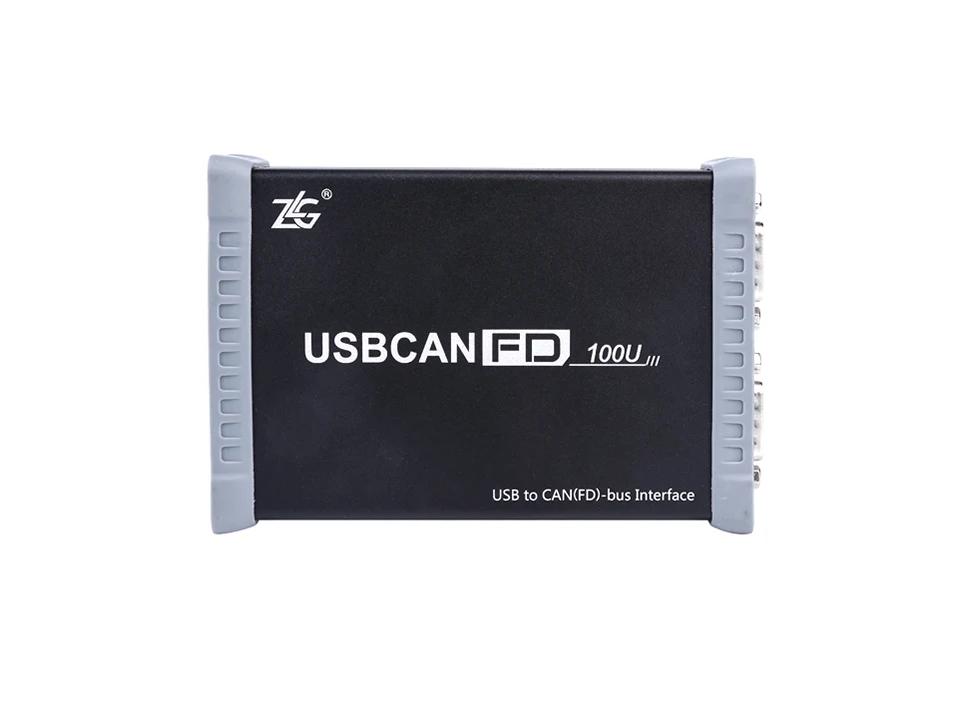

ZLG USBCANFD-100U Interface Card 2-Channel USB to CANFD Analyzer High Performance CANFD Converter

ZLG USBCANFD-100U Interface Card 2-Channel USB to CANFD Analyzer High Performance CANFD Converter

Description:
- USBCANFD series is a high-performance CANFD interface card. Integrate 1-2 CANFD interfaces, support ISO standard CANFD and Bosch CANFD standard. Each interface has an independent 2500VDC electrical isolation protection circuit, which can prevent the interface card from being damaged due to ground circulation and enhance the reliability of the system in harsh environments.

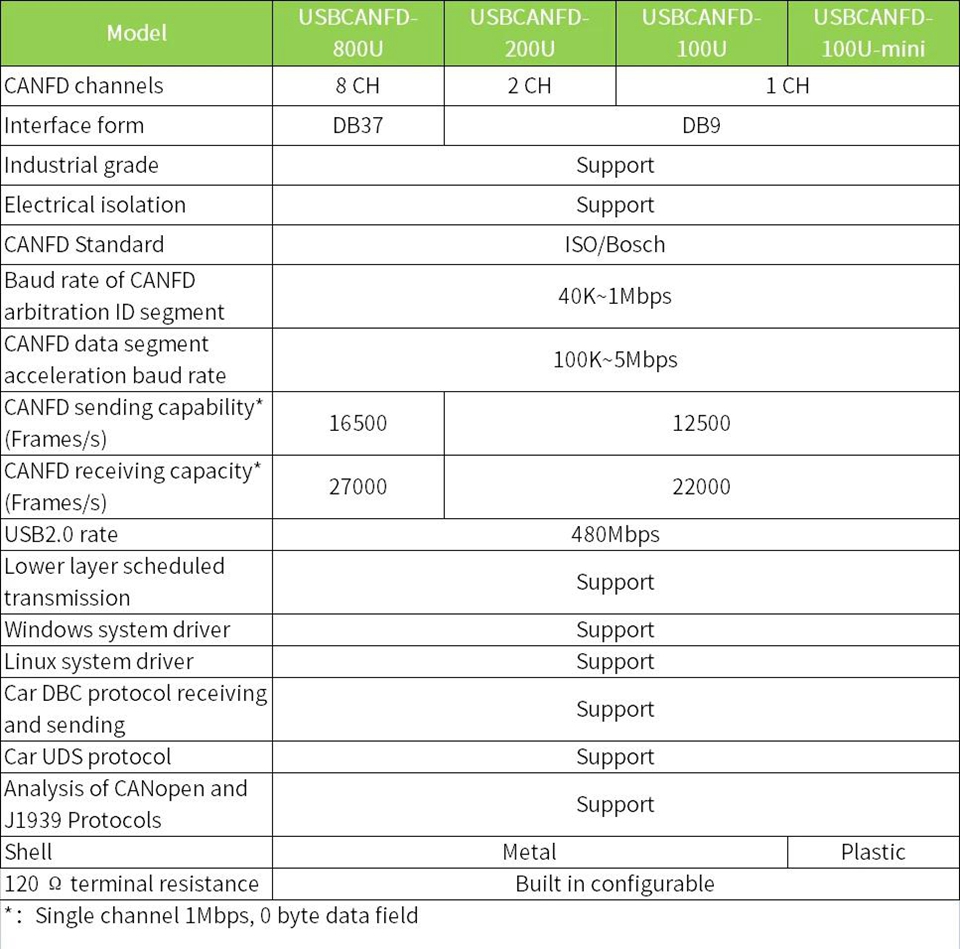

Features:
- PC complies with USB2.0 high-speed specification.
- Support CAN2.0A, B protocol, in line with ISO11898-1 specification.
- Integrated 1/2/8-CH CANFD interface.
- CANFD supports ISO standard and BOSCH standard.
- The baud rate of CAN communication can be freely programmable between 40Kbps~1Mbps.
- CANFD baud rate can be freely programmable between 100Kbps~5Mbps.
- The highest data flow of single-channel transmission: 3000 frames per second (remote frame, single frame transmission).
- Single-channel receiving maximum data flow: 10000 frames/second (remote frame).
- Each channel supports up to 64 ID filters.
- Each channel supports up to 100 timed sending messages.
- Built-in 120 ohm terminal resistance, which can be controlled by software.

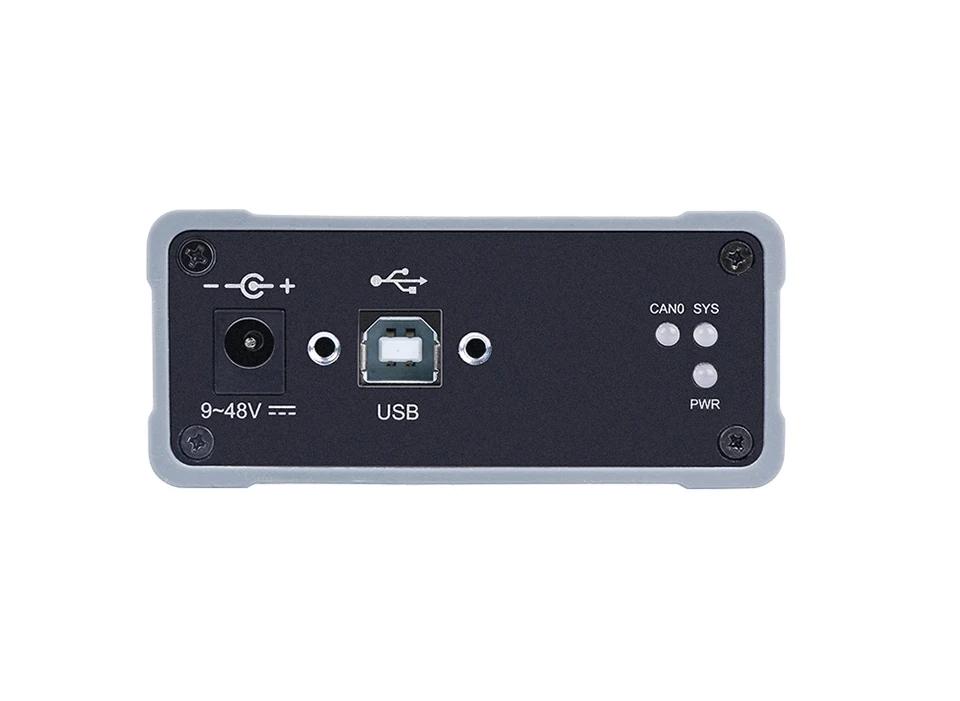

- Can use USB bus power supply.
- Support Car DBC protocol receiving and sending.
- Support Car UDS protocol diagnosis.
- Support Analysis of CANopen and J1939 Protocols.
- Support ZCANPRO test software (support Win7, Win10 operating system).
- Provide the secondary development interface function of the host computer.
- Working temperature: -40℃~+85℃.

Drivers and Software:
- Windows system driver download link: https://manual.zlg.cn/Public/Uploads/2021-01-20/6007c3e22cd4f.zip

- Linux system driver download link:
  Linux(x64): http://manual.zlg.cn/server/index.php?s=/api/attachment/visitFile/sign/803d392446fa8265e39a144f67d763d9

  Linux(aarch64): http://manual.zlg.cn/Public/Uploads/2021-12-06/61adaaee964c1.zip

  Linux(armhf): http://manual.zlg.cn/Public/Uploads/2021-12-06/61adab6e6a9a8.zip

  ZCANPRO application software download link: https://www.zlg.cn/data/upload/software/Can/CAN-bus-ZCANPRO_Setup.rar

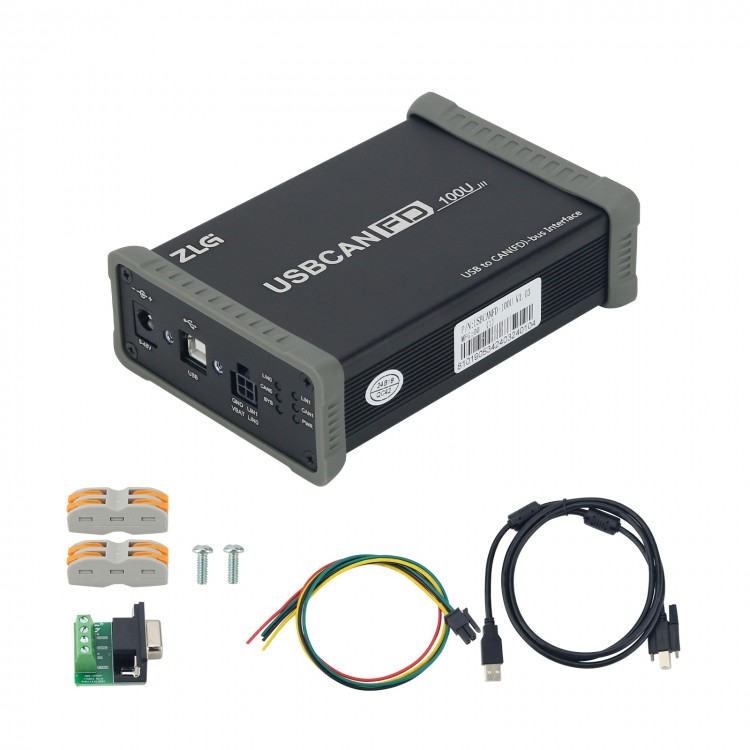

Package Included:
- 1 x USBCANFD-100U

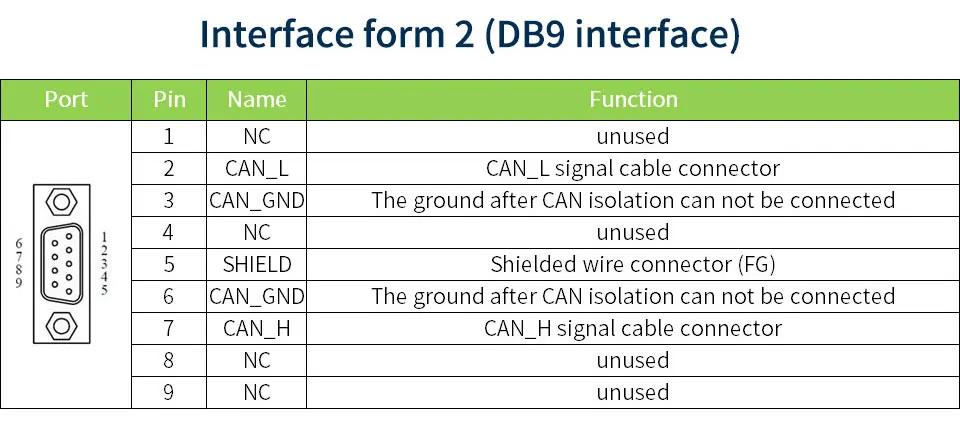

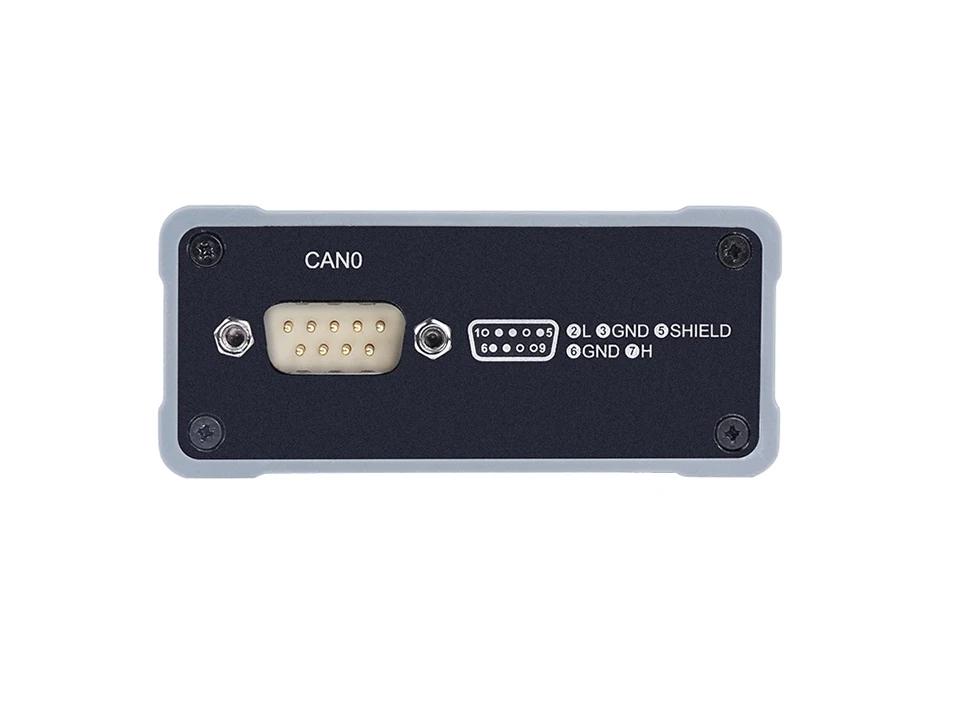

- 1 x DB9 to OPEN4 Adapter
- 1 x USB Communication Cable
- 2 x Round Screws
- 1 x Leadwire
- 2 x Quick Wiring Terminal
