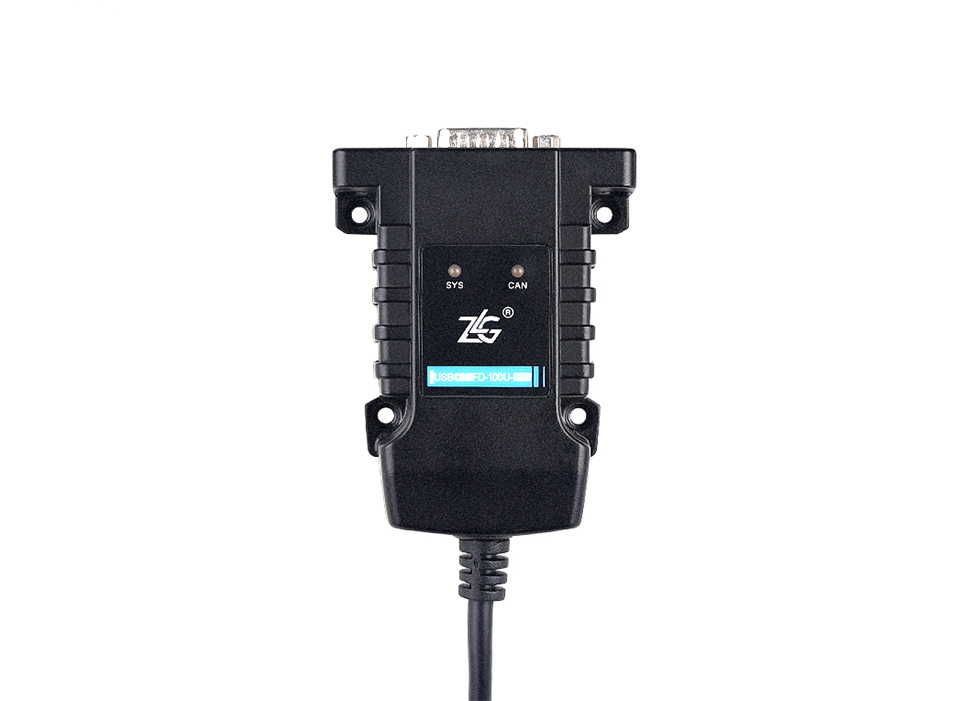

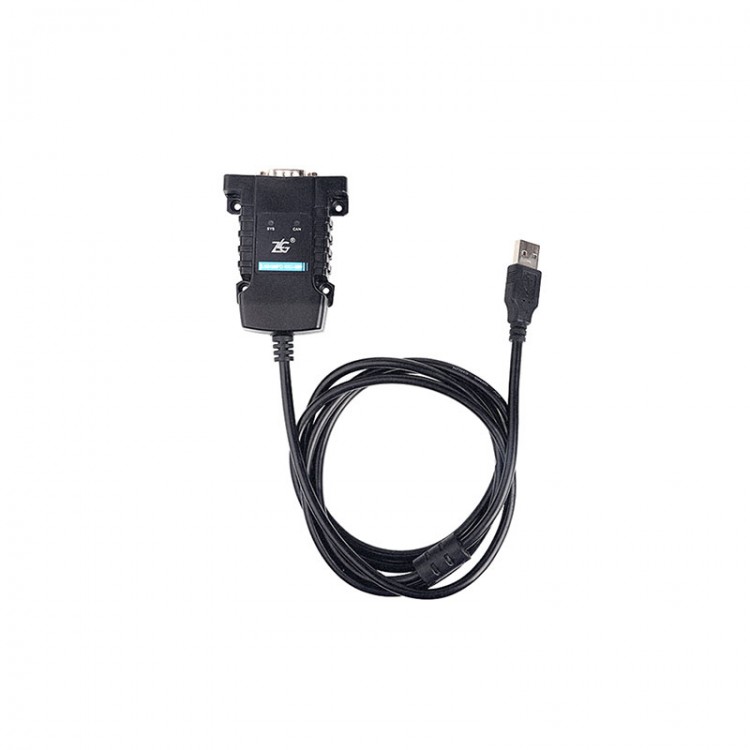

ZLG USBCANFD-100U-mini USB to CAN FD Adapter USB to CAN FD Analyzer Supports 1 CANFD Channel
Description:

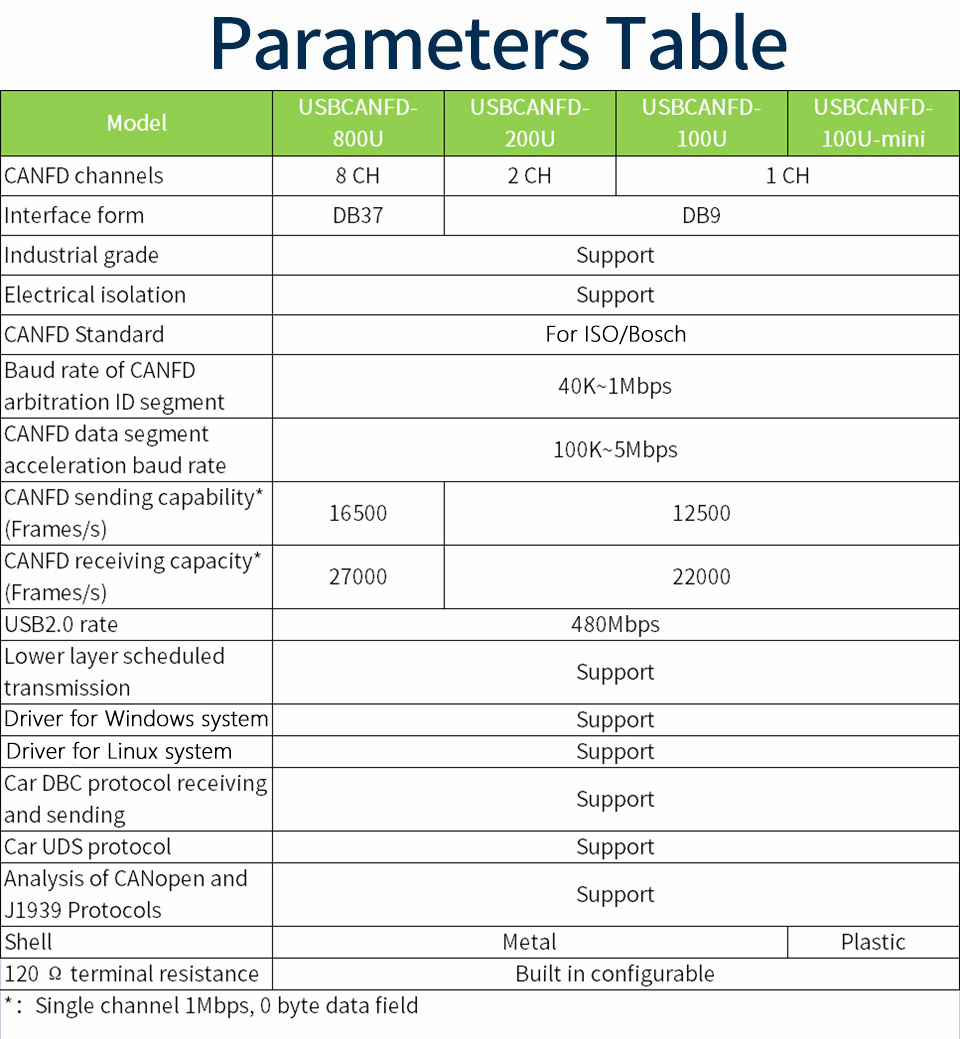

USBCANFD series is a high-performance CANFD interface card developed. Integrate 1-2 CANFD interfaces, support ISO standard CANFD and Bosch CANFD standard. Each interface has an independent 2500VDC electrical isolation protection circuit, which can prevent the interface card from being damaged due to ground circulation and enhance the reliability of the system in harsh environments.
- PC complies with USB2.0 high-speed specification;
- Support CAN2.0A, B protocol, in line with ISO11898-1 specification;
- Integrated 1/2/8-CH CANFD interface;
- CANFD supports for ISO standard and BOSCH standard;
- The baud rate of CAN communication can be freely programmable between 40Kbps~1Mbps;
- CANFD baud rate can be freely programmable between 100Kbps~5Mbps;
- The highest data flow of single-channel transmission: 3000 frames per second (remote frame, single frame transmission);
- Single-channel receiving maximum data flow: 10000 frames/second (remote frame);
- Each channel supports up to 64 ID filters;
- Each channel supports up to 100 timed sending messages;
- Built-in 120 ohm terminal resistance, which can be controlled by software;
- Can use USB bus power supply;
- Support Car DBC protocol receiving and sending;
- Support Car UDS protocol diagnosis;
- Support Analysis of CANopen and J1939 Protocols;
- Support ZCANPRO test software (for Win7 and Win10 operating systems);
- Provide the secondary development interface function of the host computer;
- Working temperature: -40℃ to +85℃.
Package Included:
- 1 x USBCANFD-100U-mini

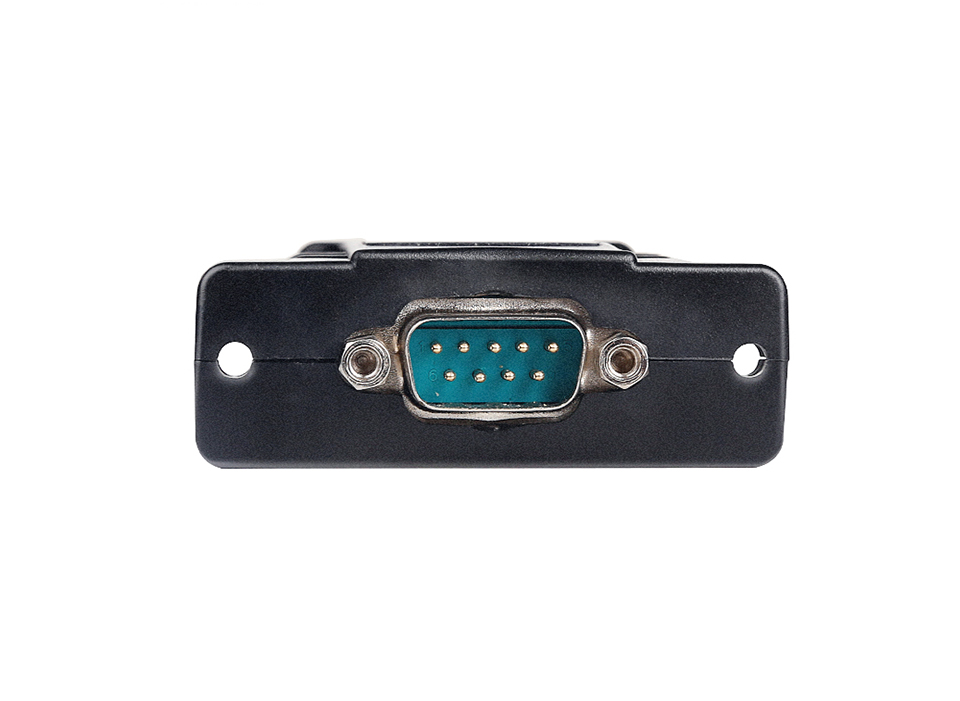

- 1 x DB9 to OPEN4 terminal
- 1 x CD
- 1 x After-sales service guide
- 1 x Product quality certificate
Drivers and Software:
Download driver for Windows system:
https://manual.zlg.cn/Public/Uploads/2021-01-20/6007c3e22cd4f.zip
Download driver for Linux system:
- For Linux (x64): http://manual.zlg.cn/server/index.php?s=/api/attachment/visitFile/sign/803d392446fa8265e39a144f67d763d9
- For Linux (aarch64): http://manual.zlg.cn/Public/Uploads/2021-12-06/61adaaee964c1.zip
- For Linux (armhf): http://manual.zlg.cn/Public/Uploads/2021-12-06/61adab6e6a9a8.zip
Download ZCANPRO application software:
https://www.zlg.cn/data/upload/software/Can/CAN-bus-ZCANPRO_Setup.rar
