Description:
USBCANFD-400U is a high-performance CANFD interface. It is compatible with USB2.0 bus specification, integrates four CANFD interfaces, and CAN channel integrates independent electrical isolation protection circuits. USBCANFD-400U connects a PC to CAN (FD) network through USB port, which constitutes CAN (FD)-bus control node.

USBCANFD-400U high-performance CANFD interface is a powerful tool for product development and data analysis of CAN (FD)-bus. The USBCANFD-400U has its own electrical isolation module, which prevents the interface from being damaged by ground circulation and enhances the reliability of the system in harsh environment. USBCANFD-400U supports operating systems for Windows7/10/11 and the like.

Features:
- The USB interface complies with the USB2.0 high-speed specification;
- Integrated 2CH LIN bus interface;
- LIN complies with LIN 1.x, LIN 2.0, LIN 2.1, LIN 2.2, LIN 2.2A and SAE J2602 specifications;
- LIN baud rate can be arbitrarily configured within 1Kbps~20Kbps;
- Supports CAN2.0A and B protocols, in line with ISO11898-1 specification;
- Integrated 4CH CANFD interface;
- Compatible with high-speed CAN and CANFD;
- CANFD supports ISO standards and Non-ISO standards;
- CAN communication baud rate is arbitrarily programmable in the range of 40Kbps~1Mbps;
- CANFD baud rate is arbitrarily programmable in the range of 1Mbps~5Mbps;
- Maximum data flow for simultaneous transmission of two channels: 6500 frames/sec (see note for test conditions);
- Maximum data flow for one-channel transmission: 12500 frames/sec (refer to the note for test conditions);
- Maximum data flow for simultaneous reception of two channels: 11000 frames/sec (refer to the note for test conditions);
- Maximum data flow for one-channel reception: 22000 frames/sec (test conditions refer to the annotation);
- Supports up to 64 ID filters per channel;
- Each channel supports up to 100 messages sent at regular intervals;
- Built-in 120 ohm terminal resistor. The access and disconnection of the resistor can be controlled by a software;
- Supports USB bus power supply and external power supply;
- Supports ZCANPRO test software (for Win7 and Win10 operating systems);
- Provides the interface function of the secondary development of the host computer.
- Note: The performance test conditions of CANFD when it is sending and receiving data are: baud rate 1M/5M, packet CANFD acceleration, standard frame 0x555 and data length 0.

Typical Applications:
- CAN (FD)-Bus network diagnosis and testing
- Automotive electronic applications
- Electric power communication network
- Industrial control equipment
- High-speed communication with a large data volume

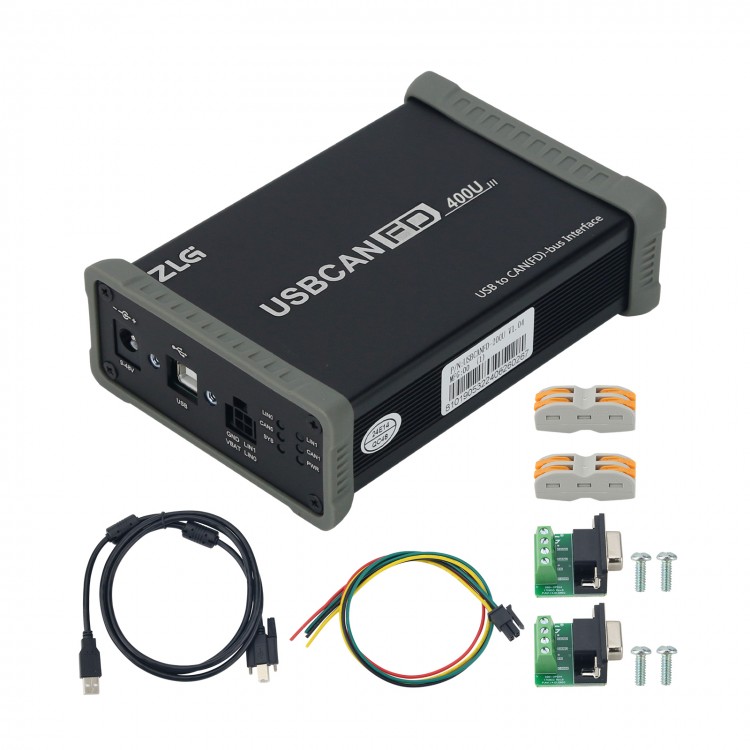

Package Included:
- 1 x Set of USBCANFD-400U

Packaging Details:
- Weight: 0.5kg
