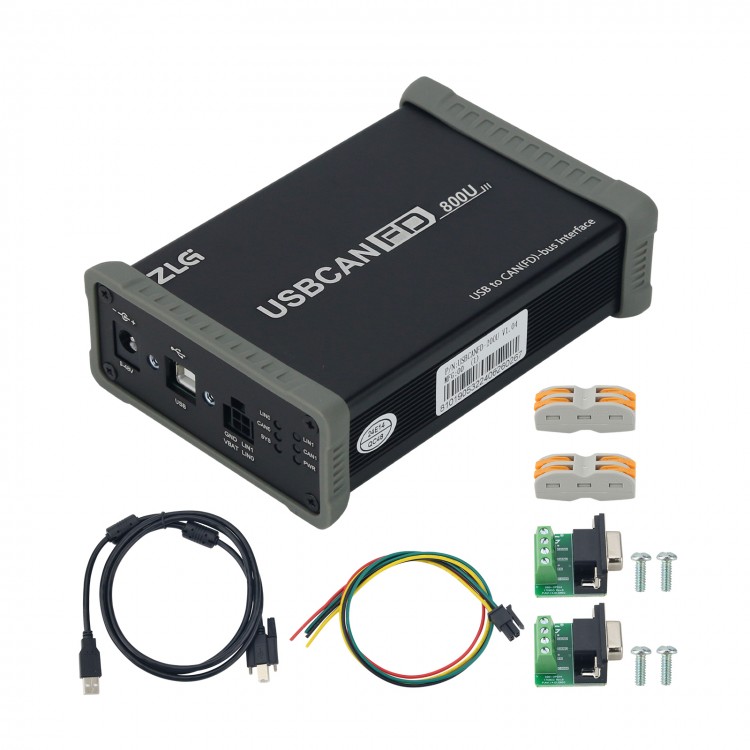

ZLG USBCANFD-800U USB to CAN FD Adapter w/ 8CH CANFD DB37 Interface Form for Automotive Electronics

ZLG USBCANFD-800U USB to CAN FD Adapter w/ 8CH CANFD DB37 Interface Form for Automotive Electronics

Description:
USBCANFD-800U is a data conversion device between USB and CAN(FD)-bus. It integrates 8 CAN (FD)-bus ports, 1 USB port, and 1 in-vehicle two-wire Ethernet port. It allows users to easily interconnect CAN (FD)-bus networks and USB signals, further extending the range of CAN (FD)-bus networks.

Features:
1. Powerful Hardware:
- High-speed dual-core A9+FPGA processor;
- Supports USB 2.0 protocol;
- Automotive two-wire Ethernet meets 100Base-T1 specification
- 8 CAN(FD) ports with 2.5kVDC withstand voltage isolation;
- Rated power supply voltage range: 9V~48V DC;
- Operating temperature: -40°C to 85°C;
- Humidity: 5%-95% RH and no condensation;
- Rugged metal housing, SECC metal (1.1 mm);
- Designed for industrial environments.

2. Perfect Functionality:
- CAN (FD) interface function supports:
- Supports 40K~5Mbps baud rate. And the baud rate can be set arbitrarily;
- Supports different controller types: CAN and CANFD;
- Supports software terminal resistor switch;
- Supports packet filtering function;
- Supports millisecond packet timing sending;
- Supports bus utilization reporting;
- Open communication protocol, and provides secondary development interface function library (for Windows and Linux platforms);
- Supports ZCANPRO (for Win7 and Win10 operating systems);
- Win10 can be used directly without installing a driver;
- Provides secondary development interface function library (for Windows and Linux platforms);
- Supports local system firmware upgrade.

3. Typical Applications:
- Detection and troubleshooting of high-speed rail train operation faults
- Detection and troubleshooting of subway train operation faults
- Detection and troubleshooting of train control system operation faults
- Detection of CANFD communication anomalies for wind turbines
- Multi-channel CANFD communication recording and fault analysis of traditional and new energy vehicles
- Detection and troubleshooting of ship CANFD communication faults
- Analysis of CANFD communication anomalies in coal mines
- Elevator operation fault detection and troubleshooting
- Detection and troubleshooting of construction machinery operation faults
- Operation detection and troubleshooting of aerospace vehicles and supporting equipment

Package Included:
- 1 x Set of USBCANFD-800U

Packaging Details:
- Weight: 0.5kg
