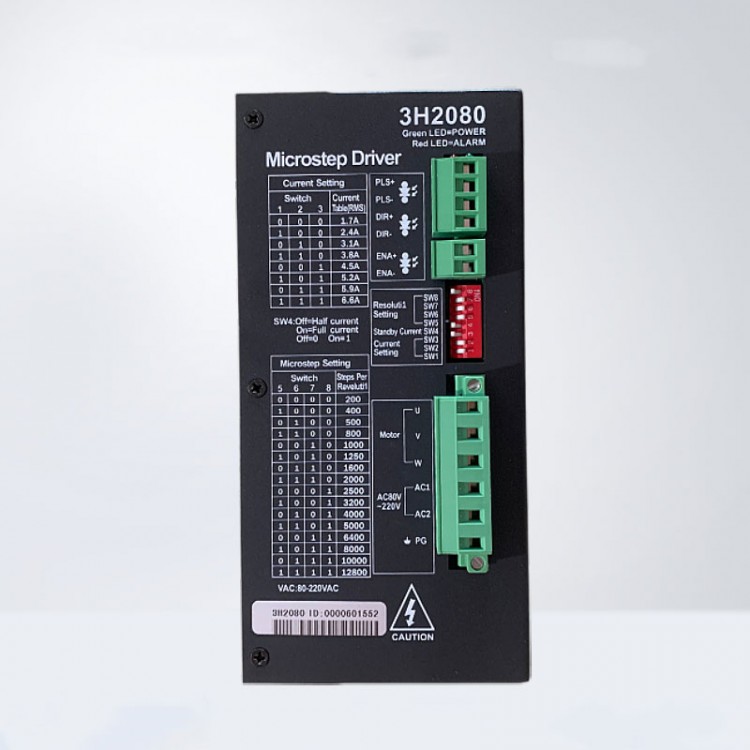

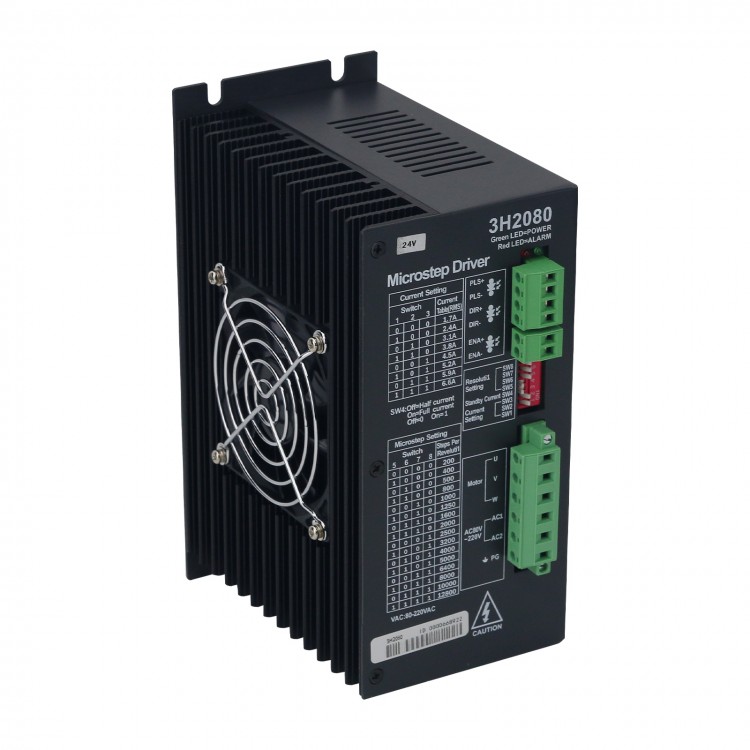

ZM-3H2080 24V High Performance 3-Phase Stepper Motor Driver Controller AC80-220V for 86-130MM Stepper Motors

ZM-3H2080 24V High Performance 3-Phase Stepper Motor Driver Controller AC80-220V for 86-130MM Stepper Motors

Description:
- ZM-3H2080 is an equal-angle constant-torque subdivision driver, the driver voltage is AC80V-220V, and it is suitable for various types of three-phase hybrid stepping motors with a current below 6.6A and an outer diameter of 86-130MM. The driver adopts a circuit similar to the servo control principle. This circuit can make the motor run smoothly at low speed with almost no vibration and noise. Due to the high working voltage of the driver, the torque of the motor at high speed is much higher than that of other three-phase and five-phase hybrid types. and traditional stepper motors. When the stepping pulse stops exceeding 100m/s, the driver current is automatically halved. The positioning accuracy can be up to 12800 steps/revolution.

Main Features:
- 80-220V AC power supply, adapt to the worst grid environment.
- H-bridge bipolar constant-phase current subdivision drive.
- Original speed adaptive circuit, automatic optimization.
- Subdivision current setting is convenient.
- 2-64 subdivision 16 operating modes.
- Over current, over voltage, under voltage, over temperature, short circuit protection.
- Offline (ENA) protection function.
- Single and double pulse function (double pulse needs special customer requirements)

Specification:
- Power supply voltage: 80 - 220V (typ. 110V)
- Normal working output current: 1.7 - 6.6A
- Logic input current: 15mA
- Corresponding frequency of step time pulse: up to 200kHz
- Pulse low level time: min. 2.5us
- Cooling method: natural cooling or forced cooling
- Environmental requirement: avoid dust, oil mist, and corrosive gases
- Storage environment: -10℃ to 80℃
- Working temperature: 65℃
- Environmental humidity: < 80%RH, non-condensing
- Vibration: 5.9ms
- Weight: about 1.5kg

Precautions:
- When the temperature of the drive exceeds 70 degrees, it will stop working, and the fault red indicator will be on. After the fault occurs, the drive needs to be powered on again to resume work. If overheating protection occurs, please add a radiator.

- Over-current (too large current or too low voltage) fault indication red light is on, please check the motor wiring and other short-circuit faults or whether the voltage is too low.

- The green indicator light is on when the power is turned on, and the red indicator light is on when there is an ENA signal input.

- When the above protection functions are activated, the motor shaft pushes the self-locking force, and the power indicator turns red. To resume normal operation, it is necessary to confirm that the above faults are eliminated, and then the power is turned on again, the power indicator turns green, and the motor shaft is locked. tight, the drive is back to normal.

Package Included:
- 1 x Stepper Motor Driver
