Description:

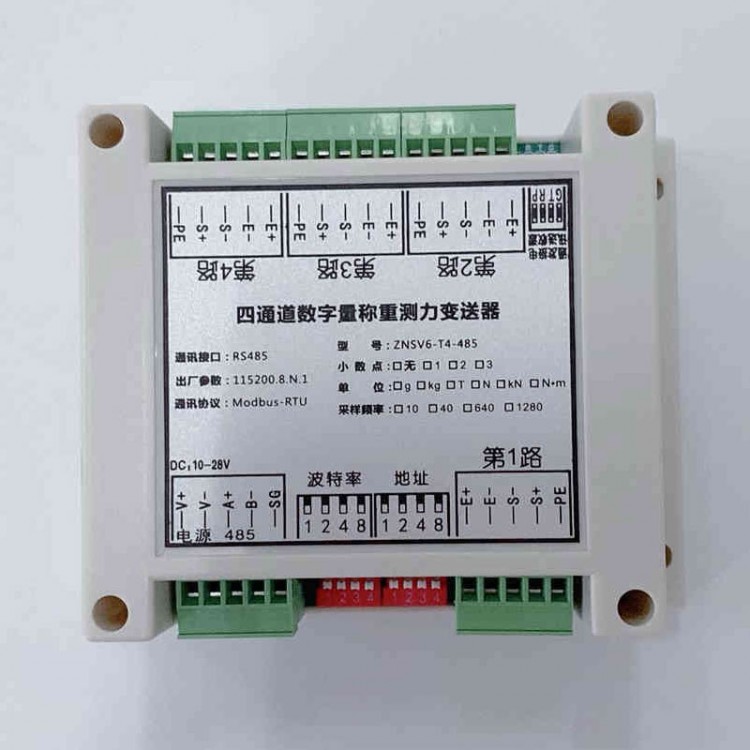

ZNSV6-T4-485 is a digital weighing transmitter. It can be directly connected to a Wheatstone resistive bridge-type tension/pressure sensor. Through the internal signal amplification circuit and AD acquisition circuit, the micro-voltage analog signal from the sensor is converted into a digital signal. The built-in microprocessor of the module supports calibration algorithms, allowing the real-time weight value to be directly read from the RS485 interface after calibration. The RS485 interface output by the module supports the Modbus-RTU protocol.

This product is suitable for various industrial applications such as weighing batching and force measurement. The standard Modbus-RTU communication protocol enables the module to be conveniently connected with PLCs, DCSs, microcomputers, and other devices as a front-end signal processing module for weighing.

Technical Specifications:
General Technical Specifications:
* Power Supply: DC 10-28V
* Power Consumption: <2W
* Operating Current: Varies based on the number of connected sensors and supply voltage; driving capability of 500mA
* Operating Environment: Temperature: -40 to 85℃; Humidity: 0% to 95% (non-condensing)
* Isolation Protection: Optocoupler isolation, power isolation, and surge protection (not available in basic models)
* Protection Rating: IP65
* Installation Method: Mounting hole fixation / rail fixation
* Weight: ≈250g

Sensor Interface Performance:
* Compatible Sensor Types: Suitable for all Wheatstone resistive strain sensors
* Sensor Excitation Voltage: 5VDC ±3%
* Sensor Driving Capability: 4 x 350Ω sensors per channel
* Number of Channels: 2-4 channels
* Input Signal Range: 0 to ±30mV
* Temperature Coefficient: +0.3d/℃ (≤0.01% of reading)
* Non-linearity Error: ≤0.003% F·S
* Stable Resolution: 1/500,000
* Sampling Rate: 10Hz, 40Hz, 640Hz and 1280Hz
* Sampling Method: Sig Delta AD

Communication Interface:
* Communication Method: RS485
* Communication Protocol: Standard Modbus RTU protocol, supporting function codes 03, 06, and 16 (0X10)
* Baud Rate: 2400, 4800, 9600, 19200, 28800, 38400, 57600, 115200, 128000, 230400, 256000, 460800, 500000, 512000, 600000 (configurable via software and DIP switch)
* Slave Software Address: 1-255 (broadcast address 254)
* Slave DIP Switch Address: 0-15

Factory Default Parameters:
* Baud Rate: 115200
* Data Bits: 8
* Stop Bits: 1
* Parity Bit: None
* Module Address: 1
* CRC Byte Order: Little Endian
* Data Byte Order: 2143

Package Included:
* 1 x Weighing Transmitter

Packaging Details:
* Weight: 0.6kg

Note:
* It can also be used as a three-channel one.
