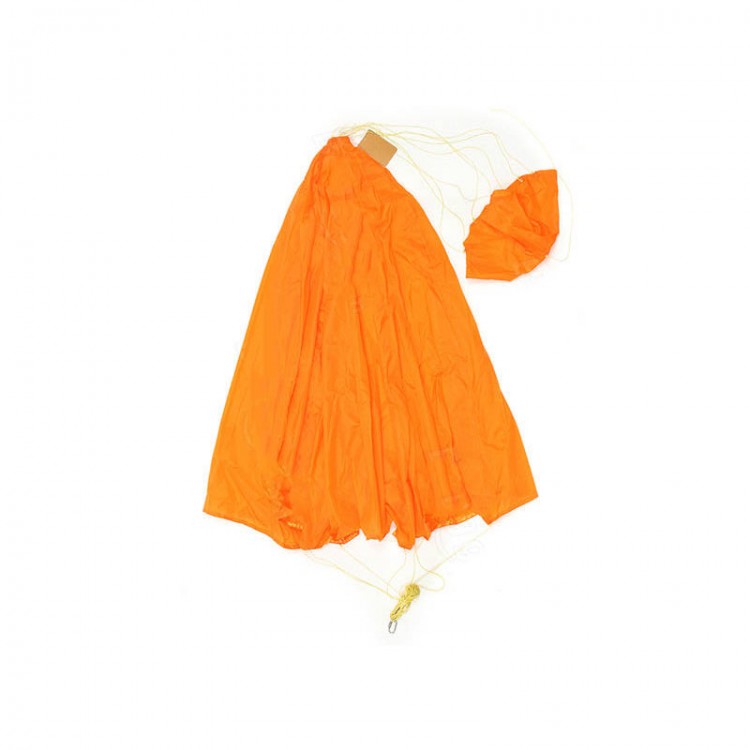

Zodiac UAV Parachute Drone Parachute for 15KG UAVs Fixed-wing Aircraft Model Aeroplanes & Halo Pro

Zodiac UAV Parachute Drone Parachute for 15KG UAVs Fixed-wing Aircraft Model Aeroplanes & Halo Pro

Attention:
- Parachute cords adopt original ropes for Dupont. The ropes are strong, durable, wear-resistant and anti-cutting.
- When the parachute is being installed, the parachute cords must be straightened out to ensure that the ropes are not entangled, otherwise they will reduce the parachute opening effect or even fail to open the parachute.
- The speed of aircraft should not be too fast when the parachute is being opened, so as to prevent the parachute and the aircraft from being damaged by excessive tension in an instant. And the speed should be generally controlled within 30 kilometers per hour.
- When you are going to open the parachute, make sure that propellers has stopped rotating, otherwise it is very easy to break the parachute cords and cause accidents.

Features:
- Parachute cords adopt original ropes for Dupont. The ropes are strong, durable, wear-resistant and anti-cutting.
- The parachute is well-made. The upgraded parachute uses special parachute cords which are hard-wearing.
- An additional pull cord has been added to its reserve parachute.
- The parachute is specially designed for aircraft measurement.
- Knots of the parachute cords: the production process is cumbersome, consuming a lot of labor to ensure a safe and reliable structure. Each knot can withstand an impact of over 20kg/44.1lb at the moment of opening the parachute.
- Top hole of the parachute: The top hole size is precisely calculated and tested so that it will neither cause excessive descent due to a large opening nor lose its effectiveness due to a too small opening. This design increases the cutting and splicing process of the parachute canopy, greatly increases the production cost. Its structure is safe and reliable, avoiding damage to the aircraft. And the performance of the landing process is stable and the landing point is controllable.
- Reinforced edge stitching of the parachute: The process is complex, increasing the labor and material costs of main parachute production by 50%. The structural strength of the parachute canopy is significantly enhanced, with the seam tensile capacity improved by over 30kg/66.1lb, eliminating the potential hazard of the canopy rupturing in the air during high-speed deployment. The reinforced and cut-resistant edge stitching extends the service life of the parachute.

Product Parameters:
- Model: FY-WJ401
- Item name: 4KG/5KG/6KG/8KG/12KG/15KG UAV Parachute

Parachute Weight (error: ±5g/±0.01lb):
- 4KG version: 150g/0.3lb (including parachute cords)
- 5KG version: 165g/0.4lb (including parachute cords)
- 6kG version: 220g/0.5lb (including parachute cords)
- 8KG version: 250g/0.6lb (including parachute cords)
- 12KG version: 310g/0.7lb (including parachute cords)
- 15KG version: 400g/0.9lb (including parachute cords)

Diameters:
- 4KG version: 1.55M/5.1FT(projected diameter); 1.9M/6.2FT (nominal diameter)
- 5KG version: 1.70M/5.6FT(projected diameter); 2.0M/6.6FT (nominal diameter)
- 6KG version: 1.84M/6FT(projected diameter); 2.3M/7.5FT (nominal diameter)
- 8KG version: 2.21M/7.3FT(projected diameter); 2.9M/9.5FT (nominal diameter)
- 12KG version: 3.4M/11.2FT(projected diameter); 3.65M/12FT (nominal diameter)
- 15KG version: 4.1M/13.5FT(projected diameter); 4.35M/14.3FT (nominal diameter)

Optional Load Capacity:
- 4KG version: 3~4kg/6.6-8.8lb
- 5KG version: 5kg/11lb
- 6KG version: 6kg/13.2lb
- 8KG version: 8kg/17.6lb
- 12KG version: 12kg/26.5lb
- 15KG version: 15kg/33.1lb

Lengths of Parachute Cords (error: ±5cm/±2"):
- 4KG version: main parachute cord 180cm/5.9ft and reserve parachute rope 55cm/1.8ft
- 5KG version: main parachute cord 180cm/5.9ft and reserve parachute rope 55cm/1.8ft
- 6KG version: main parachute cord 200cm/6.6ft and reserve parachute rope 55cm/1.8ft
- 8KG version: main parachute cord 210cm/6.9ft and reserve parachute rope 55cm/1.8ft
- 12KG version: main parachute cord 350cm/11.5ft and reserve parachute rope 55cm/1.8ft
- 15KG version: main parachute cord 420cm/13.8ft and reserve parachute rope 55cm/1.8ft

- Safe deployment height: Generally not less than 50m/164ft for loads below 8KG; and generally not less than 80m/262.5ft for loads above 10KG
- Touchdown speed: 1.5m/s-4m/s

Actual Measured Area:
- 4KG version: 2.8 square meters
- 5KG version: 3.9 square meters
- 6KG version: 4.6 square meters
- 8KG version: 5.2 square meters
- 12KG version: 6.8 square meters

Small Folded Volume:
- 4KG version: 10cm x 6cm x 5cm/3.9" x 2.4" x 2"
- 5KG version: 12cm x 6cm x 5cm/4.7" x 2.4" x 2"
- 6KG version: 13cm x 7cm x 6cm/5.1" x 2.8" x 2.4"
- 8KG version: 15cm x 9cm x 7cm/5.9" x 3.5" x 2.8"
- 12KG version: 15.5cm x 9cm x 8cm/6.1" x 3.5" x 3.1"

Package Included:
- 1 x Drone Parachute

Packaging Details:
- Weight: 0.5kg

Note:
- UAVs are not included in the package.
