ZONRI AD7606 Data Acquisition Module 16Bit/200KSps ADC Module Simultaneous Sampling Module
Features:

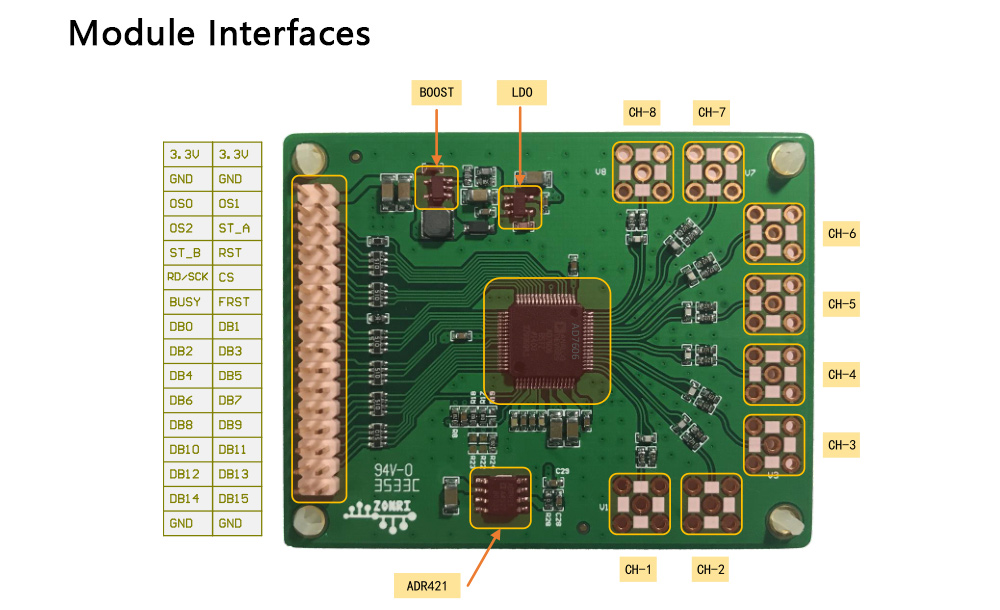

* Complete AD7606 application circuit module.

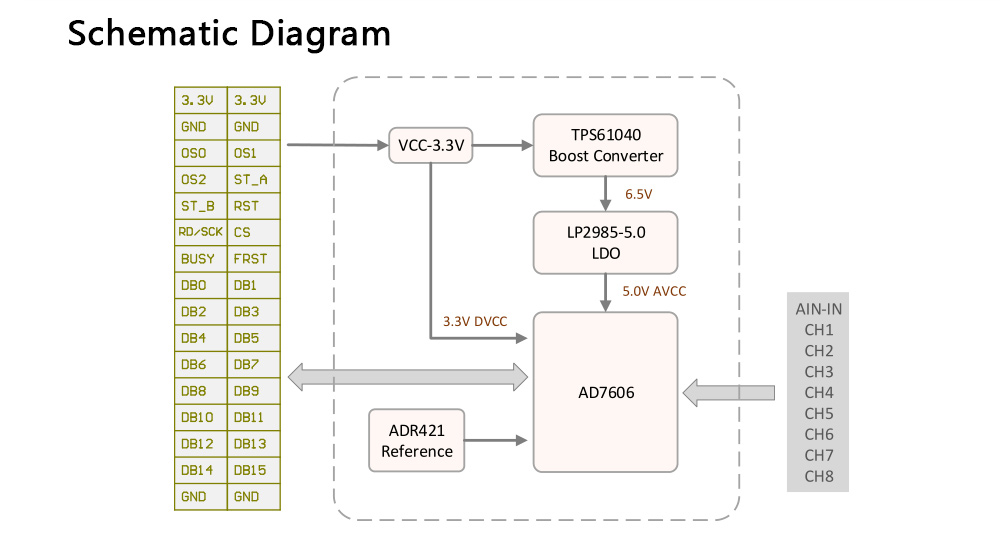

* On-board boost circuit provides a 5V analog power supply via LDO, eliminating the need for a 5V independent power supply.
* ADR421 voltage reference is on-board and can be configured with internal/outside reference source.
* Conform to the input protection resistors recommended in AD7606 datasheet page 22.
Download Materials:
https://pan.baidu.com/s/1DasvASRZx6yJdeRTtQHqQA
Package Included:
* AD7606 module x 1
* 2.54 2X16 pin header x 1
* 180-degree SMA sockets x 8
FAQ:
Q: When shipping, are the pin header and SMA sockets soldered?
A: No, users are required to solder the pin header and SMA sockets.
Q: Why do I need to use an outside reference for the AD7606 module?
A: It is because the outside reference has higher stability (please refer to the schematic and corresponding device datasheet), and makes it convenient to use the module and evaluate the chip. With the on-board resistor, the AD7606 module can use an internal or outside reference.
