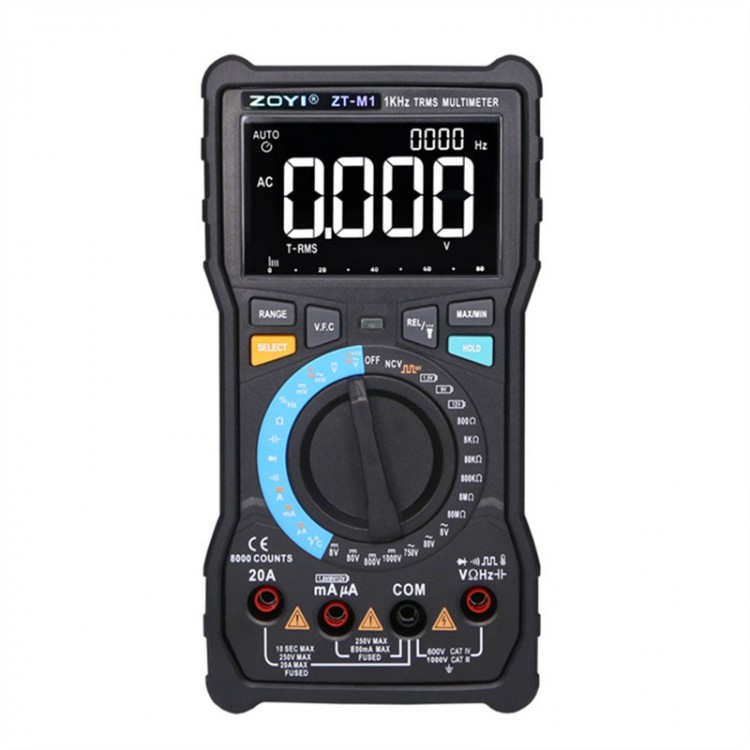

ZOYI ZT-M1 1KHz TRMS Multimeter Tester Manual & Automatic Modes to Repair Frequency Converter

ZOYI ZT-M1 1KHz TRMS Multimeter Tester Manual & Automatic Modes to Repair Frequency Converter

Features:
1. With 8000 counts LCD backlight display, wide measurement range and reading data in darkness.
2. Temperature range: -20 to 1000℃.
3. NCV test: Non-contact voltage detection function make it detect voltage without touching any wires to avoid electric shock.
4. Advantages: True RMS, automatic power off, data hold, max/min value, etc.
5. Multifunction: Can accurately measure AC/DC voltage, AC/DC current, resistance, temperature, capacitance, frequency, diode test, continuity, battery test.

Specifications:
- AC voltage: 0.01mV~750V with accuracy of ±(1.0%+3)
- DC voltage: 0.01mV~1000V with accuracy of ±(0.5%+3)
- AC current: 0.1uA~20A with accuracy of ±(1.2%+3)
- DC current: 0.1uA~20A with accuracy of ±(1.0%+3)
- Resistance: ↓0.1Ω~↑80MΩ with accuracy of ±(1.5%+3)
- Capacitance: ↓0.001nF~↑100mF with accuracy of ±(2.0%+5)
- Diode: √
- Backlight display: √
- On/Off Alarm: √
- Automatic shutdown: √ 15 minutes (Automatic shutdown can be canceled)
- Input impedance: 10MΩ
- Dual mode operation: Fine range + integrated range mode (free to switch at the dial)
- Anti-vibration protection: √
- Flashlight illumination: √
- NCV: √
- Zero line and live wire identification: √
- V.F.C: frequency converter
- Battery measurement: 1.5V/9V/12V
- Temperature measurement: -20℃ to 1000℃
- Body size: 176 x 91 x 47mm/6.9 x 3.6 x 1.9"

Package Included:
- 1 x Multimeter

Note:
- Batteries are not included. 3pcs AA dry batteries are recommended.
