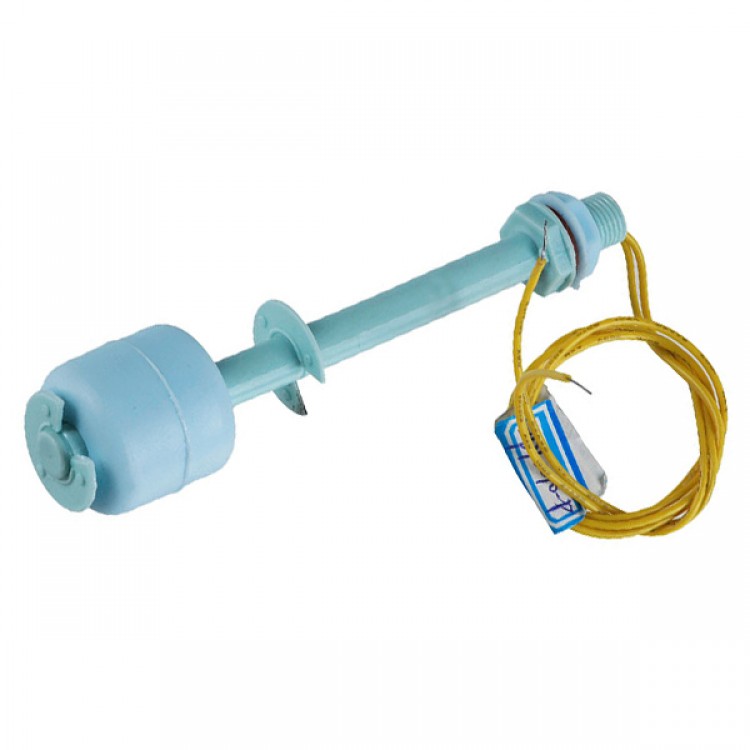

ZP10010 Plastic Level Measurement Magnetic Float Switch
Specifications:
Float Switch 10010
- Low cost
- Long life
- Simple installation
- Wide application
Movement explaination:
When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.
Specifications:
| Specification | 1A | 2A |
| Max contact rating | 10W | 50W |
| Max switching voltage | 100VDC | 220VDC |
| Max switching current | 0.5A | 1.5A |
| Max breakdown voltage | 220VDC | 300VDC |
| Max carry current | 1.0A | 3.0A |
| Max contact resistance | 100Ω | 100Ω |
| Temperature rating | -10-+85°C | -10-+85°C |
| Float ball material | P.P | P.P |
| Float body material | P.P | P.P |
| Reversible switch action | Yes | Yes |
