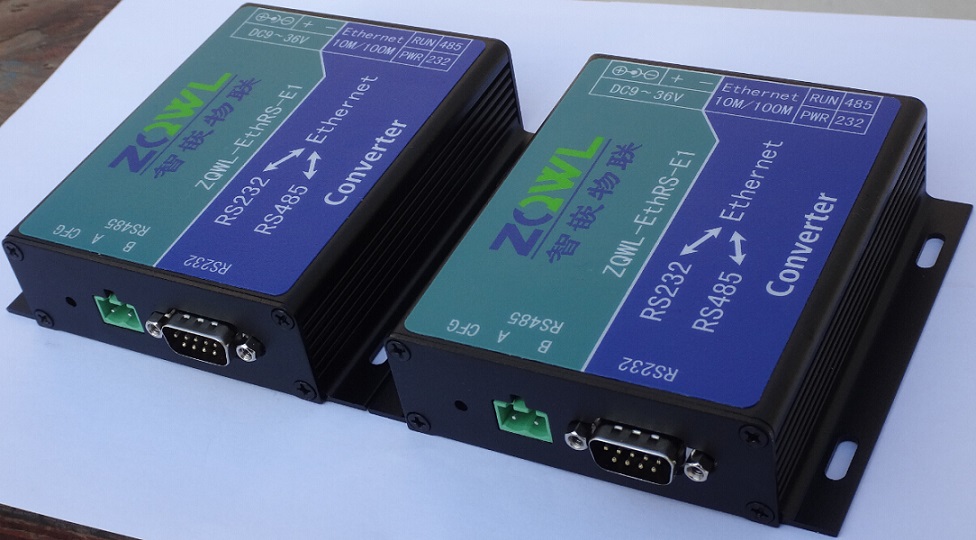

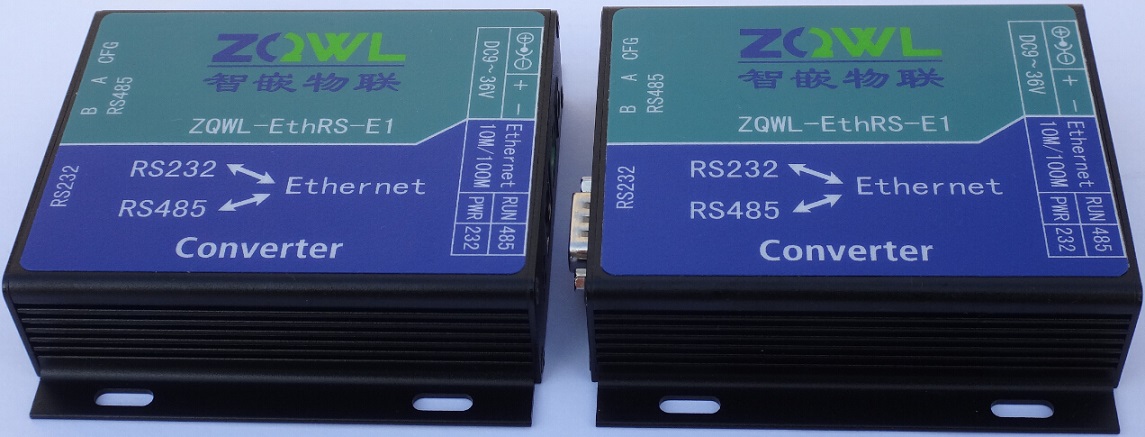

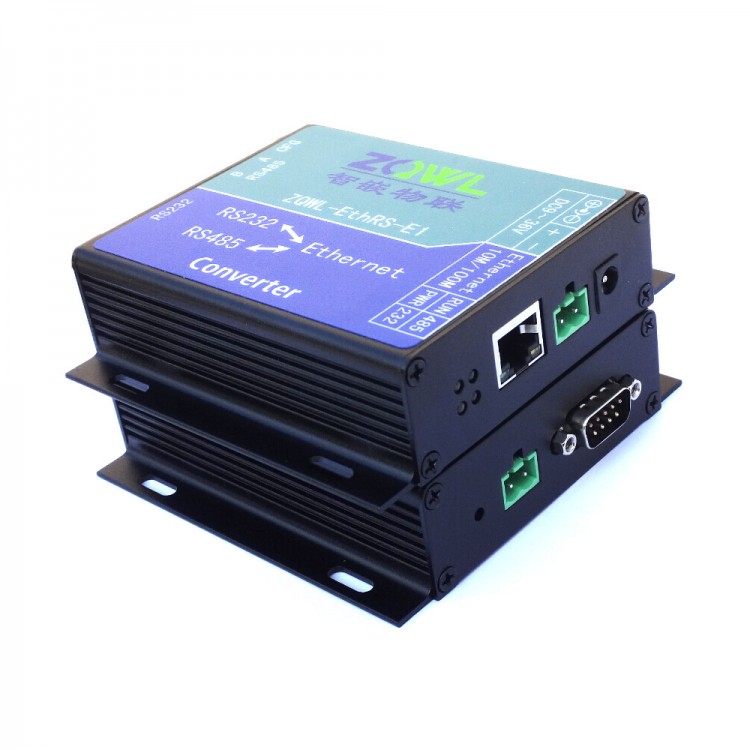

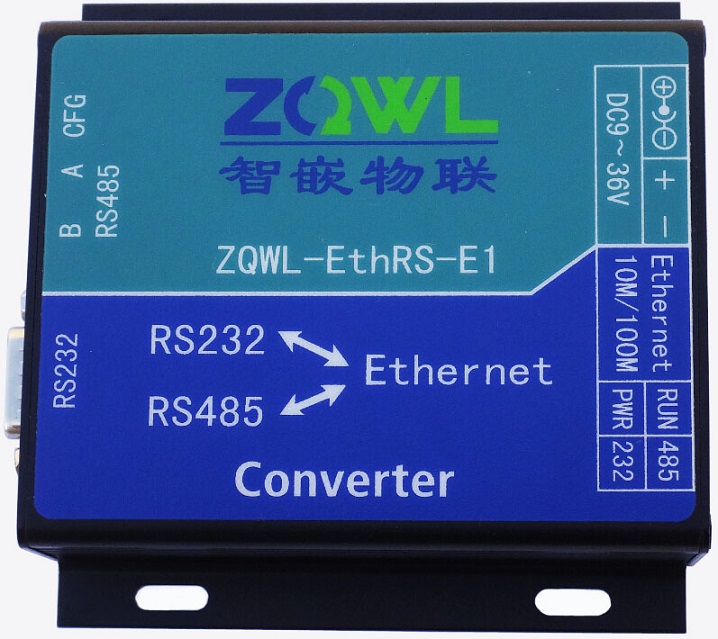

Product Description:

- ZQWL-EthRS-E1 is a wide voltage,high performance,high stablity serial server module.
- 1-channel RS232 interface,1-channel RS485 interface and 1-channel Ethernet interface.Users can connect serial machine and network device.
- 9-36V power supply,1-channel RS232,1-channel RS485,1-channel Ethernet interface.
- 10M/100M self-adaption Ethernet interface,2KV electromagnetic isolation.

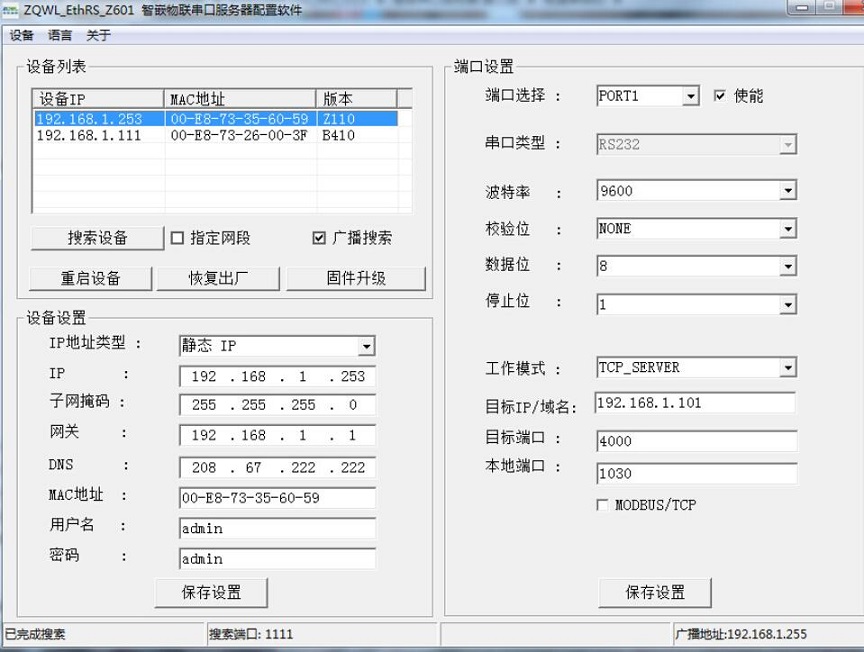

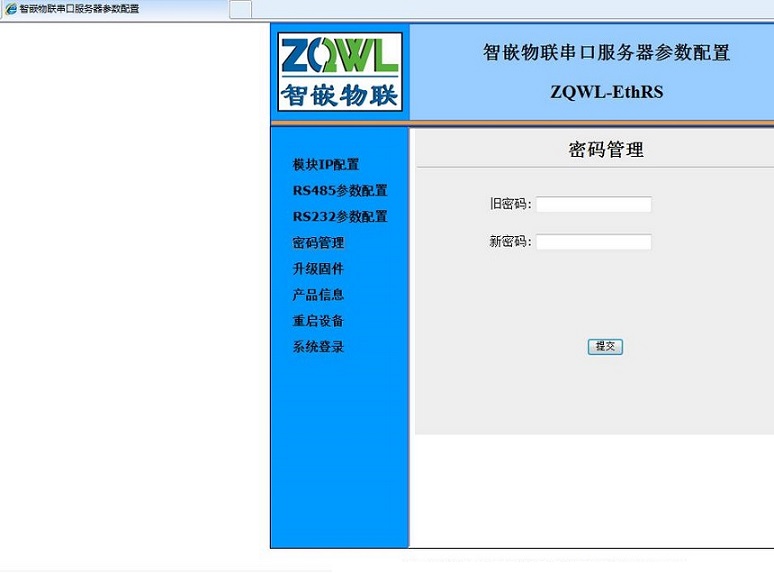

ZQWL-EthRS-E1 User manual & Software

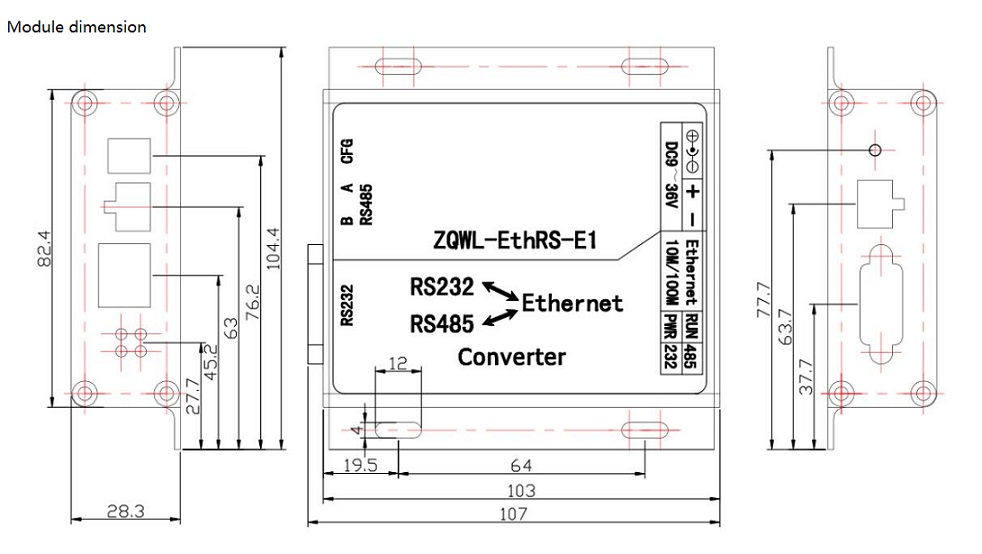

Specification:
- Mode:ZQWL_EthRS-E1
- Power suppy:DC 9-36V wide voltage power,two power supply mode:Black terminal(inner+external-)& green terminal(5.08mm spacing)
- CPU:32 bit high performance processor
- Ethernet interface:10M/100M adaptive Ethernet interface,2KV electromagnetic isolation
- RS232:baud rate,support 600~1024000,DB9 male plug/famale plug (optional)
- RS485:interface has ESD protective function(2KV).Baud rate support 600~1024000,5.08mm terminal leading-out.
- Communication LED indicator:Onboard RUN,RS232 & RS485 LED indicator
- Reset/restore factory setting:reset/restore factory setting signal
- Working temperature:-40-85 (industrial level)
- Storage environment:-40-85(no condensation)

Network characteristics:

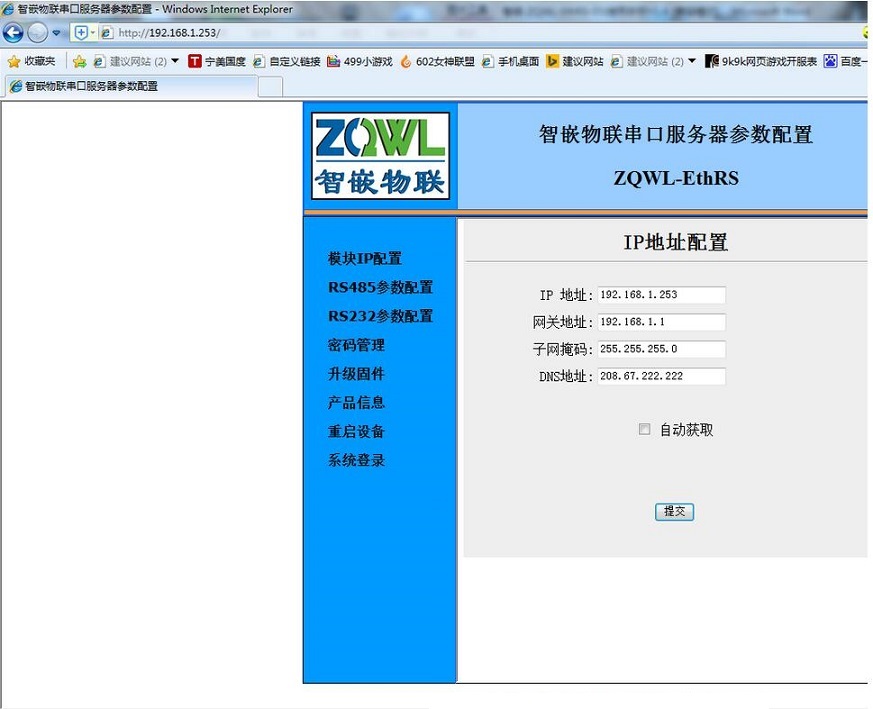

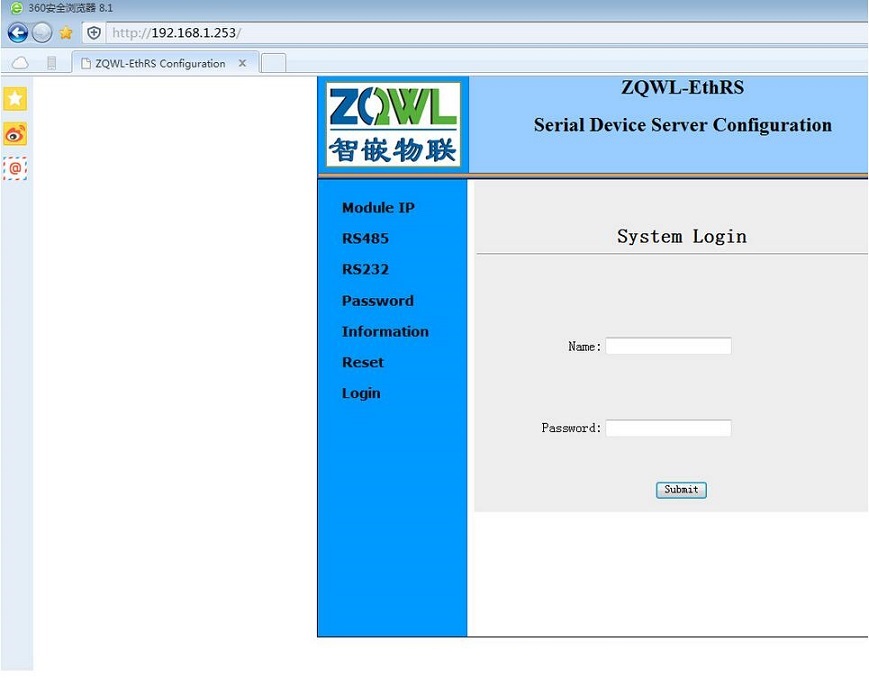

- Support static and dynamic IP
- Support netting twine cross connect automatic switching

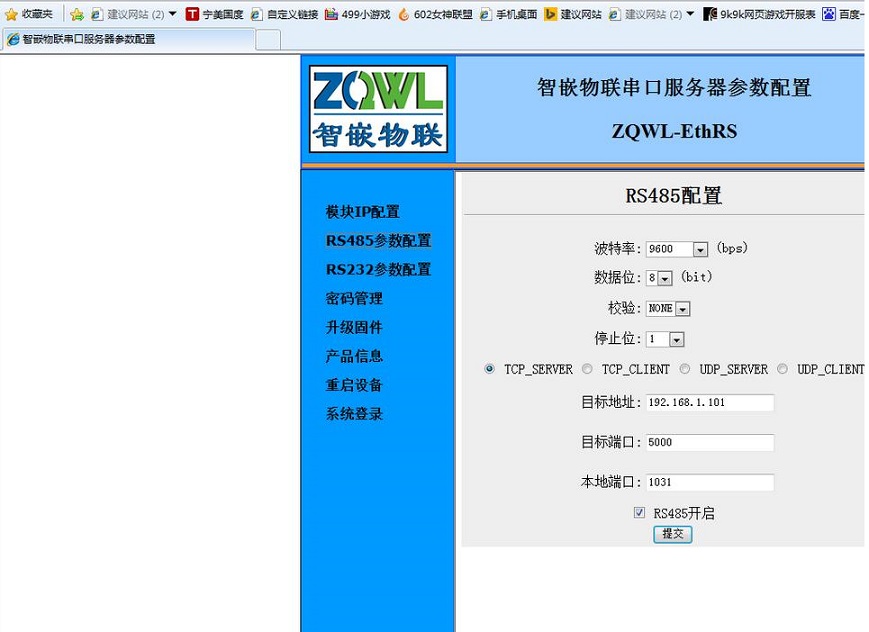

- The work port,the target IP and the target port can be set
- Support DNS function

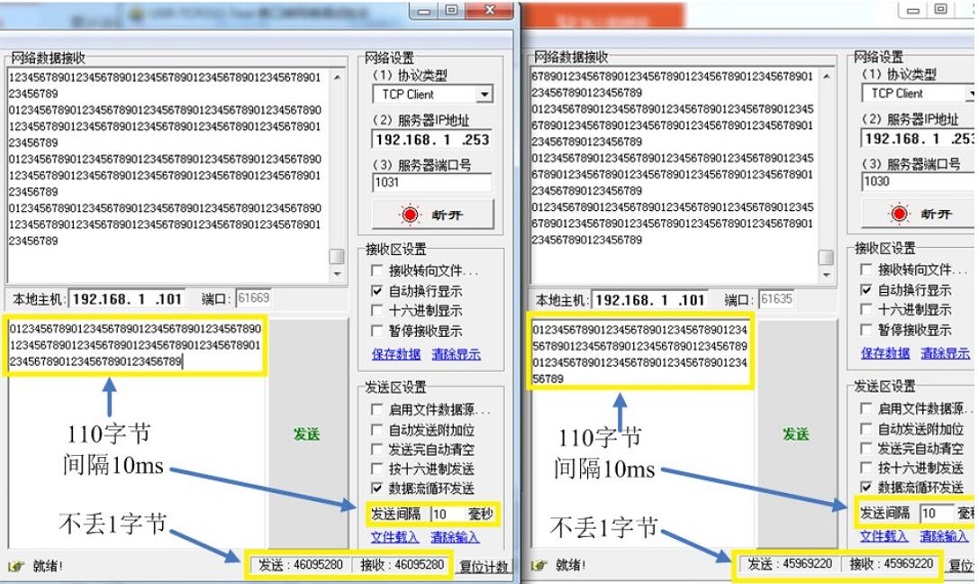

- In the TCP server mode,each TTL supports 4 client connections, and multiple users can manage a serial device at the same time
- Support online upgrade firmware function
- It can cross the network segment,switch,router,can work in LAN,also can work on internet
- The support agreement includes ETHERNET,ARP,IP,ICMP,UDP,DHCP,TCP;
- Support Modbus TCP to Modbus RTU

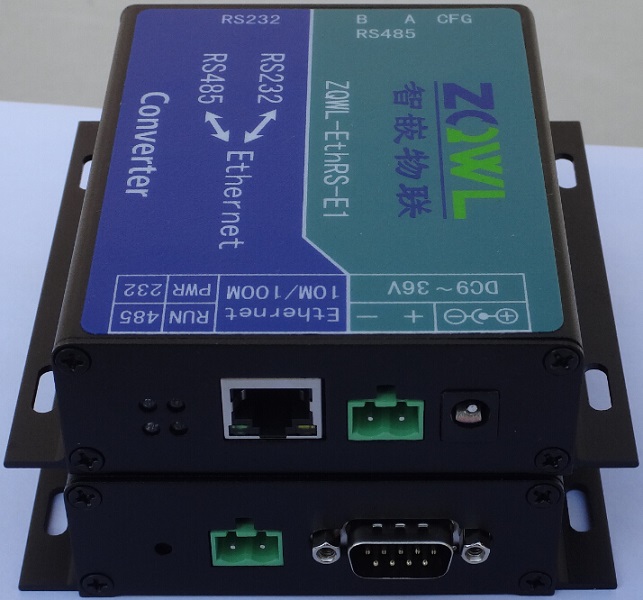

Module LED indicator:
- The module has four LED indicators:POWER,RUN,RS232 & RS485
- POWER:system power LED indicator,red.If the light is bright,the system power is normal.If not,the system power is wrong.
- RUN:system operation LED indicator emerald green.The light frequency is about 1Hz in normal operation.
- RS232:RS232 data flow LED indicator emerald green.When the RS232 data flow,the light flashes.
- RS485:RS485 data flow LED indicator emerald green.When the RS485 data flow,the light flashes.

When the system operation is wrong or in configuration mode,the LED indicator status as follows:
- Broken network:RUN,RS232 & RS485 all light.
- Firmware update:RUN,RS232 & RS485 synchronous flicker,frequency is about 3Hz.
- Automatic acquisition IP.RUN,RS232 & RS485 flow light-on light-off,it will recover to normal until successfully obtain IP or overtime.

Package List:
- 1 x ZQWL-EthRS-E1 Module
