- IO:IO control board series
- EthRS:serial server series
- SS:sensor series
- AN:analog board card series
- GP:GPRS dtu & GPS series
- ECAN:can convert network series
- RF:RF recognise series
- ZB:zigbee communication series

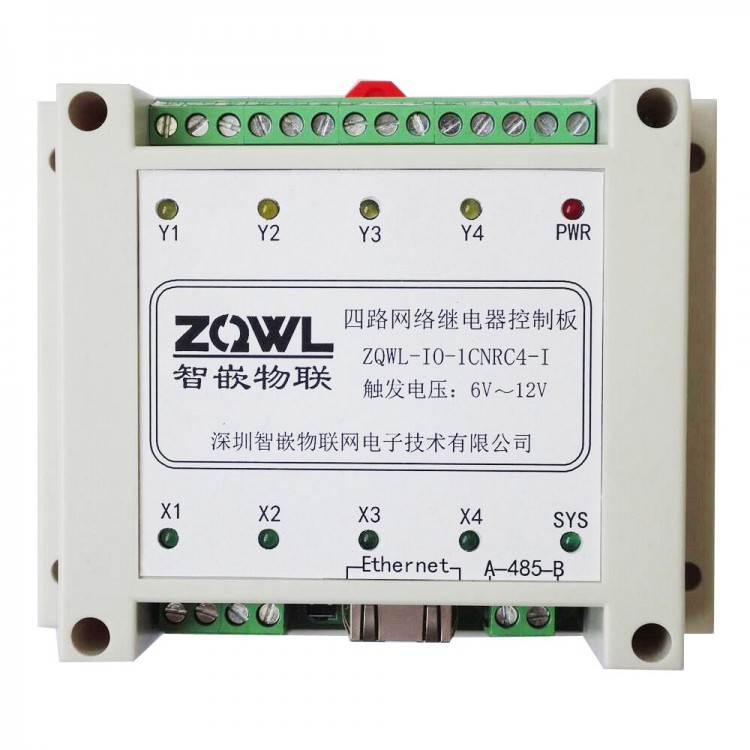

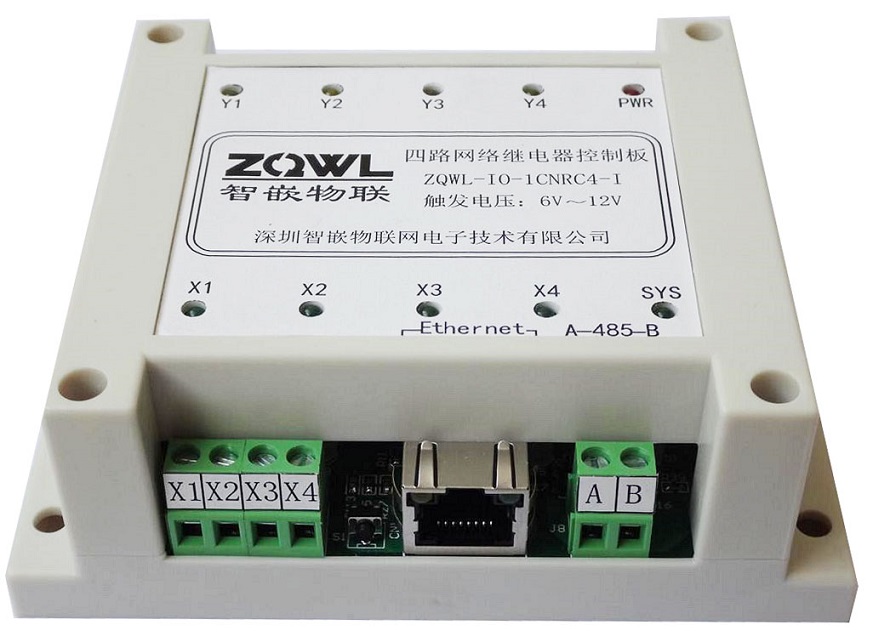

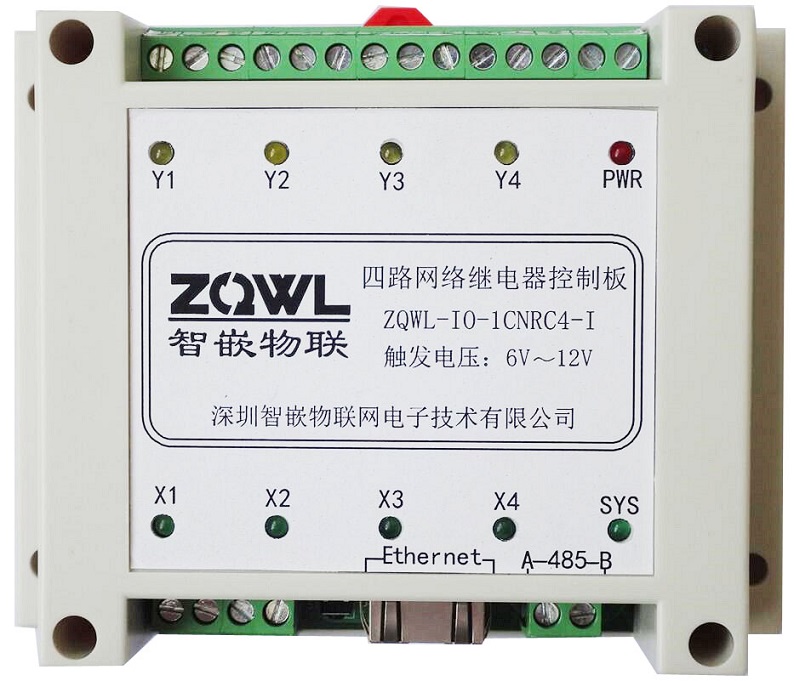

ZQWL-IO-1CNRC4-I:12V power supply,with shell,NPN input,10A current,network +RS485 communication+ serial/4-channel relay output,insustrial (Communication isolation;power isolation)
Hardware Description:
- ZQWL-IO-1CNRC4-I is a 48-channel NPN optoelectronic input,4-channel relay output industrial IO control board.
1-channel Ethernet port and 1-channel RS485 communication interface.
- The CPU power supply for control board uses isolation power,isolated power and isolated communication for RS485.The hardware has strong anti-interference ability.The control board network part uses "ZQWL-IO-3BTLC32" core module,stable network communication.
- The control board provides three communication protocols:Modbus TCP,Modbus RTU and custom protocols.
Network Characteristics:

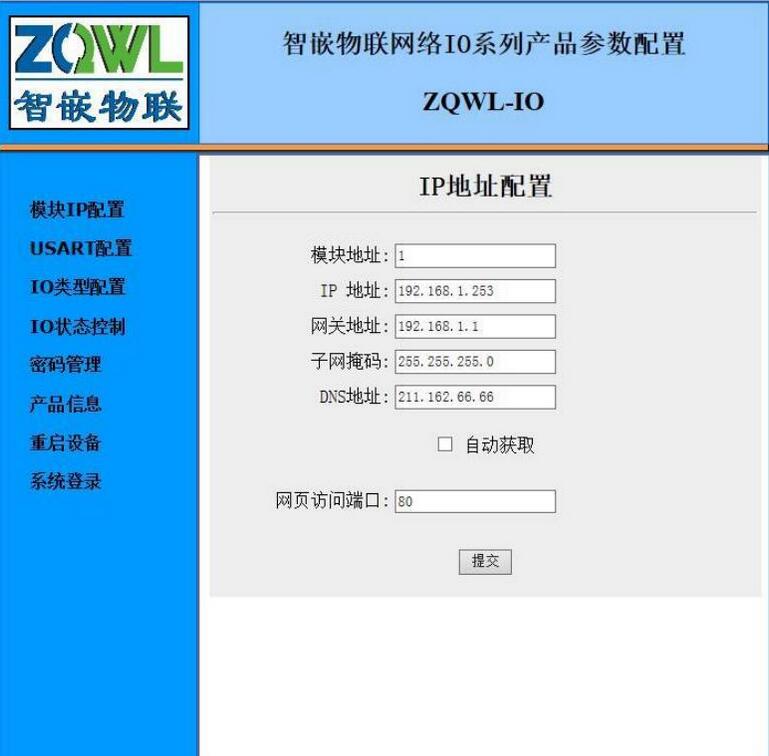

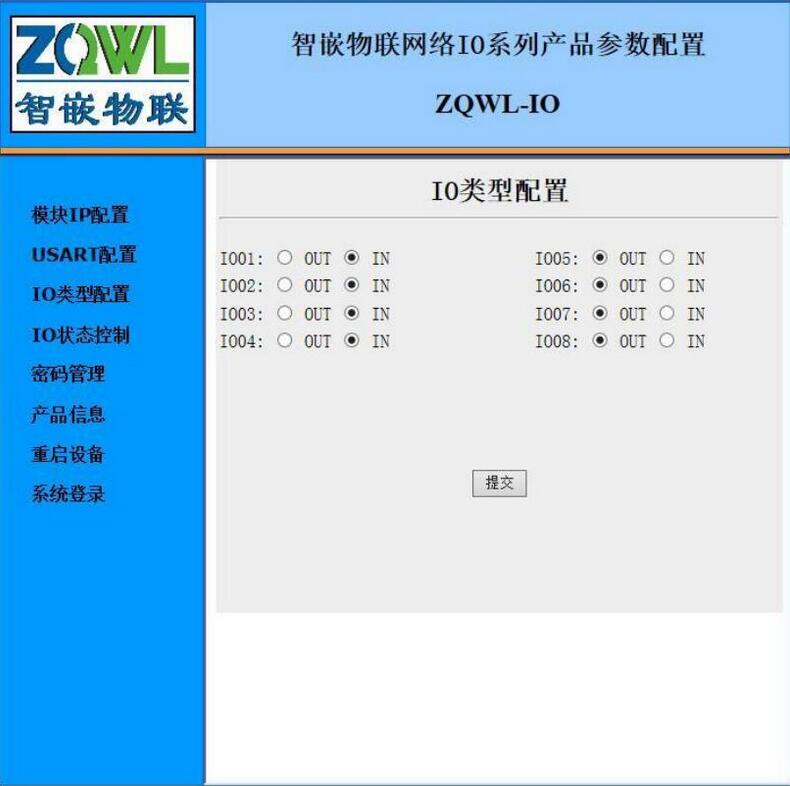

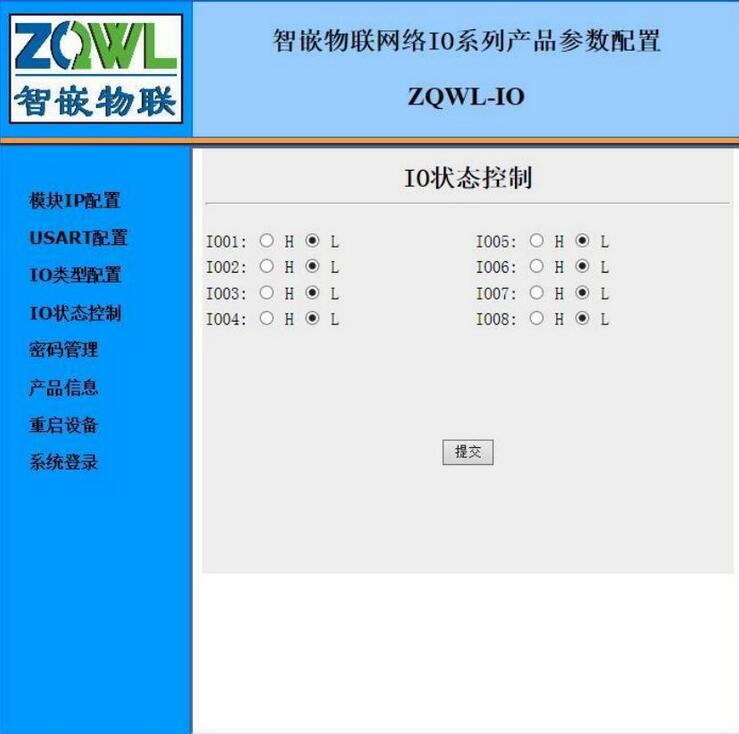

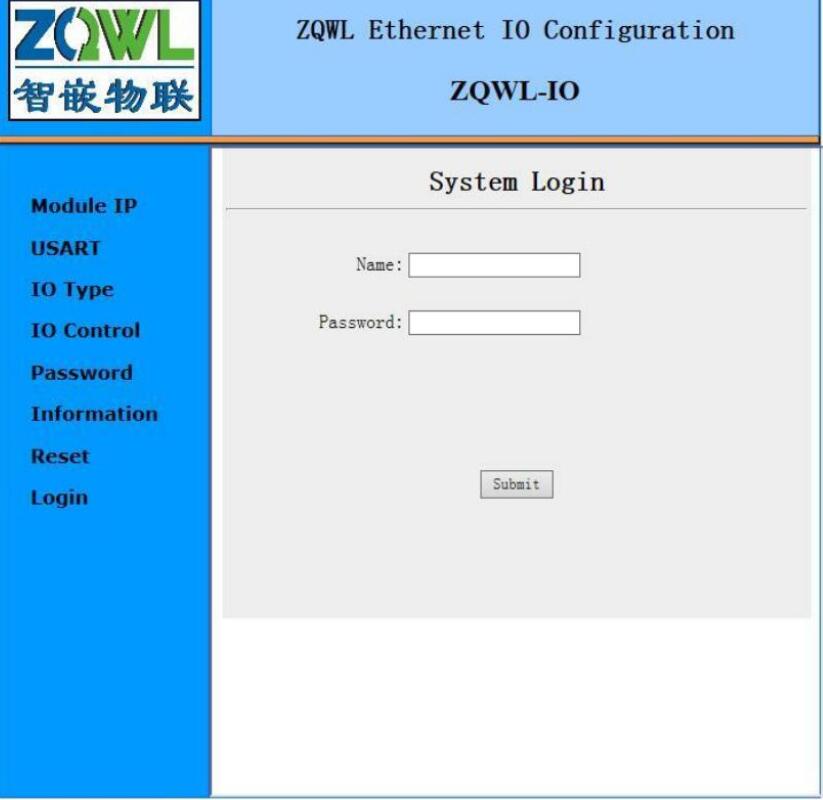

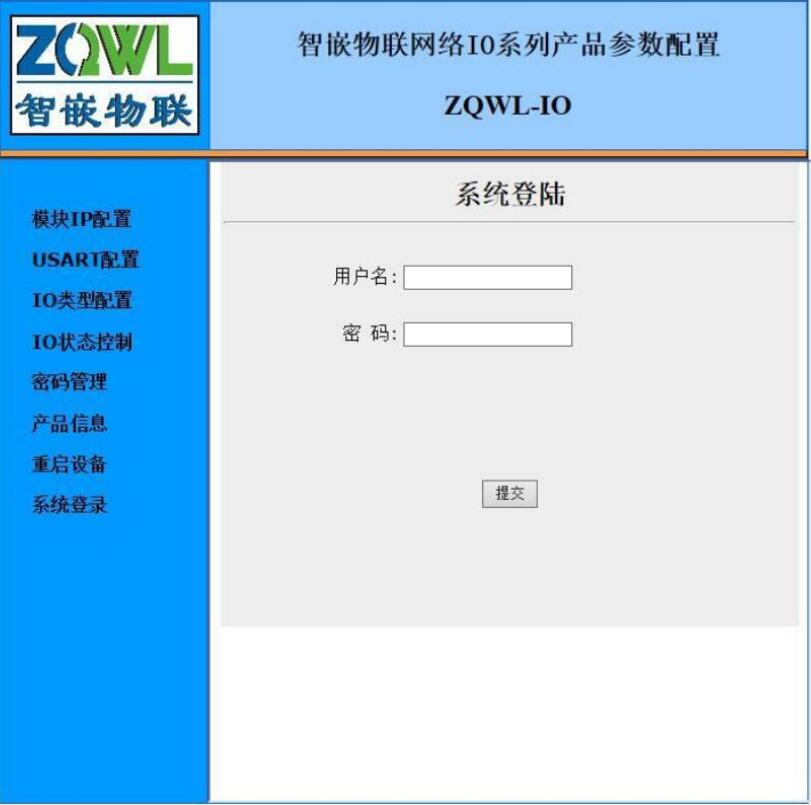

- Support static and dynamic IP
- Support netting twine cross connect automatic switching
- The work port,the target IP and the target port can be set
- Support DNS function
- In the TCP server mode,each TTL supports 4 client connections, and multiple users can manage a serial device at the same time
- Support online upgrade firmware function
- It can cross the network segment,switch,router,can work in LAN,also can work on internet
- The support agreement includes ETHERNET,ARP,IP,ICMP,UDP,DHCP,TCP;

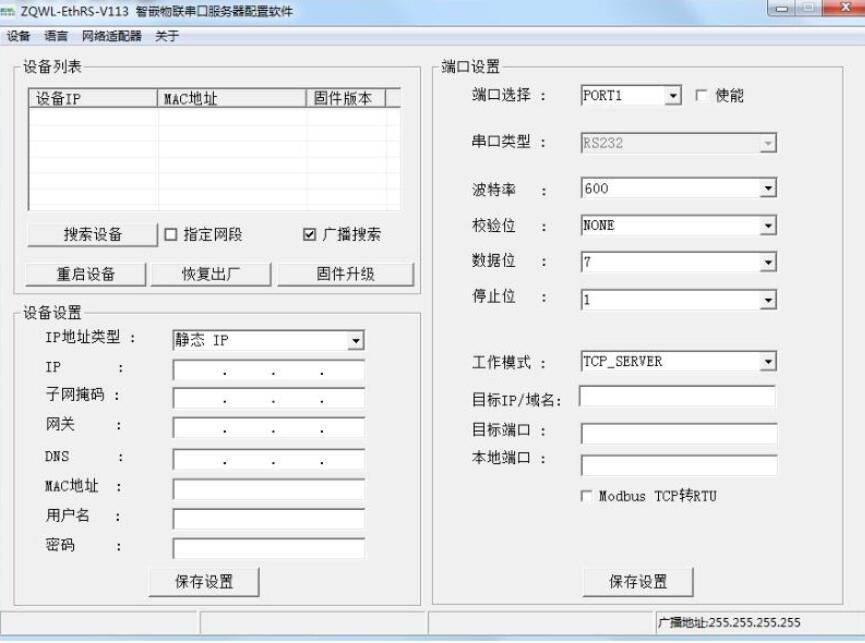

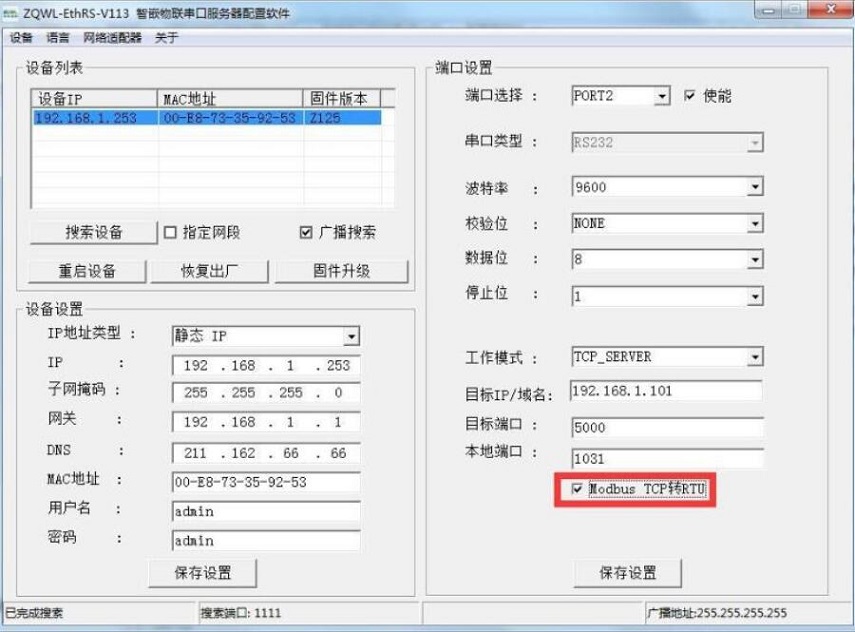

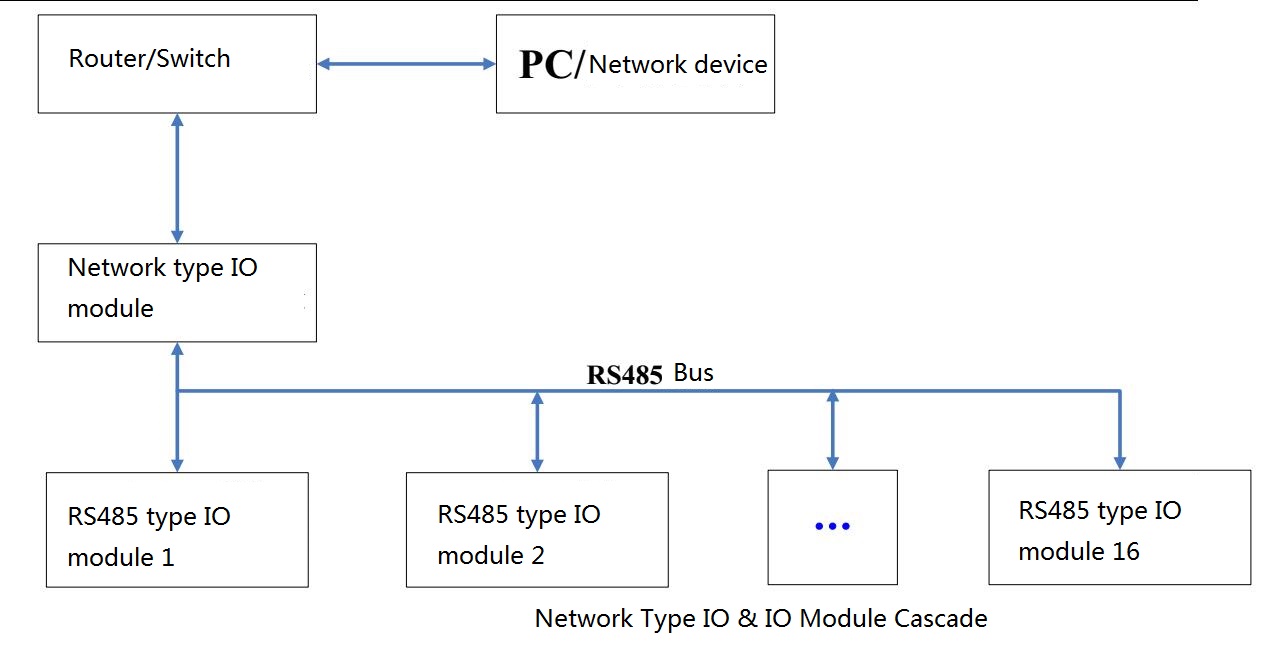

- Support Modbus TCP to RTU function.

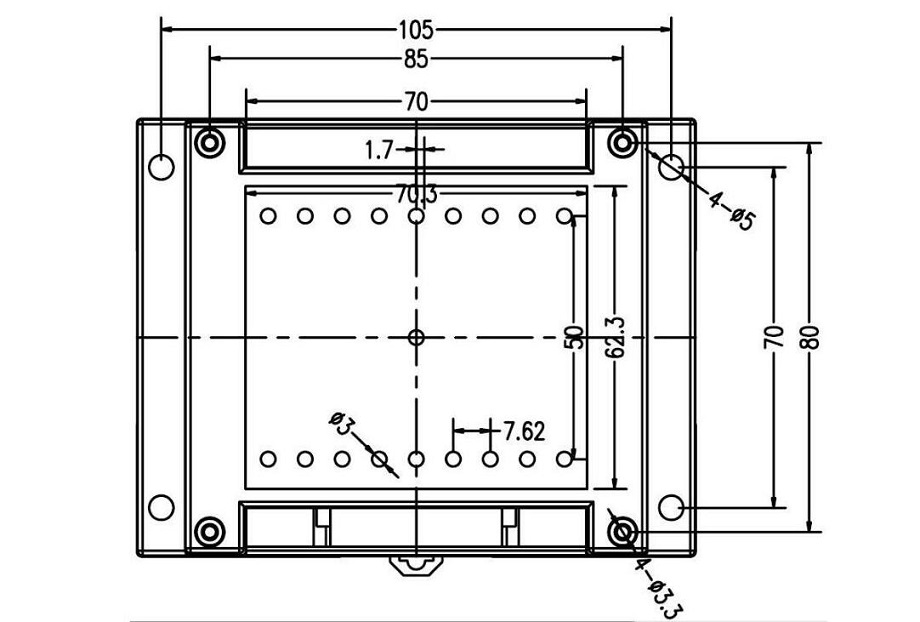

Product Specification:
1.Mode:ZQWL-IO-1CNRC4-I
2.Power voltage:11V~13V(Recommend 12V)
3.Power current:>170ma
4.Network core module:ZQWL-IO-3BTLC32
5.RS485:Communication with isolation,baud rate,support 600~460800

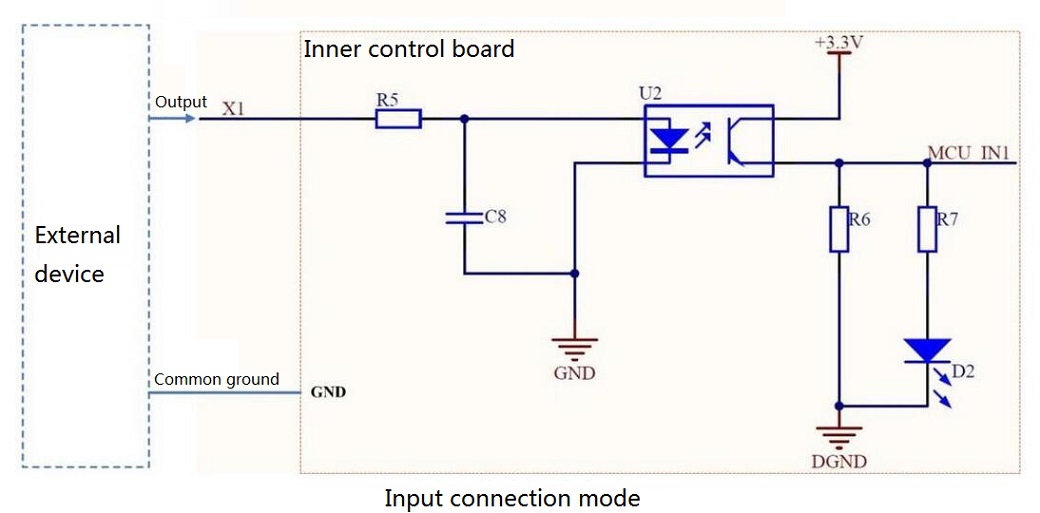

6.Input:4-channel NPN optoelectronic input
7.Output:(Relay:HF3FF-12V-1ZS.4-channel relay output,each channel has 3 ports:normally open,normally close and common end.optical isolation)
8.LED indicator:power supply,input and output have LED indicator.
9.Factory default parameter:RS485:9600,8,n,1;Control board address:1;IP:192.168.1.253

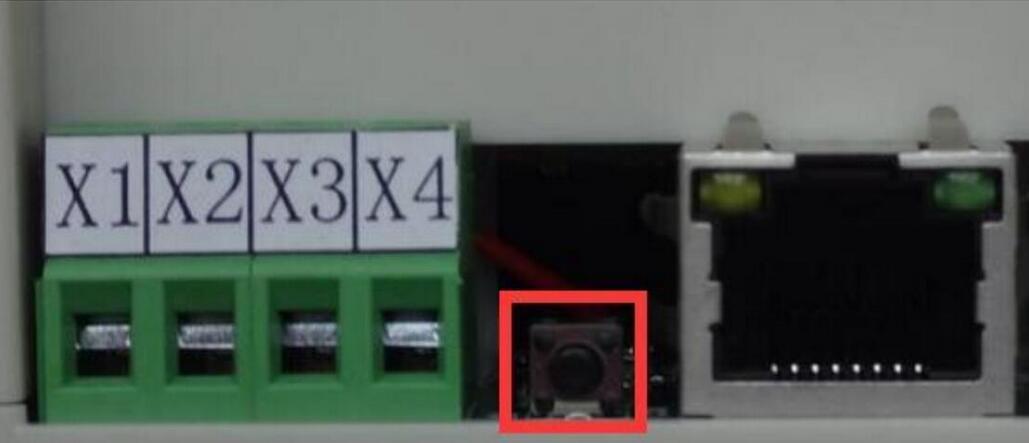

10.RESET button:<5s,system reset;>5s,restore factory setting.
Item | Voltage (V | Current(mA) | Power (W) |
4-channel normally close,normally open(no-load) | 12 | 50 | 0.60 |
1-channel normally close,normally open | 12 | 80 | 0.96 |
2-channel normally close,normally open | 12 | 110 | 1.32 |
3-channel normally close,normally open | 12 | 140 | 1.68 |
4-channel normally close,normally open | 12 | 170 | 2.04 |
Package List:
- 1 x 4-channel Network Relay Control Board
