ZQWL-IO-1CNRC8-I 8-channel Network Relay Control Board RS485/Modbus TCP/RTU Isolation

ZQWL-IO-1CNRC8-I 8-channel Network Relay Control Board RS485/Modbus TCP/RTU Isolation

Note:The voltage DC 12V/24V,optional(Please leave us a note)

ZQWL-IO-1CNRC8-I


ZQWL-IO-1CNRC8-I:12V、24V power supply,with shell,NPN input,10A current,network+serial,8-channel output,industrial level.

ZQWL-Product Type:
- IO:IO control board series
- EthRS:serial server series
- SS:sensor series
- AN:analog board card series
- GP:GPRS dtu & GPS series
- ECAN:can convert network series
- RF:RF recognise series
- ZB:zigbee communication series

Hardware Description:
- ZQWL-IO-1CNRC8-I is a 8-channel NPN optoelectronic input,8-channel relay output industrial IO control board.

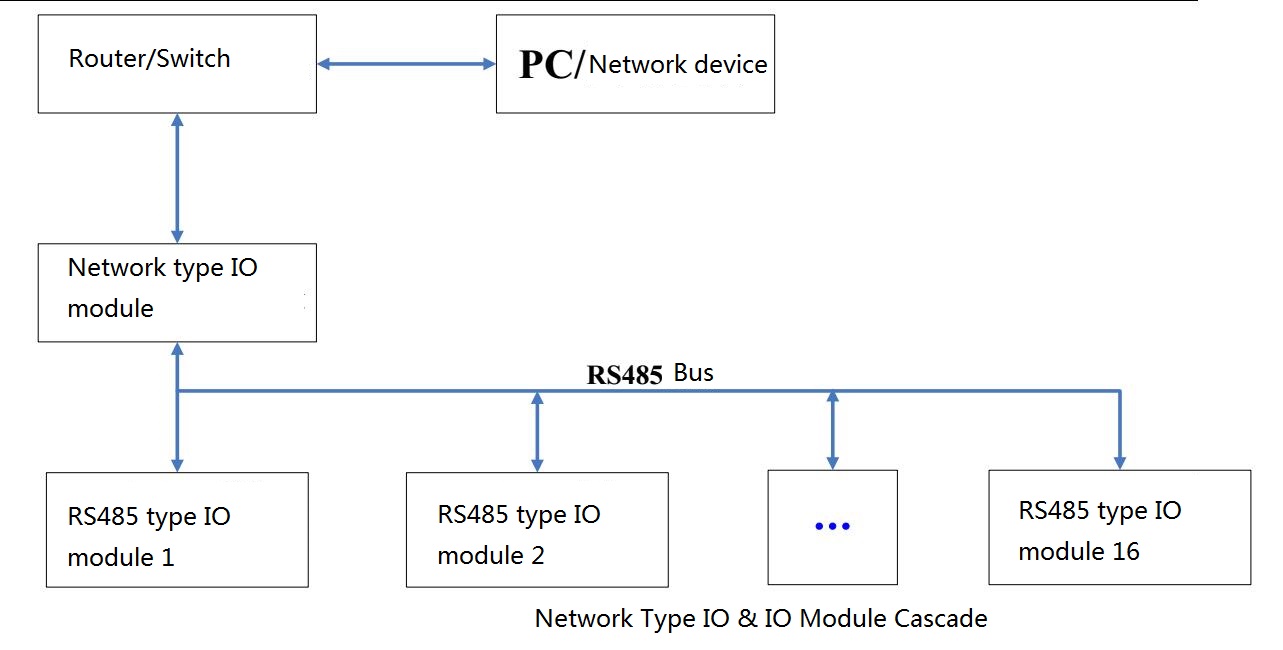

1-channel Ethernet port and 1-channel RS485 communication interface.
- The CPU power supply for control board uses isolation power,Isolated power and isolated communication for RS485.The hardware has strong anti-interference ability.The control board network part uses "ZQWL-IO-3BTLC32" core module,stable network communication.

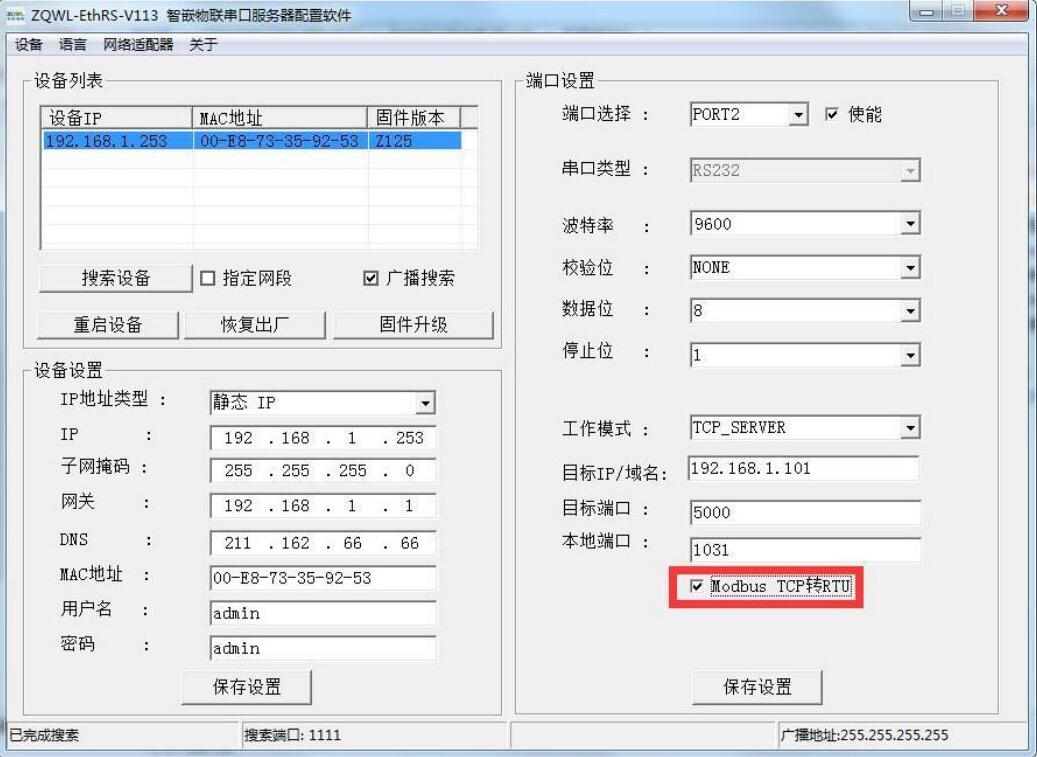

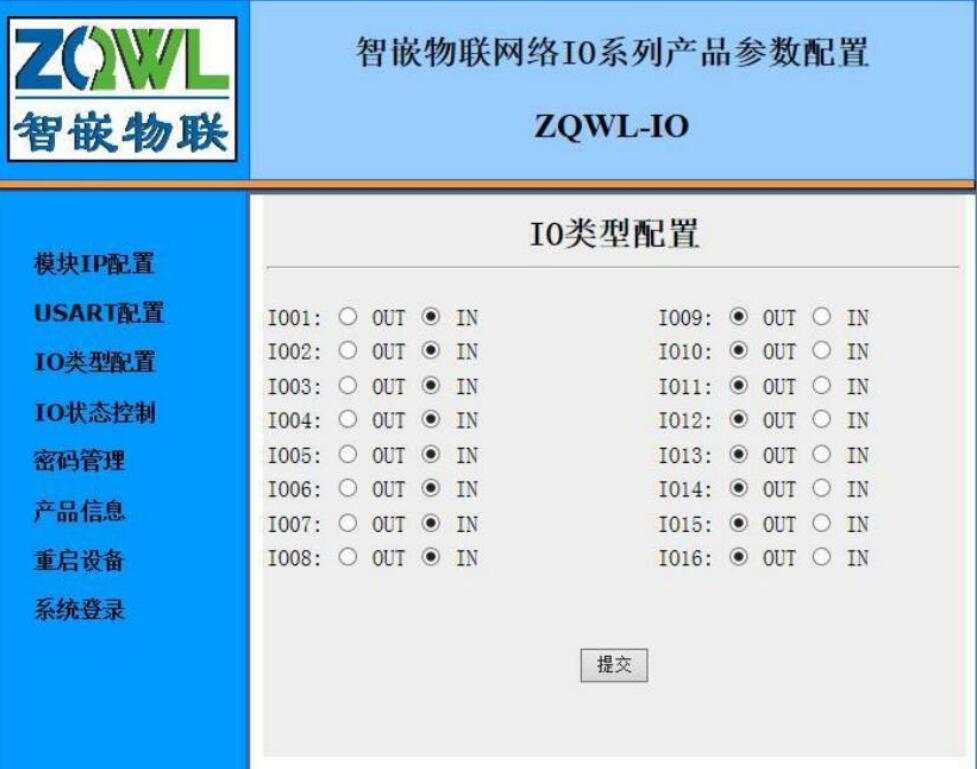

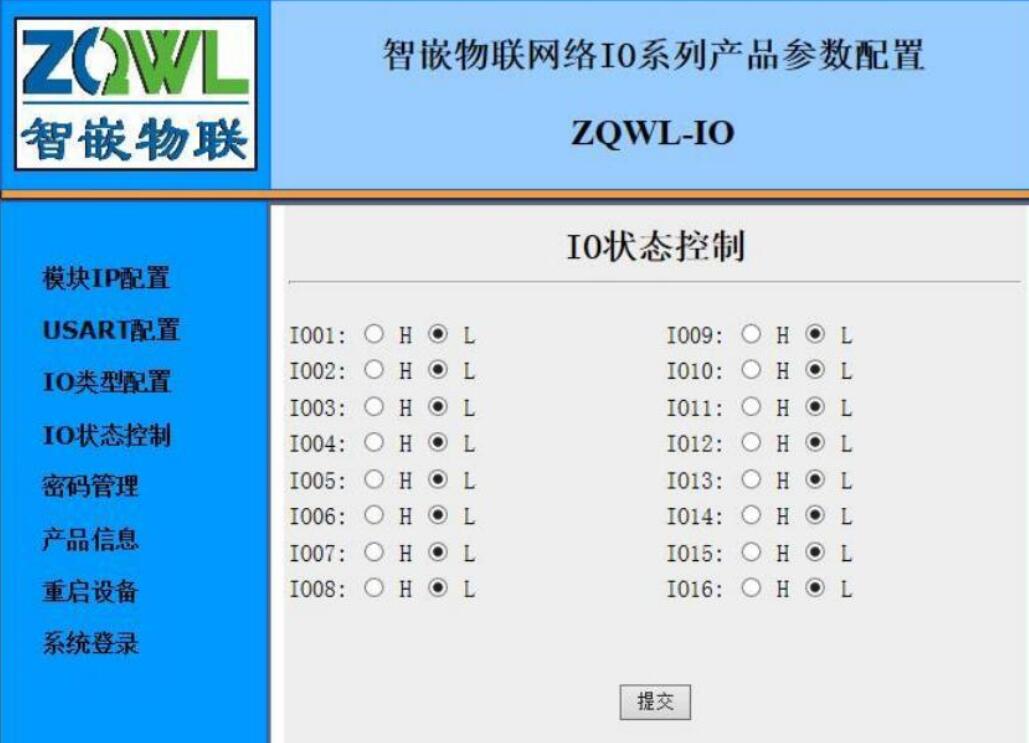

- The control board provides three communication protocols:Modbus TCP,Modbus RTU and custom protocols.

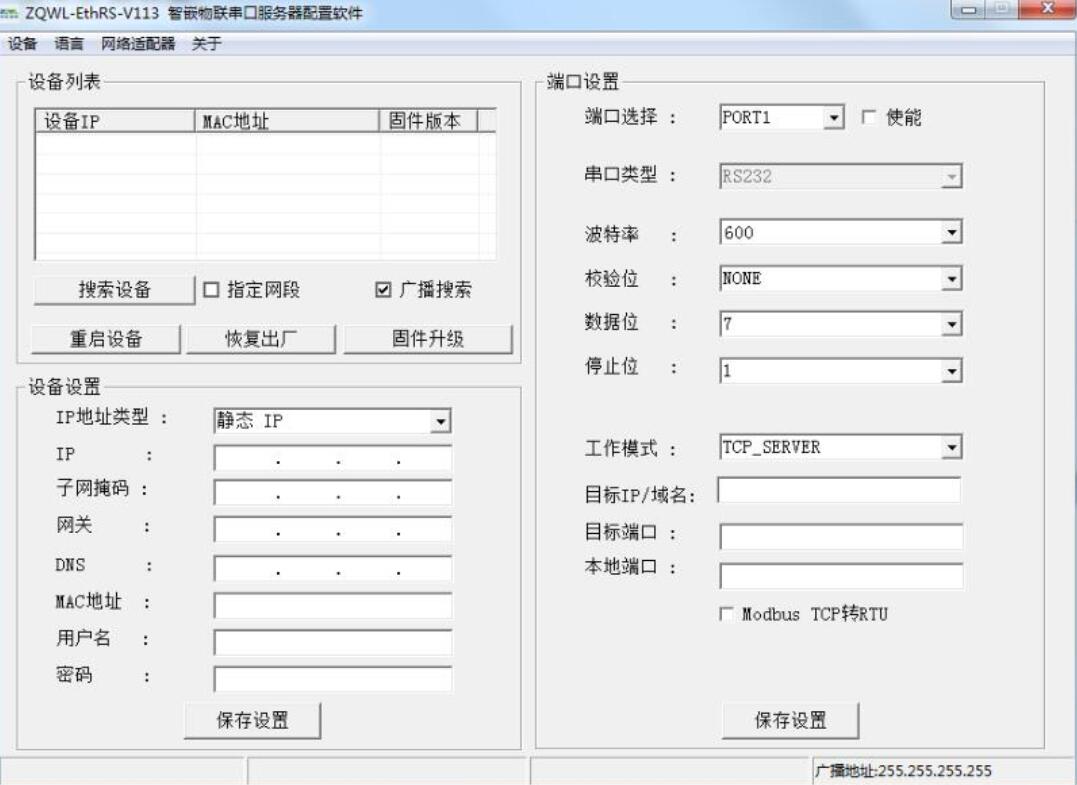

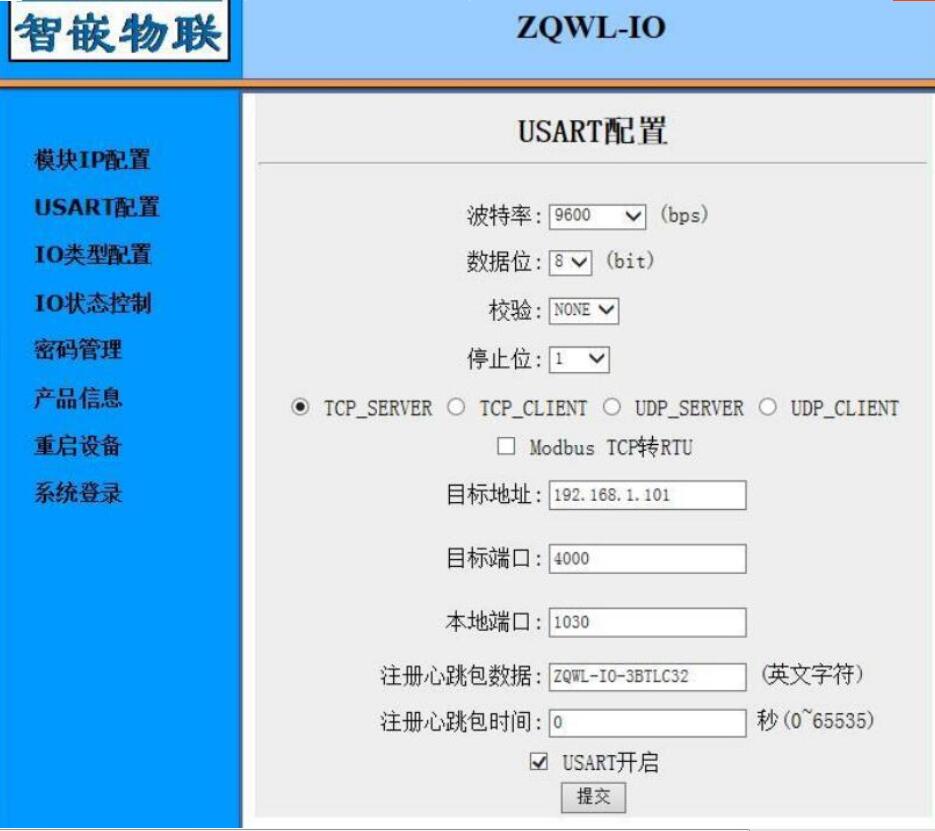

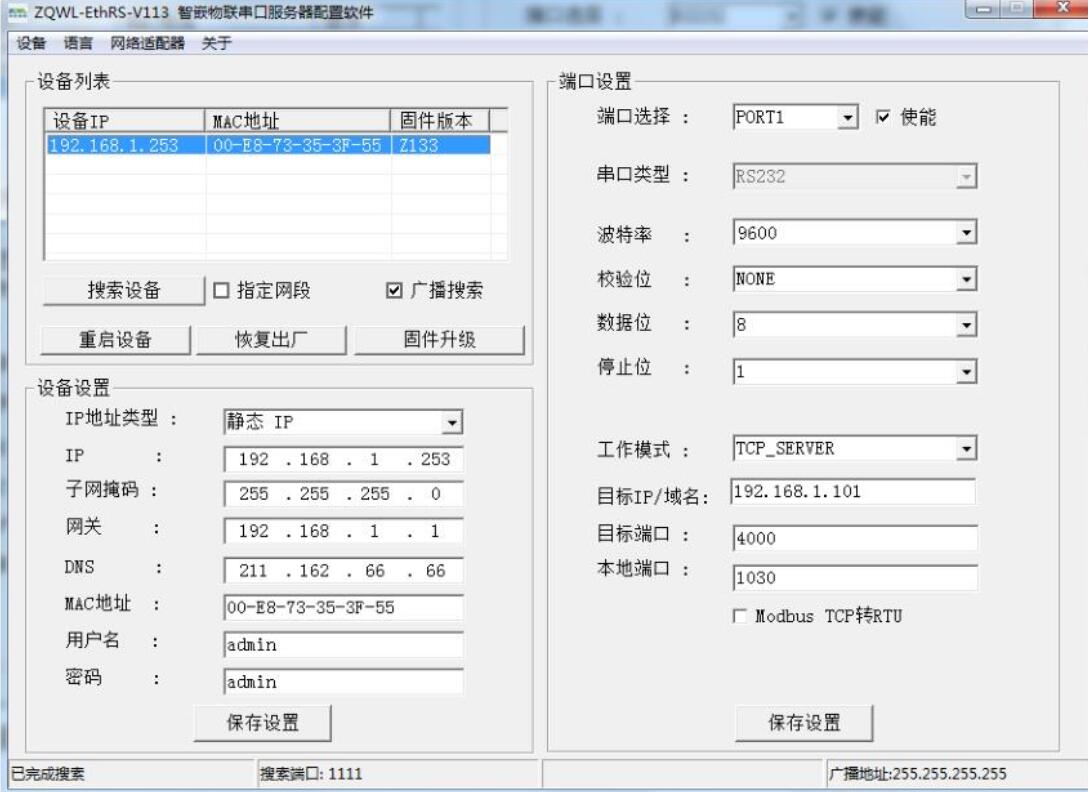

Network Characteristics:

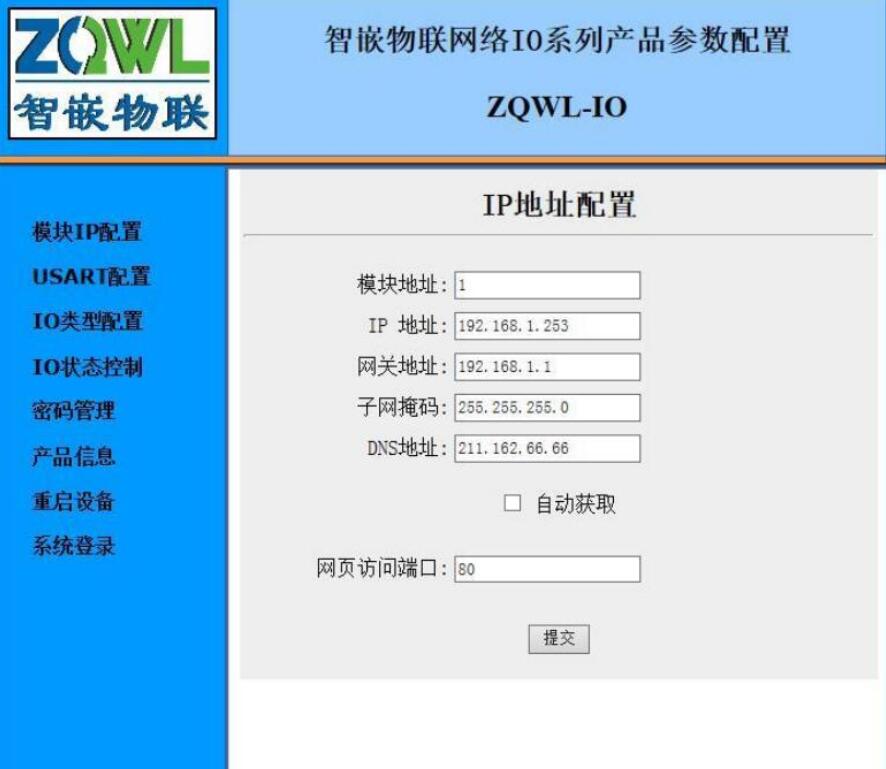

- Support static and dynamic IP
- Support netting twine cross connect automatic switching
- The work port,the target IP and the target port can be set
- Support DNS function
- In the TCP server mode,each TTL supports 4 client connections, and multiple users can manage a serial device at the same time
- Support online upgrade firmware function
- It can cross the network segment,switch,router,can work in LAN,also can work on internet
- The support agreement includes ETHERNET,ARP,IP,ICMP,UDP,DHCP,TCP;

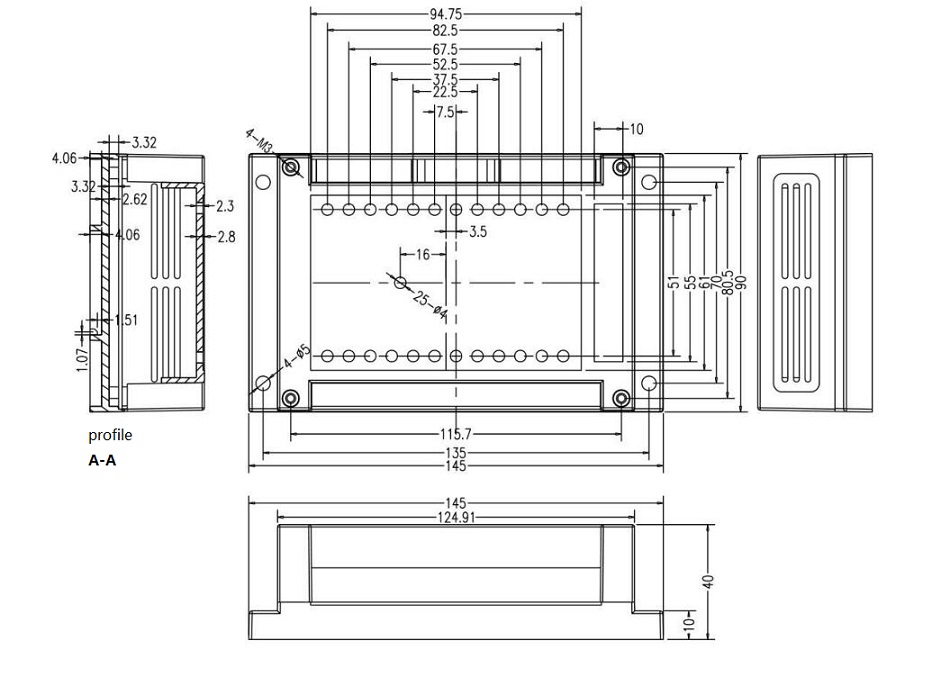

Product Specification:
1.Mode:ZQWL-IO-1CNRC8-I
2.Power voltage:11V~13V (Recommend 12V);Trigger voltage:6V-12V
3.Power current:>170ma
4.Network core module:ZQWL-IO-3BTLC32
5.RS485    communication with isolation,baud rate,support 600~460800

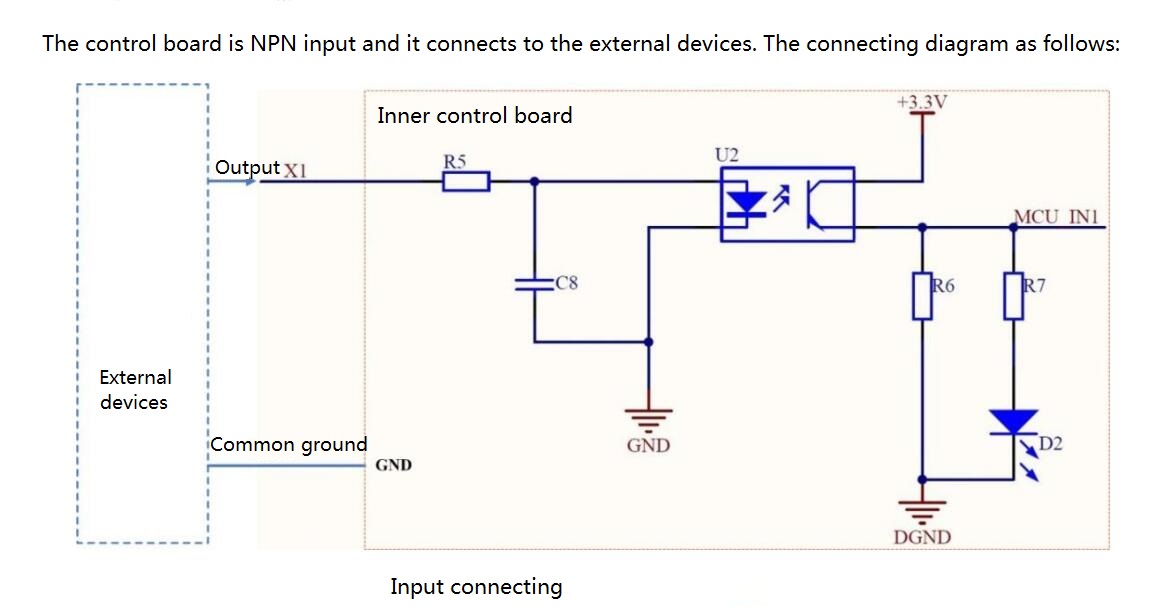

6.Input:8-channel NPN optoelectronic input
7.Output (Relay:HF3FF-12V-1ZS.8-channel relay output,each channel has 3 ports:normally open,normally close and common end.optical isolation)
8.LED indicator:power supply,input and output have LED indicator.
9.Factory default parameter:RS485:115200,8,n,1;Control board address:1;IP:192.168.1.253
10.RESET button:<5s,system reset;>5s,restore factory setting.

Package List:
- 1 x 8-channel Network Relay Control Board
