ZS-MD MD2 Car Desktop Digital Player Hifi DSD Player USB DAC Decoder Bluetooth 5.0 Dual ES9038Q2M

ZS-MD MD2 Car Desktop Digital Player Hifi DSD Player USB DAC Decoder Bluetooth 5.0 Dual ES9038Q2M

Description:
1. Support U disk, compatible with most music formats and U disk file systems on the market
- Support APE, FLAC, WAV, MP3, M4A, WMA, AIFF, AAC, DSF, DFF, ISO, CUE, even multi-channel DTS5.1 etc.
- Quick analysis of CUE and ISO
- PCM up to 384k 32bit
- DSD hard solution up to DSD256
- Support U disk common file systems such as NTFS, EXFAT, FAT32, support multiple partitions

2. The latest QCC5125 Bluetooth 5.0 module
- At the same time, it supports for APTX-HD or LDAC, which adds a lower latency protocol for aptx-ll compared to CSR8675

3. USB DAC solution compatible with digital interface for Amanero
- The USB DAC solution is ATSAM3UxC, and we have rewritten the CPLD code to adapt to MD2
- The driver is compatible with digital interface for Amanero. For Linux, MAC, mobile phones, no driver is required. Download driver for Windows:
Link for https://amanero.com/drivers/setupuac2.exe
- For computer music software foobar2000, QQ music, Netease Cloud Music, etc. you can choose DSD: WASAPI (push): speaker (Combo384Amanero) as a USB decoder output, it easily supports PCM 384K, DSD256. Your mobile phone needs to cooperate with the independent power supply board in our store, and then connect the mobile phone after independent power supply to the MD2

4. Optical input
- MD2 optical fiber is designed as an input, which greatly facilitates buyers to connect TVs, set-top boxes, CDs and other audio sources
- Abandoning AK4118, it uses CS8416 which is very easy to lock frequencies, the focus is on the slave mode, CPLD + crystal oscillator are used to avoid the I2S signal jitter of CS8416
- MD2 optical input supports up to PCM192K

5. Coaxial output supports DoP
- DSD signal is transmitted through your coaxial cable. But at the same time you need a decoder to support DoP. If the decoder DAC in your hand is a DoP-supporting decoder such as ES9038 or for mojo, you can use a coaxial fiber to connect to MD2 to play DSD music. Realize DSD transmission and playing
- Compared with MD1, MD2 upgrades the coaxial to PCM384K DoP128

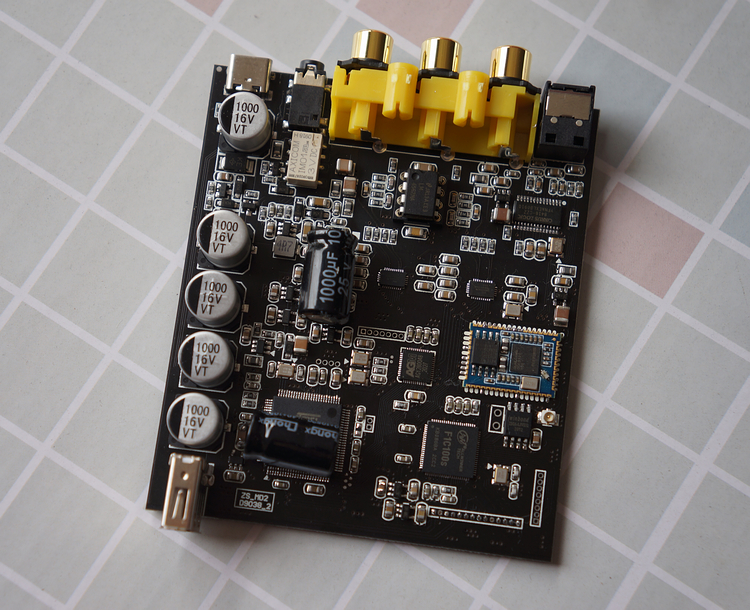

6.ES9038Q2M DAC chips
- MD2 contains two ES9038Q2M chips, one ES9038Q2M per channel

7. Power supply
- Only one TYPE C data cable is needed to power the whole machine. It adopts BOOST+N LDO design which has nothing to do with input power supply. Regardless of the quality of the input power supply, your charging adapter power supply will not have a big impact on the player. But it is recommended to use at least 5V 1A charging adapter
- It also provides a voltage of up to 13V and a total of 26V for the op amp, which is suitable for most op amps in the market that require high-voltage performance

8. Remote control.
- Equipped with a remote control, it is convenient for you to switch songs remotely on the sofa

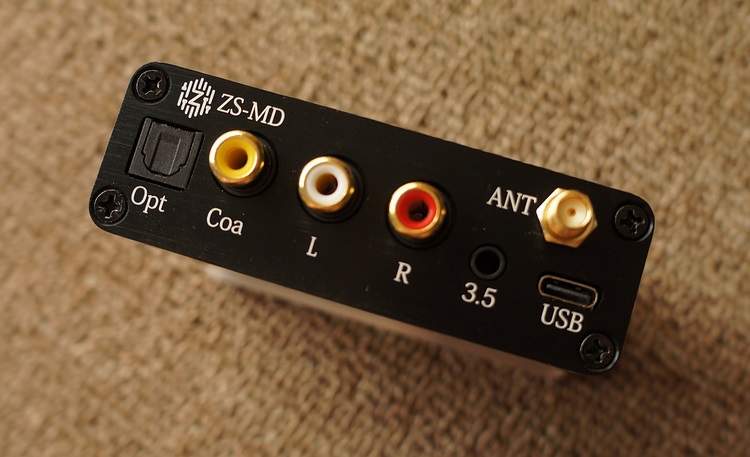

Specifications:
- Model: MD2
- Display: OLED 0.96"
- Bluetooth solution: QCC5125
- Bluetooth protocols: For LDAC & APTX-HD
- USB DAC solution: support for Amanero
- USB DAC parameters: PCM384K, DSD256
- Coaxial: PCM384K, DoP128 (output)
- Optic fiber: PCM 192K (input)
- Size: 28*84*92mm

Download Instructions and Hardware:
https://pan.baidu.com/s/1aPZ2RDXd-COR3um68JXx1g
Password: rkej

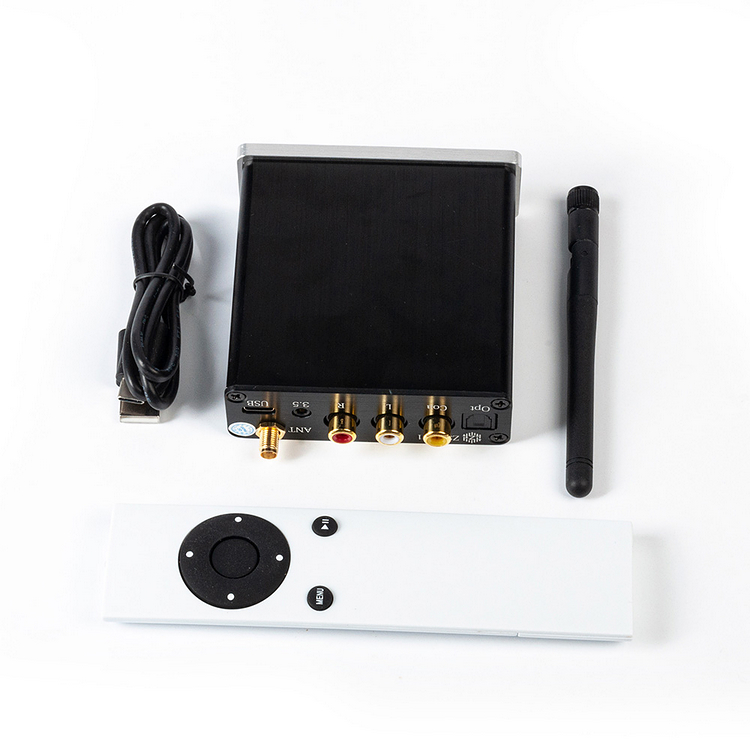

Package Included:
- 1 x Player Decoder Host
- 1 x Antenna
- 1 x USB Cable
- 1 x Remote Control

Note:
- It is assembled and ready to use.
