ZTWGP-3 Wireless Manual Pulse Generator CNC MPG Controller 6-Axis Handwheel with 3 Customized Expansion Buttons
Description:

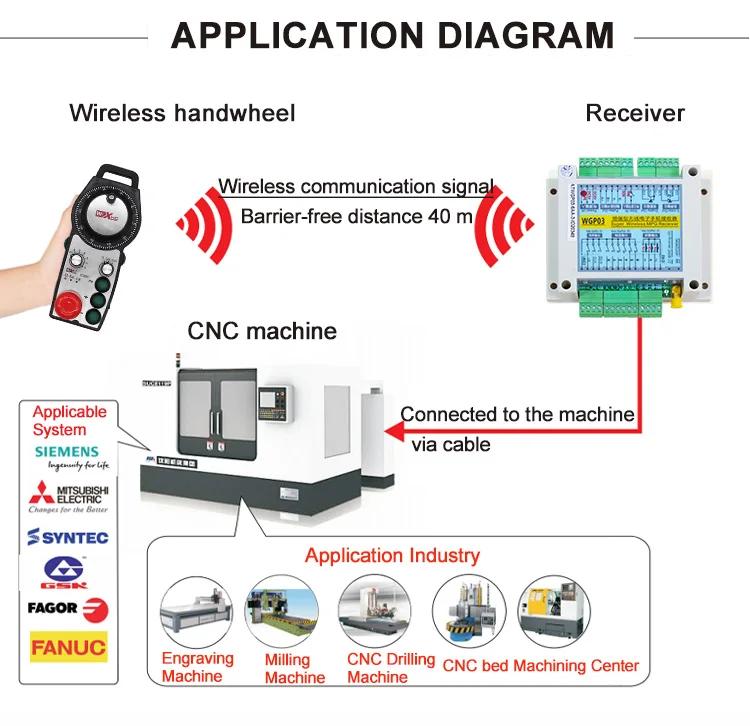

- This product is a manual pulse generator used in conjunction with CNC machine tools, and has been widely used in fields such as CNC machine tools, CNC lathes, machining centers, CNC engraving and milling machines. This product adopts wireless transmission technology, eliminating the traditional spring wire connection, reducing equipment failures caused by cables, eliminating cable dragging, oil sticking and other pollution, and making operation more convenient. This product set includes a receiver and wireless electronic handwheel. The receiver is connected to the CNC equipment through a network cable, and the electronic handwheel (hand pulse generator) communicates with the receiver through wireless transmission technology. The operator holds a handwheel and can move freely without being bound by the spring wire connection. For large-scale applications such as gantry milling, CNC lathes, walking machine tools, and cutting, it brings great convenience and improves work efficiency.
Supported System:
- Support CNC systems for Siemens, Mitsubishi, FANUC, FAGOR, NUM, LNC, SYNTEC, etc.

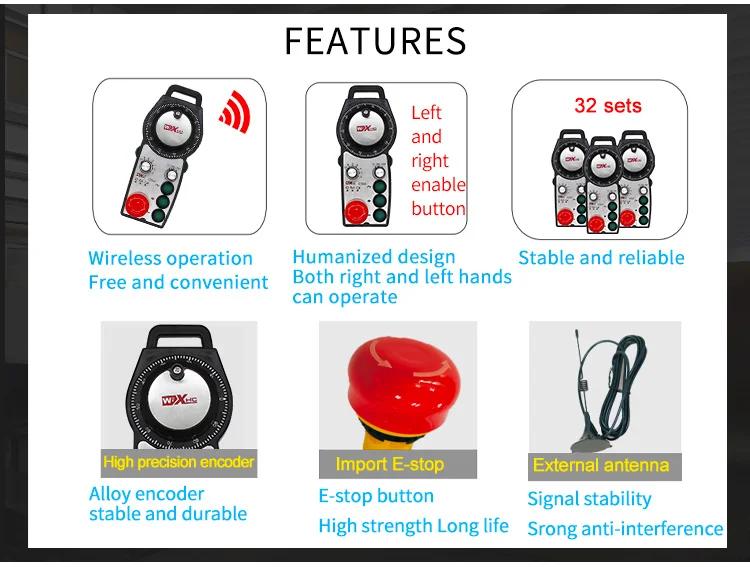

Features:
- Adopting the 433MHz wireless communication frequency band with a wireless distance of 40 meters.
- Adopting automatic frequency hopping function and using 32 sets of wireless handwheels without affecting each other.

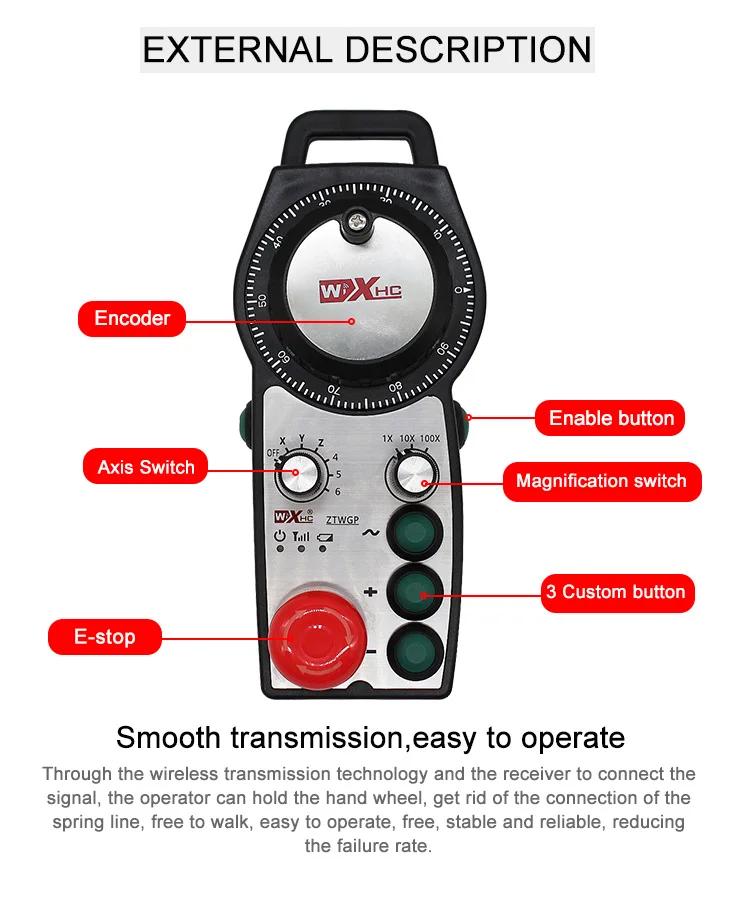

- Support emergency stop button function and expand button switch output.
- Supports 6th gear axis selection and 3rd gear magnification selection.
- Axis selection and multiplication signals support signal types such as point-to-point, binary encoding, Gray code, etc.
- Supports multiple types of pulse signals, including 5V differential pulse signals, non differential pulse signals, 24V pulse signals, etc.
- Low power design, 2 AA batteries (not included) can be used for more than 1 month.

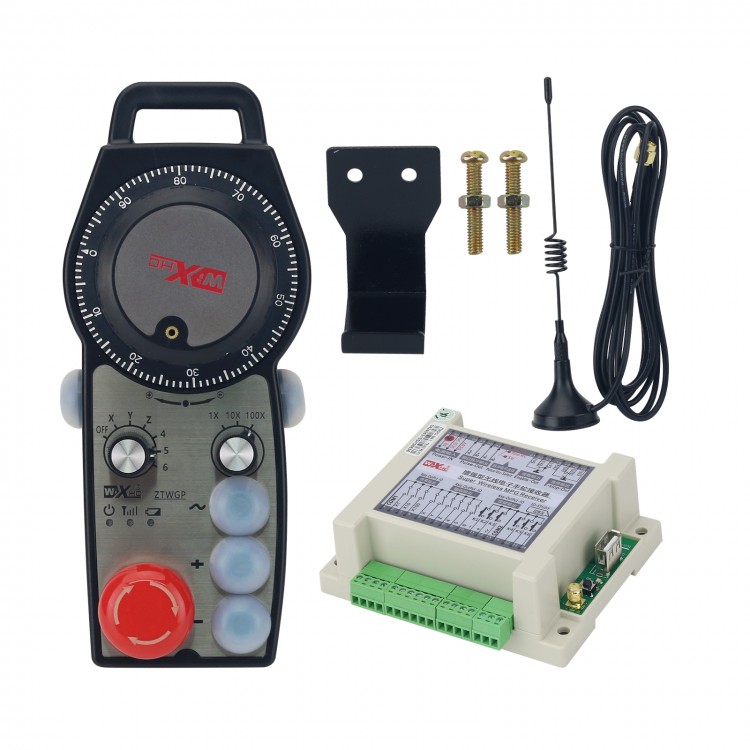

Package Included:
- 1 x MPG
- 1 x Receiver
Note:
- Please let us know your system/model number after payment.
- Battery is not included.
