ZUSDR MINI SDR Development Board Kit High Performance 4-Core 1.3G CPU Compatible with Pluto Replacement for FMCOMMS3

ZUSDR MINI SDR Development Board Kit High Performance 4-Core 1.3G CPU Compatible with Pluto Replacement for FMCOMMS3

Highlights:
- High performance 4-core 1.3G main frequency CPU
- Adopting for XCZU3EG master chip
- 154K for FPGA resources
- IIO up to 40Msps sampling rate
- Higher performance, compatible with Pluto
- Migration for FMCOMMS3 firmware

Master Chip Parameter:
- Model: XCZU3EG-2SFVC784I
- Chip level: industrial level
- Recommended max. Speed for clock: 775M is recommended for PLL/MMCM
- PS application processor model: 4-core ARM cortex-A53 1333MHz main frequency
- PS real-time processor model: dual-core ARM cortex-R5 533MHz main frequency
- DDR specification and model: DDR4, MT40A512M16LY-075:E; PS terminal, 2GB capacity, 32bit width, 2400M
- Logical unit (LC): 154K
- Lookup table (LUT): 71K
- DSP unit multiplier: 360pcs
- Trigger (Flip Flops): 141K
- Block Ram: 7.6Mbit
- Temperature range: -40℃ ~ 85℃
- Speed level: -2

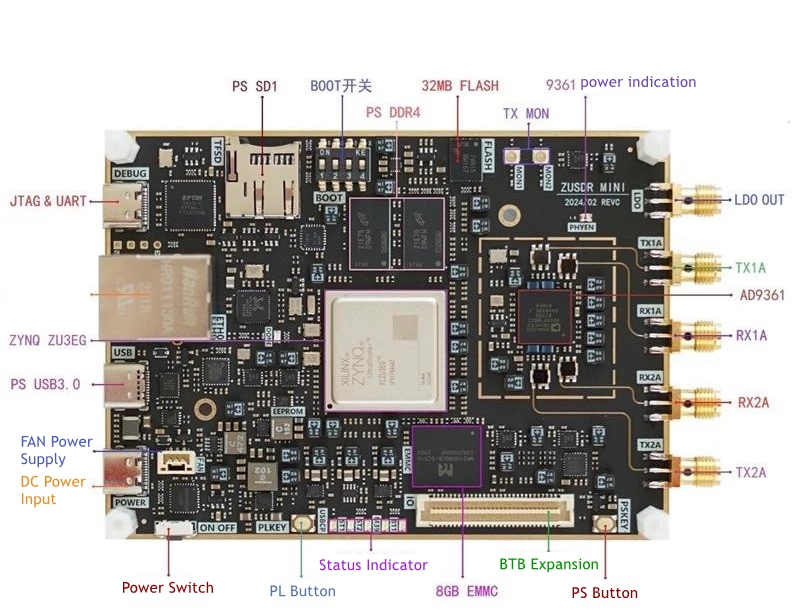

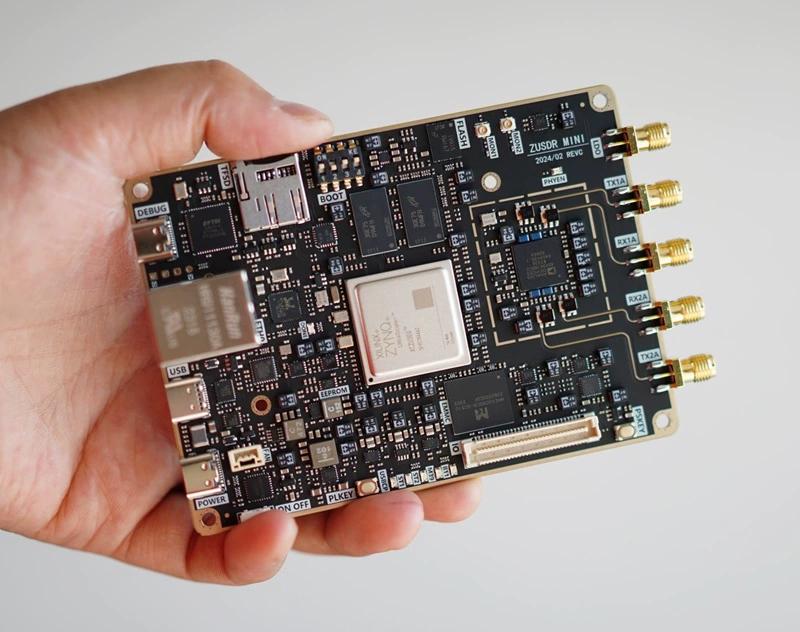

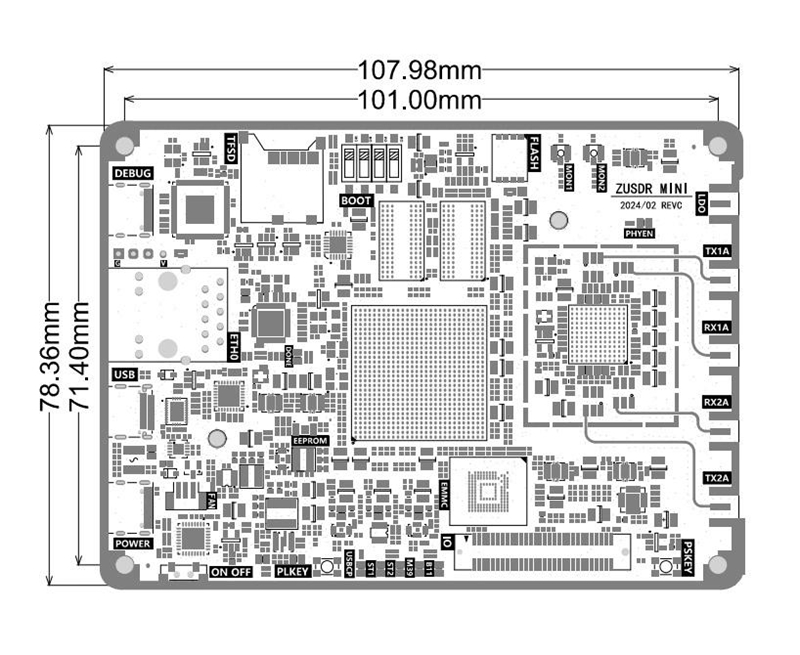

ZUSDR MINI Functional Interfaces:
- Development board power supply: powered through a dedicated TYPE-C interface, 9-12V DC-IN interface, which has PD 9V function
- Development board clock: 33.33M (PS), 50M (PL), 26M (PS GTR)
- Ethernet: gigabit RTL8211E-VL, PS GEM3
- USB interface: USB3.0 SLAVE, support USB3.0 virtual network port
- Debugger: onboard UART + JTAG (FTDI solution) support ARM and FPGA development
- Onboard power monitor: AD7291 chip, used to monitor various peripheral power sources of AD9361
- EEPROM: one FM24C02 EEPROM
- SD card slot: SD1 of PS, 2.0 interface, can be started (SD support up to 32G)
- EMMC memory: SD0 of PS, MKEV008GCB-SC510, 8GByte
- LED and button: power on/off button, PS/PL button (currently not functional, reserved), status indication, AD9361 power indication, etc
- Start setting switch: a BOOT dip switch for startup settings
- Onboard FLASH: 32MByte, model MT25QU256ABA1EW9-OSIT
- Expansion IO port: out of 40 IOs, 34 x 1.8V single-ended HP BANK IOs and 6 x 3.3V single ended HD BANK IOs do not support voltage adjustment. Strictly equal in length. The connector uses 60P X0802WVS-60AS-LPV01
- External power supply interface: 1
- Note 1: Except for DC-IN which can provide power, all TYPE-C are suspended without power supply function, so there is no need to worry about accidental insertion.
- Note 2: The external LDO interface SMA can meet the power supply needs of low-power front-end LNA or low-power PA modules.

AD9361 Parameter:
- Master chip model: AD9361bbcz
- RF range: 70MHz - 6.0GHz
- Signal data bandwidth: 200K - 56MHz
- Transceiving channels: 2-channel transmitting and 2-channel receiving, IQ modulation, support simultaneous transmission of 4 sets of data

RF Part Functional Interface Parameter:
- Antenna interface: SMA female connector
- IQ data sampling rate:
  Gigabit Ethernet port: constrained by the gigabit network port limit, about 28 - 29Msps;
  USB3.0: RNDIS about 5Msps, NCM mode up to 40Msps
- Factory firmware driver: for ADI official lib iio (based on ZCU102 + FMCOMMS3 migration)
- Clock: default using 1pcs 40MHz/5ppm passive crystal oscillator; and including 1pcs 40MHz/0.5ppm TCXO
- Power monitor: 2 x TX_MON interface, IPEX interface
- RF front-end balun: model TCM1-63AX+, bandwidth 10MHz-6.0GHz
- RF LDO linear power supply: wireless LO power supply 1.3V/1.5A power supply 2-channel LDO
- Impedance control: RF front-end to SMA antenna, control 50ohms microstrip line
- Note 1: For Windows, it is recommended to prioritize the use of gigabit networks, which have higher performance.
- Note 2: USB3.0 port mode can be set, and RNDIS mode has better compatibility than NCM mode.
- Note 3: NCM mode can only be used for Linux, with a sampling rate efficiency of up to 40MSPS.

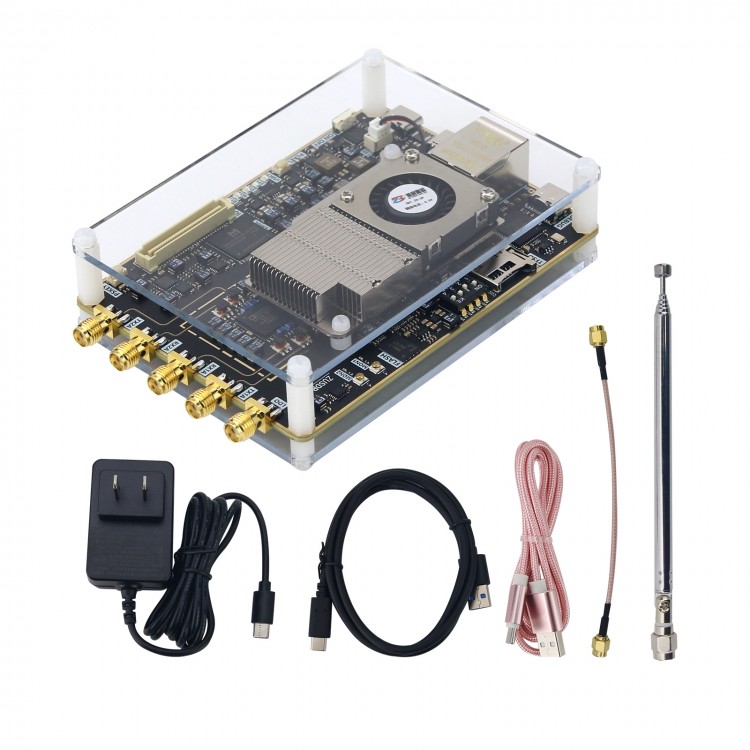

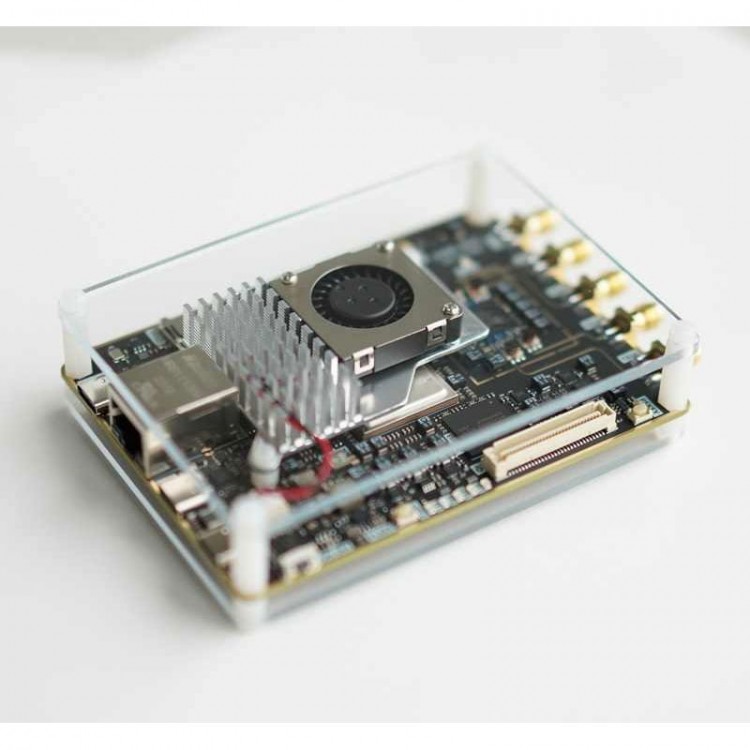

Package Included:
- 1 x Development Board
- 1 x Type-C 2.0 Data Cable
- 1 x Type-C 3.0 Data Cable
- 2 x Acrylic (installed on the development board)

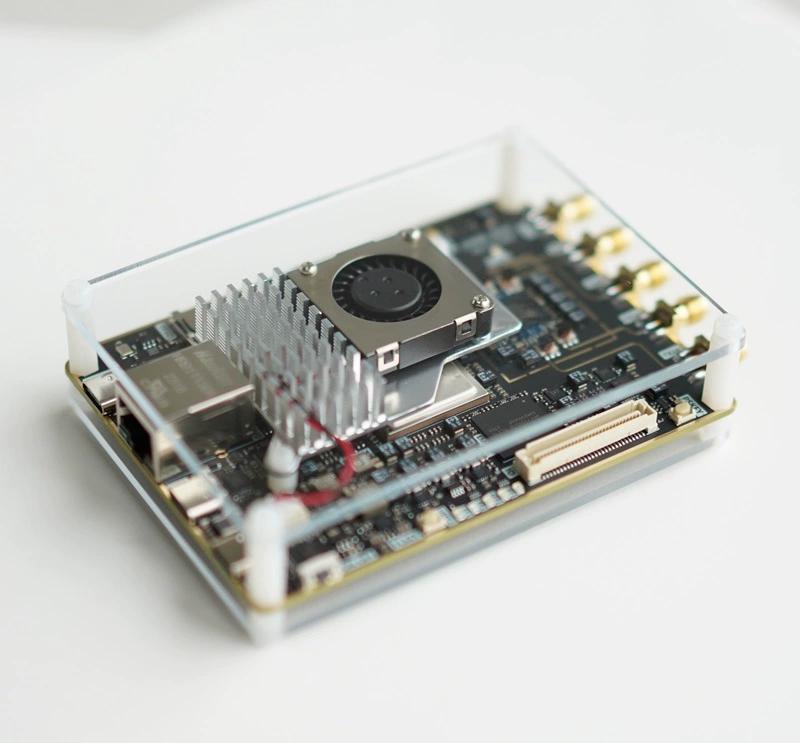

- 1 x Heat Dissipation Module (installed on the development board)
- 1 x Set of Nylon Screws and Stud (installed on the development board)
- 1 x 9V/2A Power Adapter
- 1 x SMA Adapter Cable
- 1 x FM Telescopic Antenna

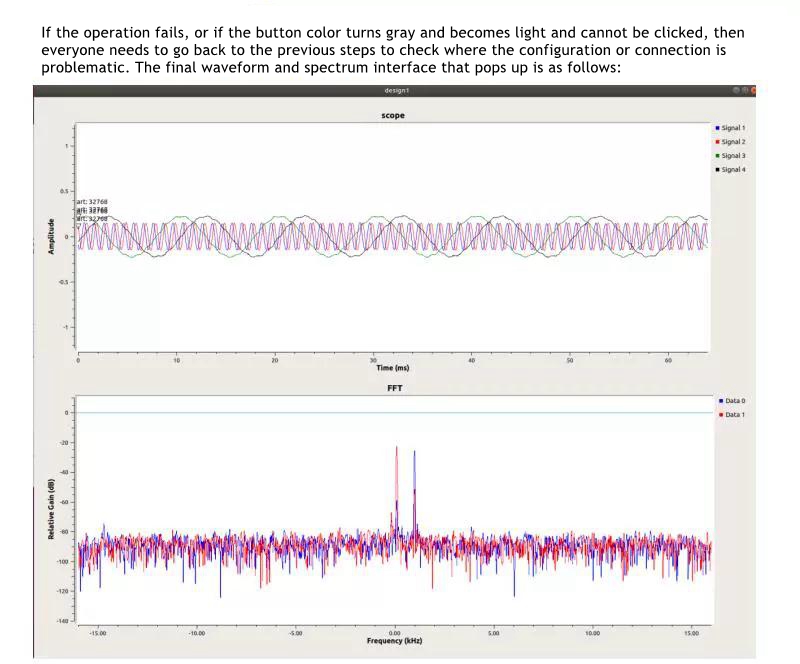

Precaution:
- For IIO Scope instruction: https://wiki.analog.com/resources/tools-software/linux-software/iio_oscilloscope
- Please contact us for development resources after receiving the product.
