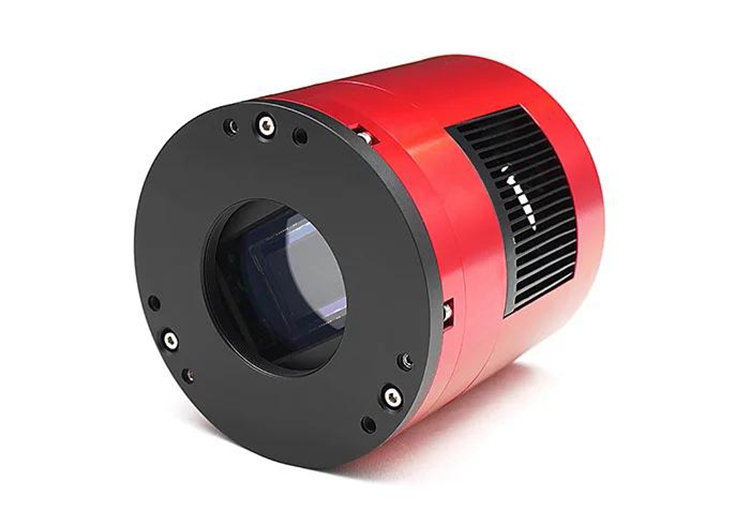

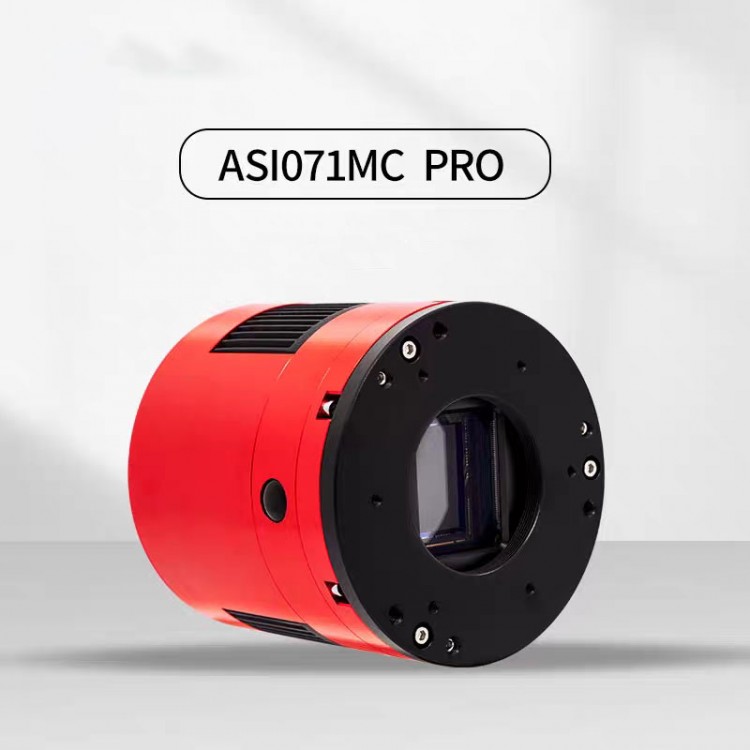

ZWO ASI071MC-PRO APS-C Cooled Color Astronomy Camera 4944x3284 USB3.0 256MB DDR3 Deep Space Camera

ZWO ASI071MC-PRO APS-C Cooled Color Astronomy Camera 4944x3284 USB3.0 256MB DDR3 Deep Space Camera

Specification:
- Sensor: for SONY IMX071 CMOS
- Diagonal: 28.4mm
- Resolution: 16Mega Pixels 4944x3284
- Pixel Size: 4.78µm
- Bayer Pattern: RGGB
- Max FPS at full resolution: 10FPS
- Shutter: Rolling shutter
- Exposure Range: 64µs-2000s
- ROI: Supported

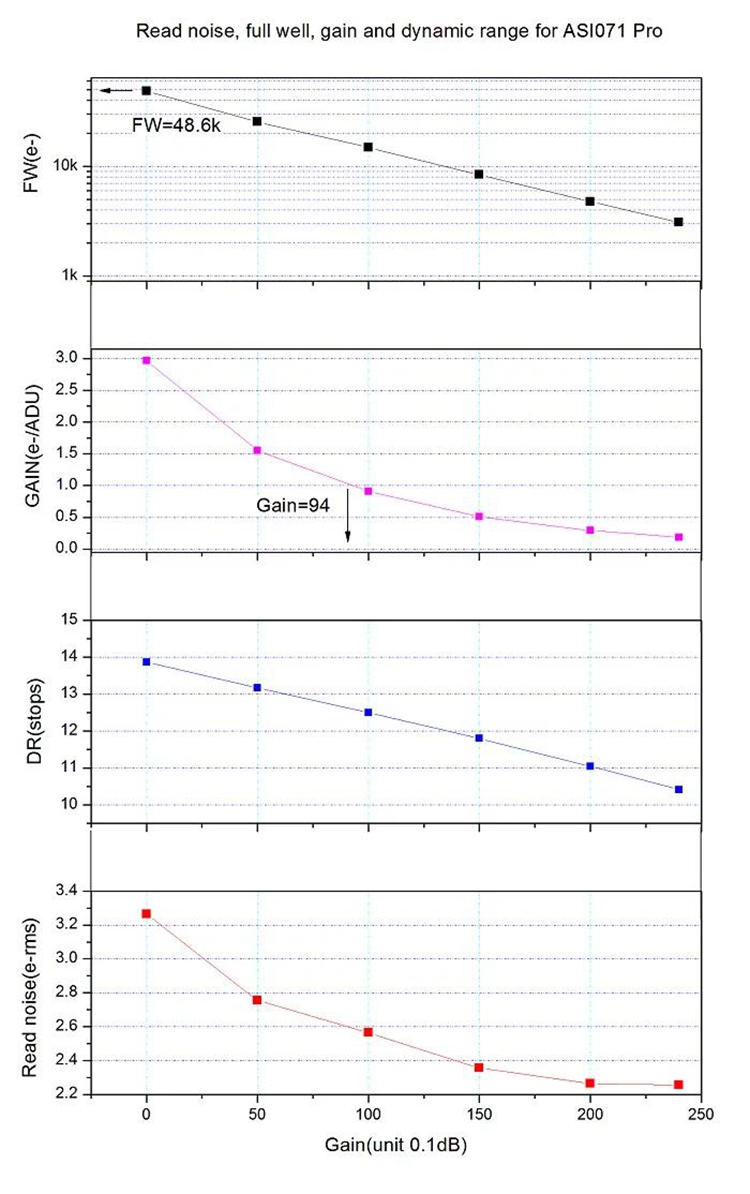

- Read Noise: 2.3e at 24db gain

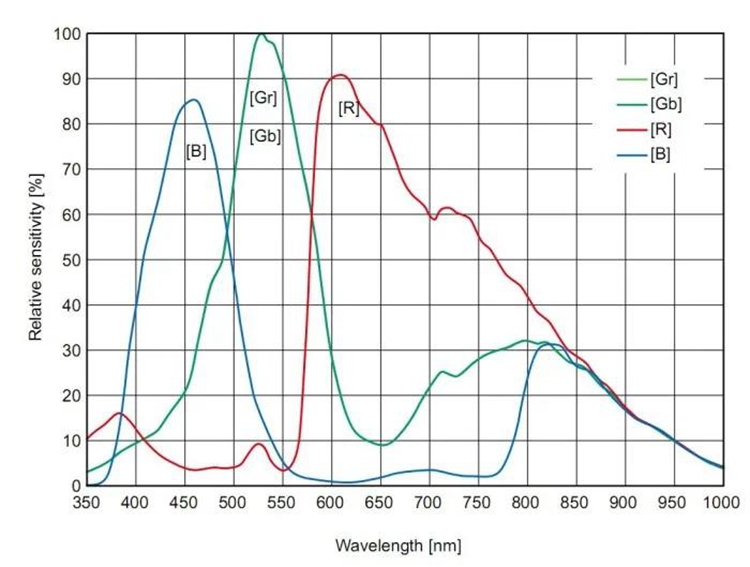

- QE peak: TBD
- Full well: 46ke
- ADC: 14bit
- DDRIII Buffer: 256MB
- Interface: USB3.0/USB2.0
- Adaptor: M42 x 0.75
- Protect window: AR window

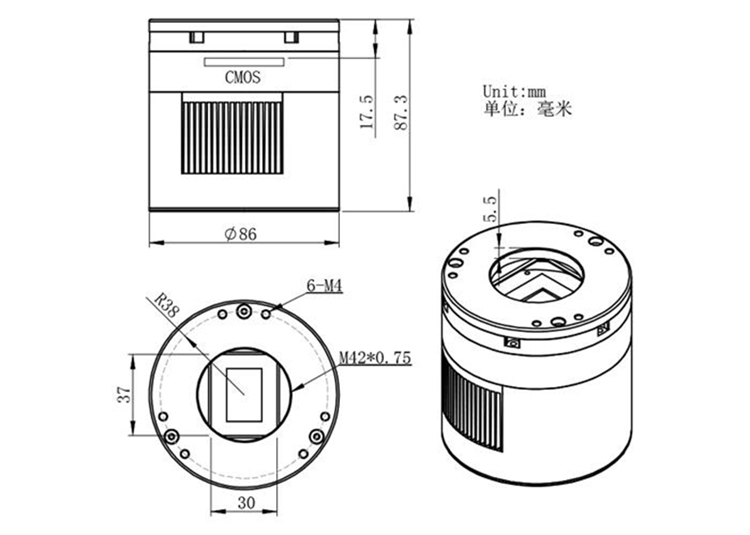

- Dimensions: 86mm (diameter)
- Weight: 640g

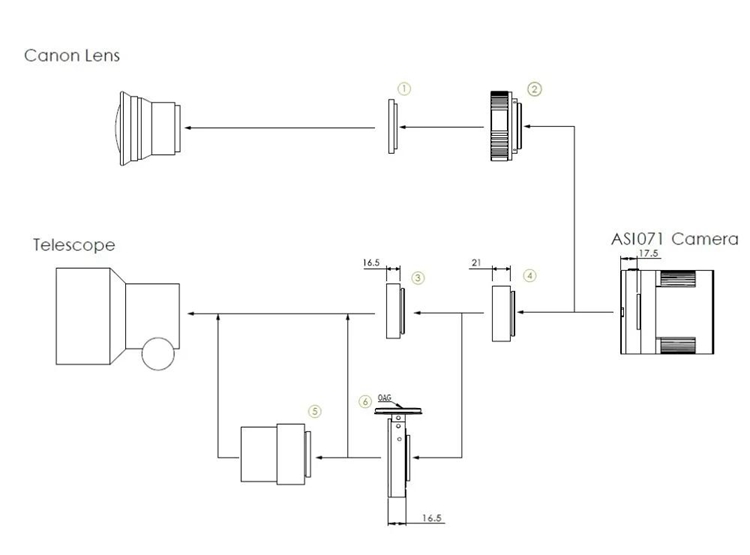

- Back focus distance: 17.5mm
- Cooling: regulated two stage TEC
- Delta T: 35°C-40°C below ambient
- Cooler power consumption: 12V at 3A Max
- Working temperature: -5°C ~ 45°C
- Storage temperature: -20°C ~ 60°C
- Working relative humidity: 20% ~ 80%
- Storage relative humidity: 20% ~ 95%
- Supported resolution: 4944 x 3284 10fps; 1920 x 1200 28fps; 1280 x 1080 33fps; 640 x 480 70fps; 320 x 240 134fps

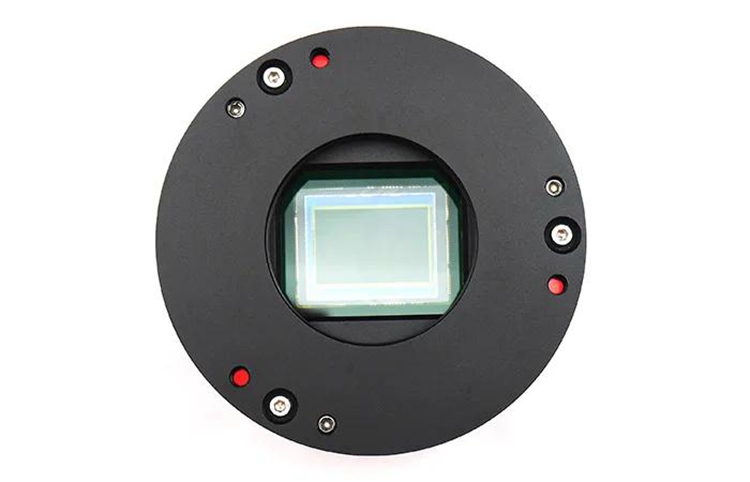

IM071 Chip:
- Most famous sensor for Sony
- APS-C (1.8″) Diagonal 28.4mm
- 16M Pixel (4944 x 3284)
- Very low read noise: 2.3e at 24db gain; 3.3e at lowest gain
- 14Bit ADC: provide real 14bit dynamic range
- Electronic shutter: no vibration problem with mechanical shutter

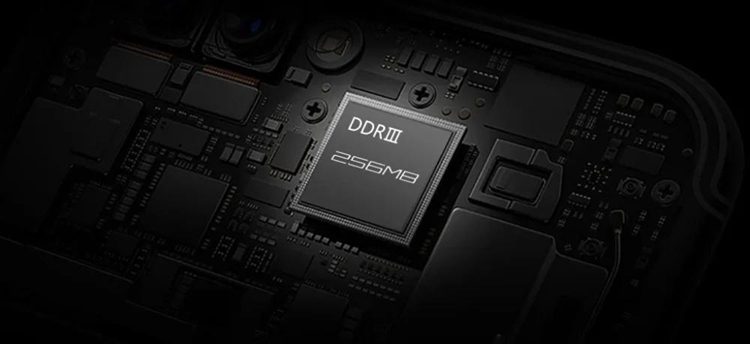

DDR Memory Buffer:
- ASI071MC Pro camera includes a 256MB DDR3 memory buffer to help improve data transfer reliability. Additionally, the use of a memory buffer minimizes amp-glow, which is caused by the slow transfer speeds when the camera is used with a USB 2.0 port.

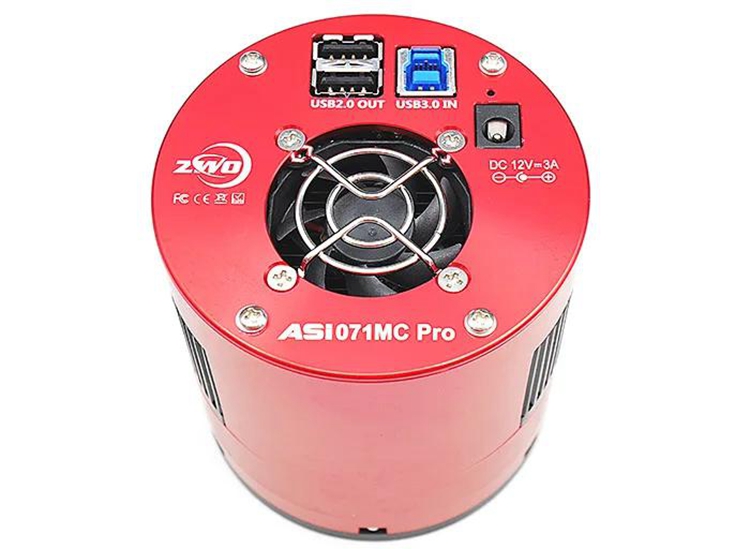

USB 3.0 Port & USB2.0 HUB:
- USB 3.0 Port: Provide 5Gb bandwidth to make it possible for ASI071MC Pro to run at 10 fps (14bit, normal mode) at full resolution(16Mega).
- USB 2.0 HUB: Can connect with various accessories, including a filter wheel, guide camera or electronic focuser, allowing you to manage your cables better. There are two short 0.5m USB2.0 cables included with the ASI071 Pro. The hub is powered by the external power supply if you connect one.

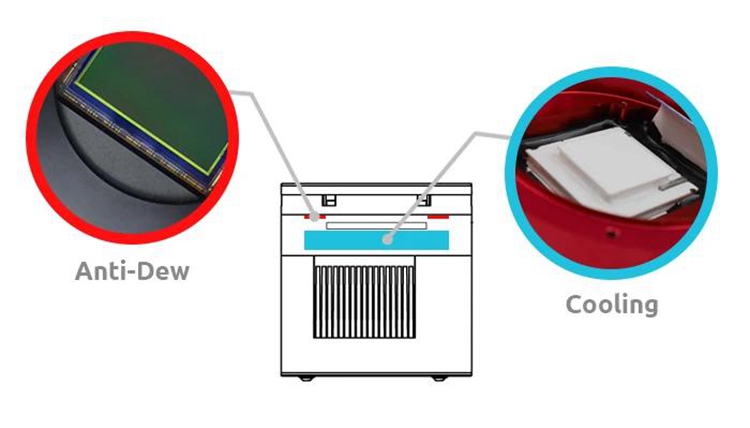

Anti-dew and Cooling System:
- ASI071MC Pro has a two-stage TEC cooling system that allows deep cooling (35°C-40°C below ambient). You will need an external power supply to power the cooler. An AC-DC power adapter is not included in this package.
- We recommend using a 12V/3-5A or more DC adapter for cooler power supply (2.1 x 5.5, center positive).
- Using a battery with 9-15V is also suitable for the cooler power supply.
- The anti-dew heater will heat the AR protect window to avoid any dew problems. The heat anti-dew heater power is around 3.6W and can be turn off in software to save power.

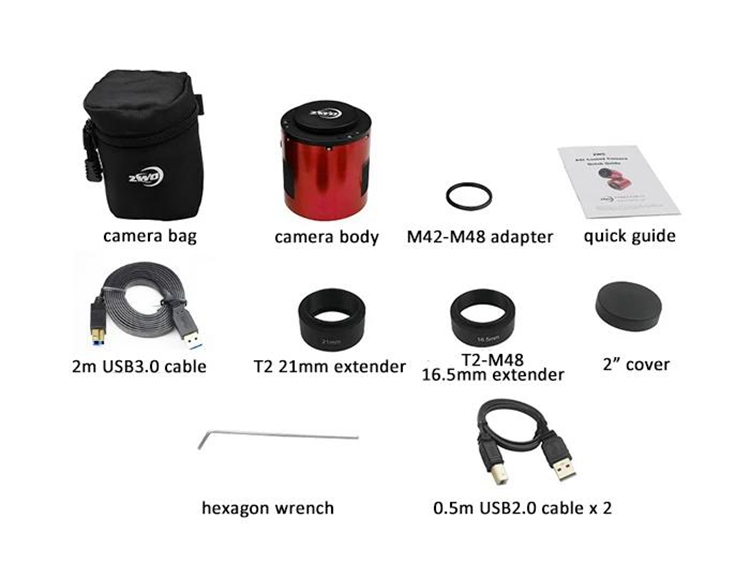

Package Included:
- 1 x Set of ASI071MC-PRO
