Description:
Introducing 5V EAF, this electronic focuser, like its previous version, enables precise, dynamic focus control for planetary and deep-sky imaging, while only connected to a 5V USB-port.

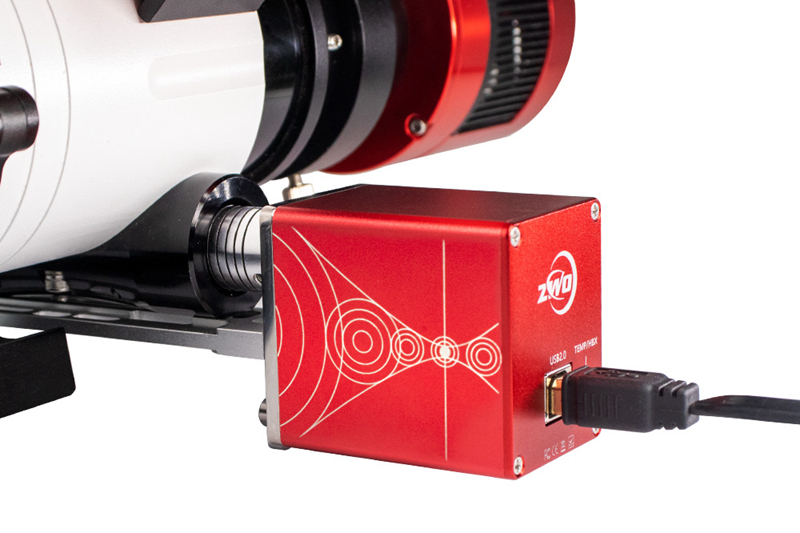

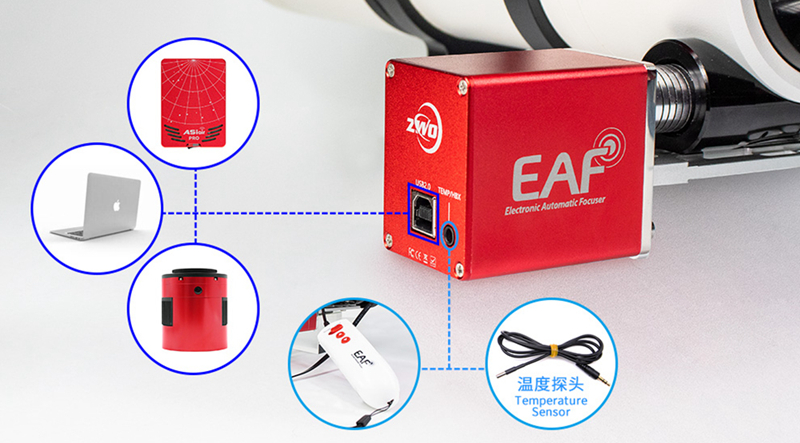

Compared to the old version of the EAF focuser, the main change of the 5V EAF is to eliminate the need for a 12V power supply port. Now you can directly connect it to your camera, laptop or ASIAIR PRO via the USB 2.0 port and use a cable for both data transmission and power supply! This makes the cable management much easier, as well as reducing the need for additional power outlets.

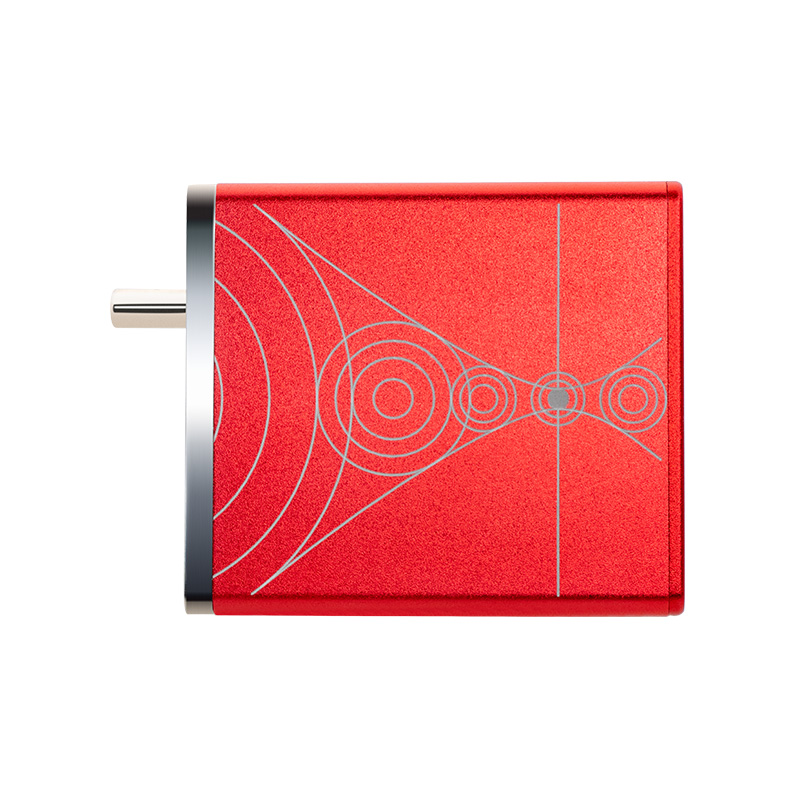

The innovative decorative pattern on the EAF is inspired by the changes of Airy disk during focusing showing how the focusing curve gives a local minimum at best focus – giving an easy explanation on how the EAF works just with a glance on the cover!

Features:
- Highly integrated design
- Support for ASCOM platform and various ASCOM-compatible third-party software
- Support for INDI
- Support original software such as for ASIAIR and ASIStudio
- Support automatic focusing for DSO imaging
- Support handle controller and manual focusing
- Support temperature sensor
- USB HID device and driver-free
- Stable and durable

Support list:
- For SkyWatcher Astrophotography Reflectors, SkyWatcher Black Diamond, SkyWatcher Dobsonians, SkyWatcher Maksutov-Newtonians.
- For SharpStar telescopes, SkyRover telescopes, TS Optics, Astro Tech, and Feather Touch.

Please be aware that not all models from the brands above are supported.  You can read the following instruction for the full supported list of telescopes and the different connection methods:

ZWO EAF Compatible Focuser List & Connecting Methods https://www.yuque.com/zwopkb/hardware/eaf-support-list

More models will be supported in the future. Please stay tuned.

Parameters:

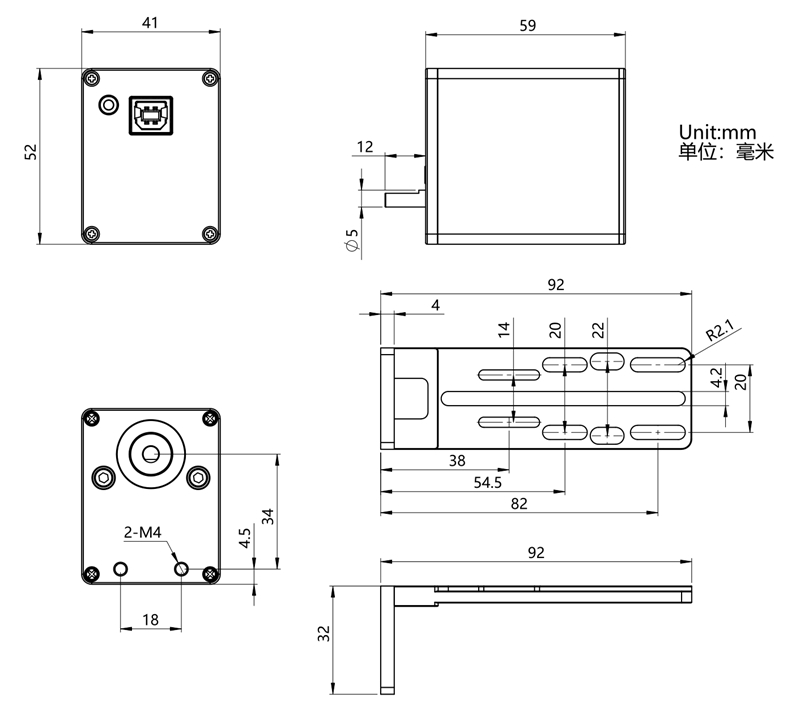

- Size: 59mm x 52mm x 41mm
- Motor: Step motor, 35mm diameter, 7.5° step angle
- Reduction ratio: 120

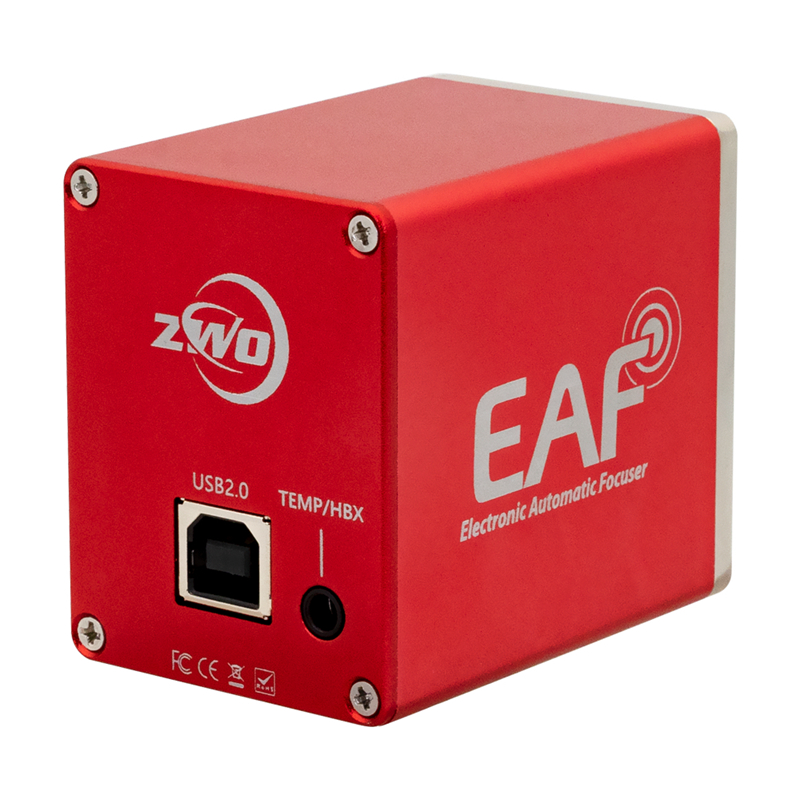

- Power/Data port: USB2.0 port, Type-B
- Weight: 277g
- Capacity: 5kg

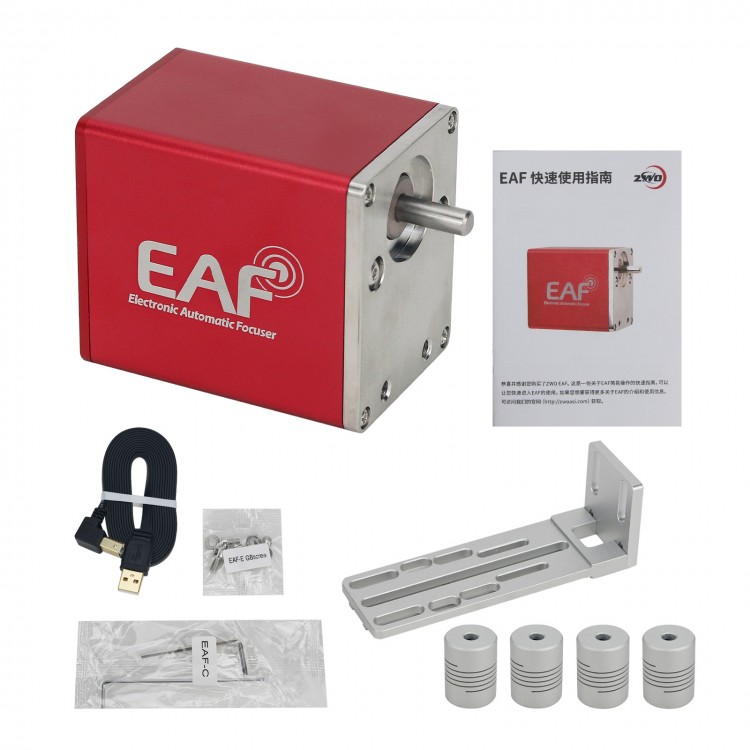

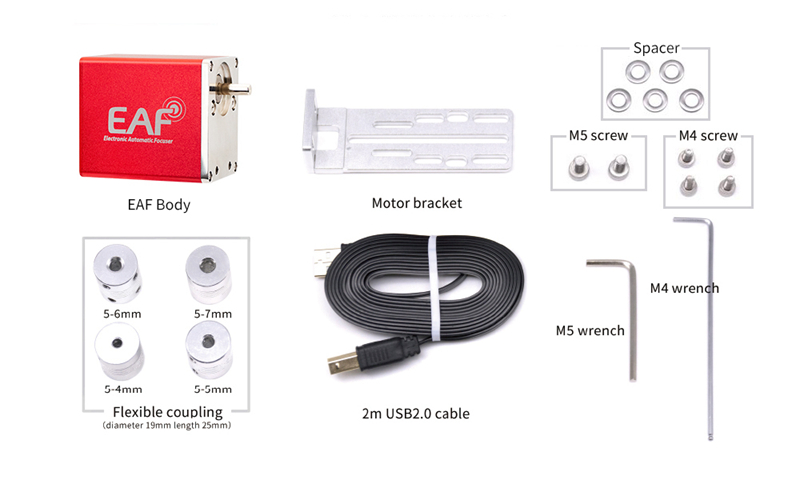

Package Included:
- 1 x EAF Body
- 1 x Motor Bracket
- 5 x Spacers
- 2 x M5 Screws
- 4 x M4 Screws
- 1 x M5 Wrench
- 1 x M4 Wrench
- 4 x Flexible Couplings
- 1 x 2M USB2.0 Cable

Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
