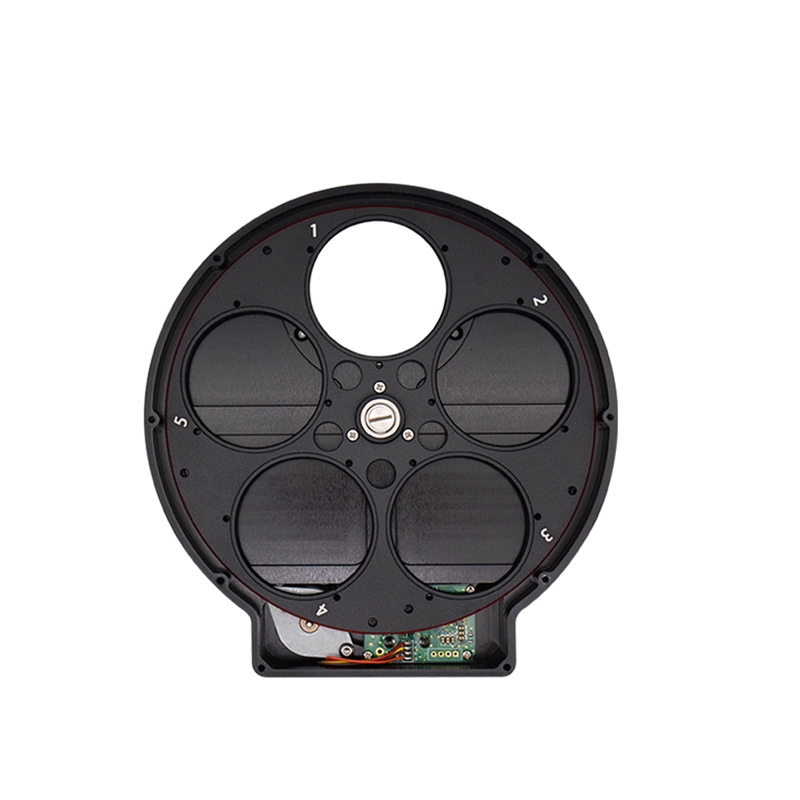

ZWO EFW5X2” 2-inch EFW Electronic Filter Wheel 5-Position Support 2-inch Filter ASCOM and SDK Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$312.39
  • Price in reward points: 3124 Reward Points: 31
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $306.14 $299.89 $290.52 $278.03 Contact US
Quantity:

ZWO EFW5X2” 2-inch EFW Electronic Filter Wheel 5-Position Support 2-inch Filter ASCOM and SDK Control

Specification:

- Net Weight: 500g
- Power Supply: USB2.0
- Controlling method: ASCOM and SDK
- Drive method: Drive-free

Features:
- The main body of the filter wheel is processed from a single piece of aluminum CNC with exquisite craftsmanship and lightweight, with a thickness of only 20mm.
- The stepper motor is the core part of the filter wheel, and ZWO's filter wheel uses a motor for NPM with a reliable performance and quality.
- Support clockwise or counterclockwise rotation
- Supported filters:
  2-inch thread-in filters
  50.4mm±0.5mm unmounted filters
- When connected to ASI6200, the distance from the filter to the sensor is about 18mm

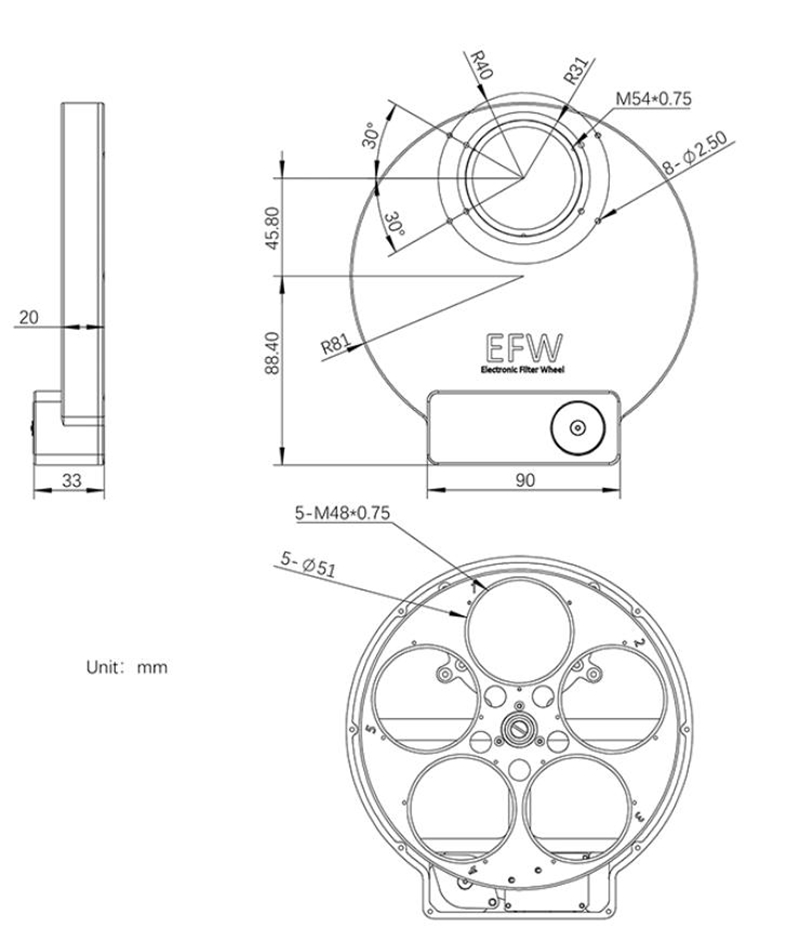

- EFW (5x2"or 7x2") that can perfectly support ZWO 2” filter; If you want to use other 2” filter, the following requirements in the figure must be met:

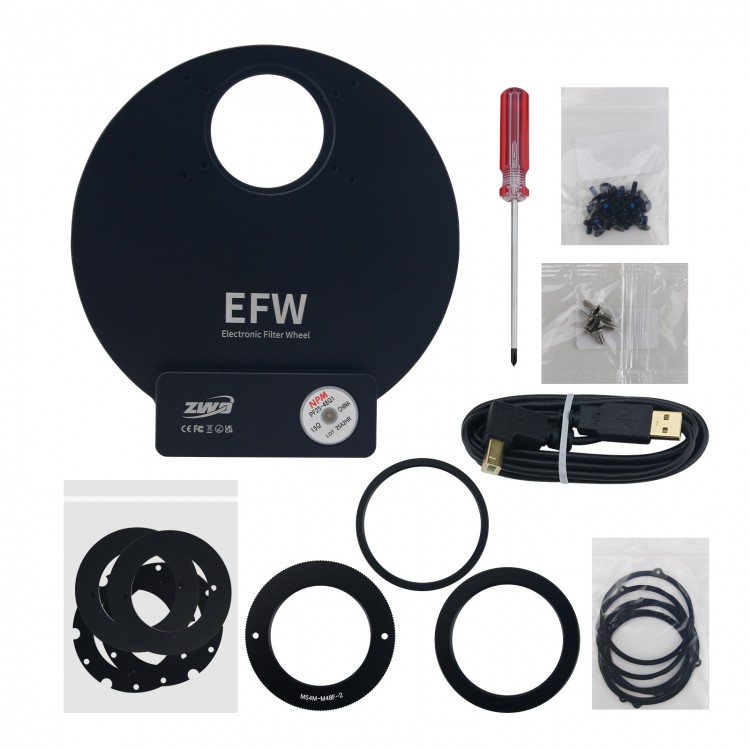

Package Included:
- 1 x EFW5x2”
- 1 x 2m USB2.0 Cable
- 1 x M2.5x6 Screw Kit
- 1 x Filter Pressure Ring Package for 50mm Filter’
- 1 x Cross Screw Driver
- 1 x M2x4 Screw Kit
- 1 x M54M - M48F
- 1 x M54M - M42F
