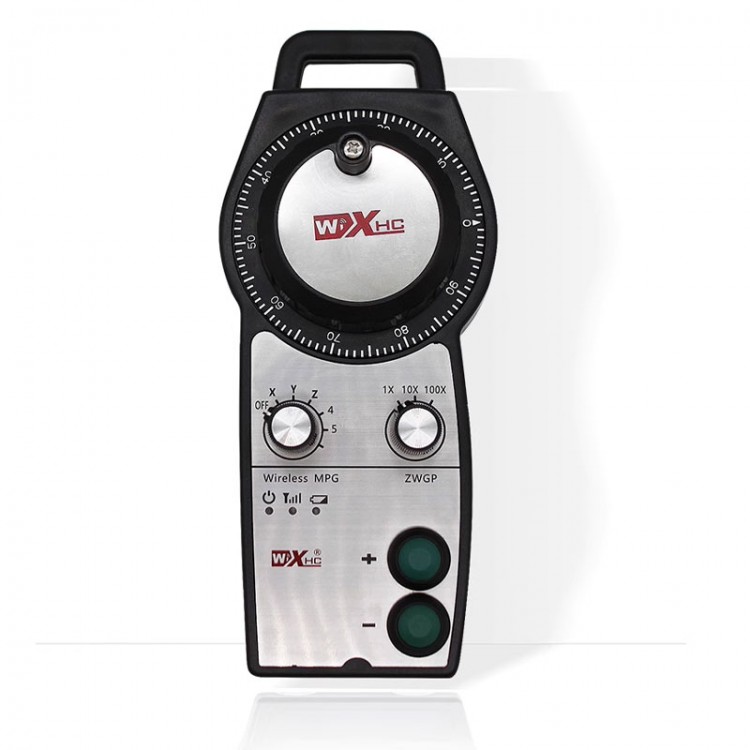

ZWPG Electronic Handwheel 4/5/6 Axis Control Wireless MPG CNC Manual Pulse Generator for SIEMENS/FANUC

ZWPG Electronic Handwheel 4/5/6 Axis Control Wireless MPG CNC Manual Pulse Generator for SIEMENS/FANUC

Precaution:
- Please contact our customer service for the applicable system you need before payment.

Features:
- Application: suitable for CNC machines for Siemens, Mitsubishi, FANUC, FAGOR, NUM, LNC, and SYNTEC, etc.

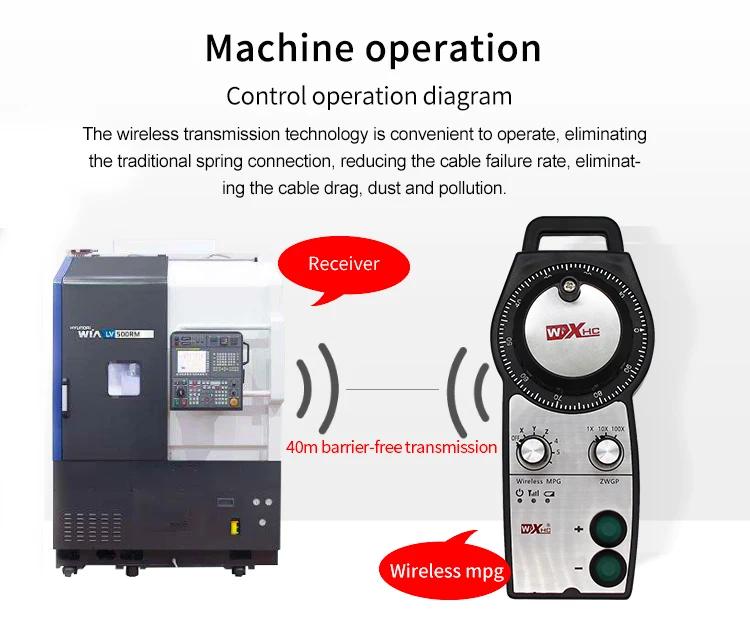

- Support 40m non-obstacle transmission.
- Low power consumption design, it can be used continuously for 30 days.

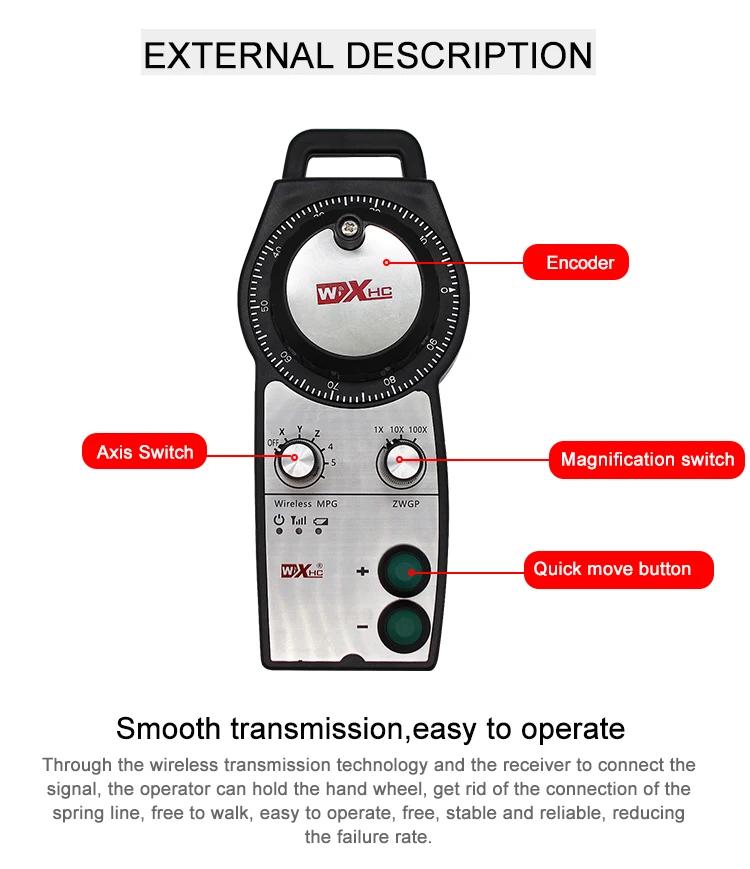

- Adopting an alloy encoder, it has stable and reliable performance, good hand feel, and clear gear position.
- The metal panel is corrosion-resistant, with knob buttons to prevent oil and dust from entering, and is not easily lifted at high and low temperatures.
- Ergonomic design, can be operated with both hands.

Specification:
Wireless Transmission Parameter:
- Communication channel: ISM 433M
- Power supply: 2 x AA batteries (not included)

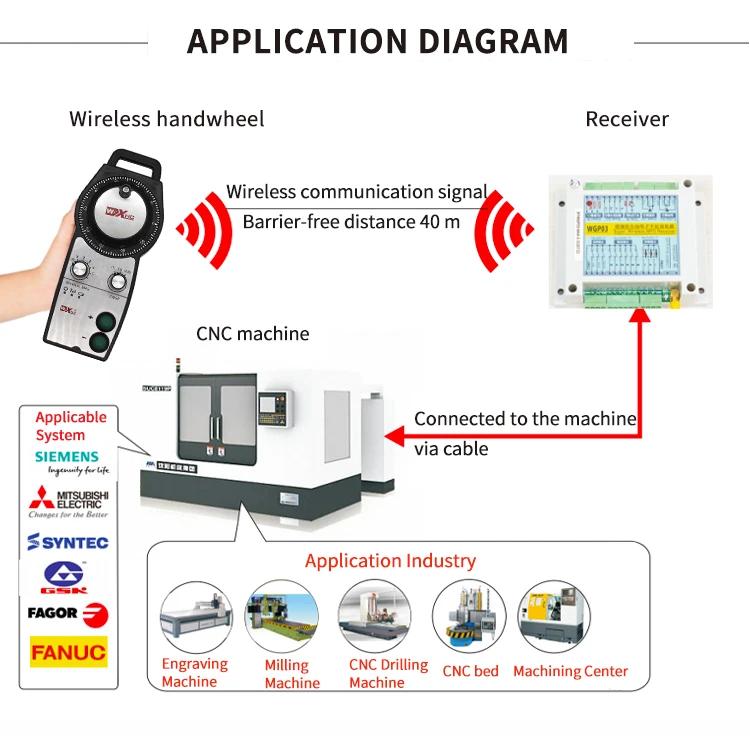

- Wireless transmission distance: non-obstacle 40m

DC Electrical Parameter:
- Working voltage: 2.2V - 3.3V (2 x AA batteries, not included)
- Average working current: < 10mA

Encoder Pulse Output Parameter:
- Encoder: 100PPR
- Pulse signal type: 5V differential signal or 12V non-differential signal
- Pulse signal voltage: support 5V, 12V

Axis Selection Magnification Parameter:
- Axis selection signal output method: point to point
- Magnification signal output method: point to point

Handwheel Performance Parameter:
- Transmitting power: 10dB
- Receiving sensitivity: -98dB
- Maximum supporting axis: 6 axis
- Material: ABS, PC, alloy

Package Included:
- 1 x MPG

Note:
- The parameters of our handwheel pendant varies to fit for different systems.
- It can also be applied to other systems, please offer detailed parameters of your original electronic handwheel to us so that we can help you match the right one. Thank you!
- Battery is not included.
