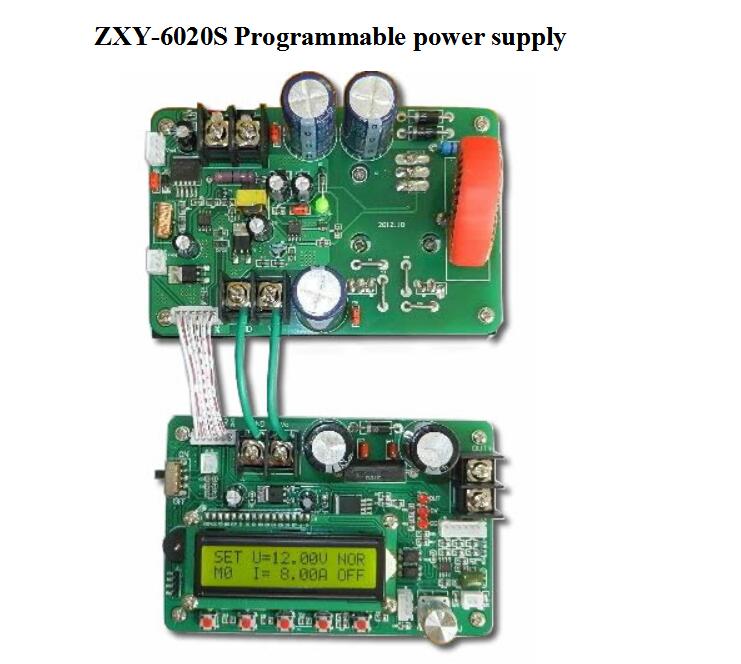

Brief introduction:
- ZXY-6020S is single output programmable switch power supply. Its specification is 60V, 20A, 1200W. It designed by DC-DC modularization ,has a small size and a high output power. Besides, it has equipped with TTL serial interface, provide a serial communication protocol, allows user to secondary development, we can according to your design and test requirements to provide versatile solutions.

- ZXY6020 ARational design, use of materials,With power and control panels are designed separately, you can heat a larger portion of the power board into easy-ventilated area,Back has a large radiator, large margin, after our 10 hours20AFull load pagers,In the case of natural cooling without air-cooled, continuous working stable, but the larger heat radiator temperature is about to90 , preferably with a fan to enhance heat dissipation, while the radiator when working at full capacity is only slightly warm not hot, the temperature is about 60 or so.

Main special features and advantages:
- Based on BUCK structure of switch power supply technology, the work frequency reach up to150KHZ
- DC input voltage range : 13V~ 62V, which is suitable for multiple kinds of pre-stage input power supplies
- Operation key and multi-function encoder combine for the operation, it is convenient and easy to use
- High accuracy and high resolution: 10 mV / 10 mA
- Low ripple and low noise
- Indicator light:constant current( CC) ,constant voltage (CV) and output state (ON)
- LCD1602 display
- Adjust voltage and current by adjustment knob and keys
- Support measuring and displaying output voltage, output current, output power, output electric quantity (AH) and working time
- Intelligent temperature detection, can connect an external DC12V fan,and control its speed in level
- The minimum voltage difference 2V can still work steadily
- With output turn off function key ,flexible turn on or off output
- 10 groups of parameter settings of M0-M9, which can be conveniently called out at any moment
- Prompt for operation or alarm function of onboard buzzer
- Convenient and simple three-phase charge intelligent control function of storage battery
- With TTL serial communication, and improved communication protocol so as to be convenient for centralized control

Dimension:

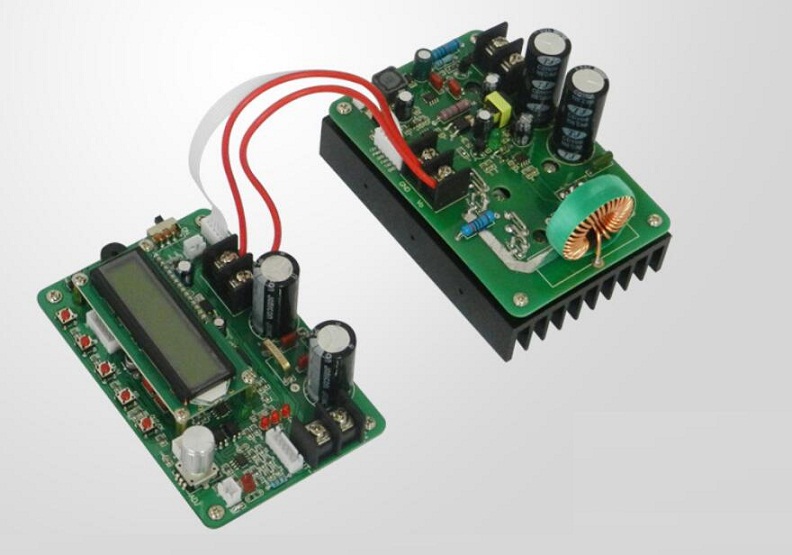

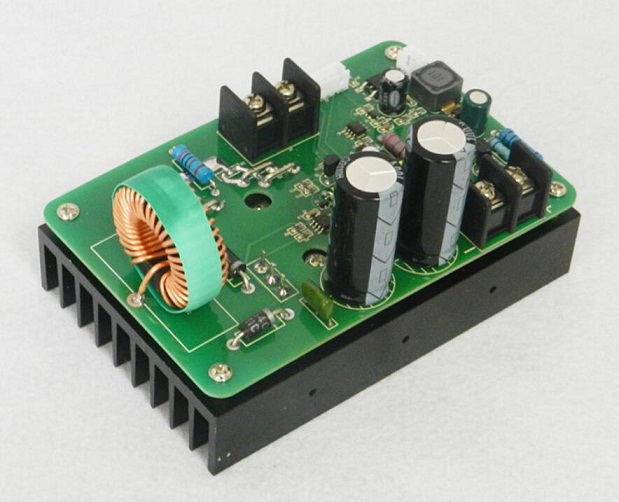

Power module (including radiator):85mm(length)*63mm* (wide)*70mm (high)

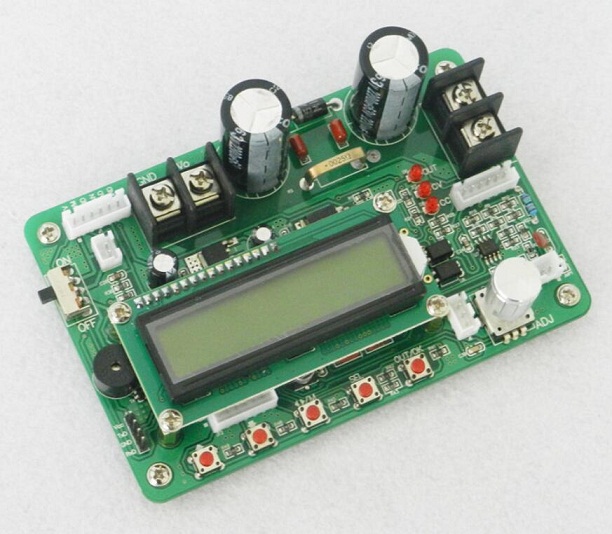

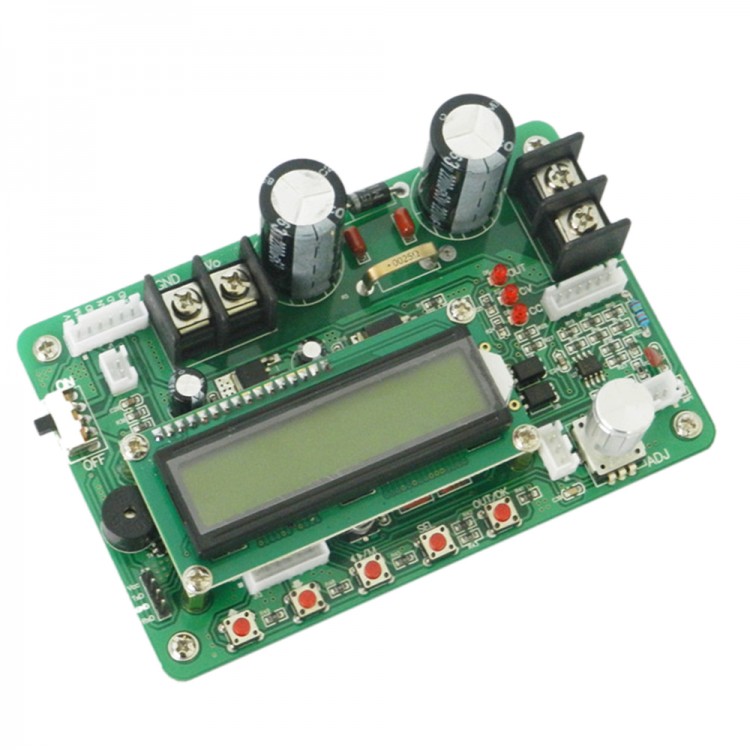

Control module:130mm(length)*85mm (wide)*43mm(high)

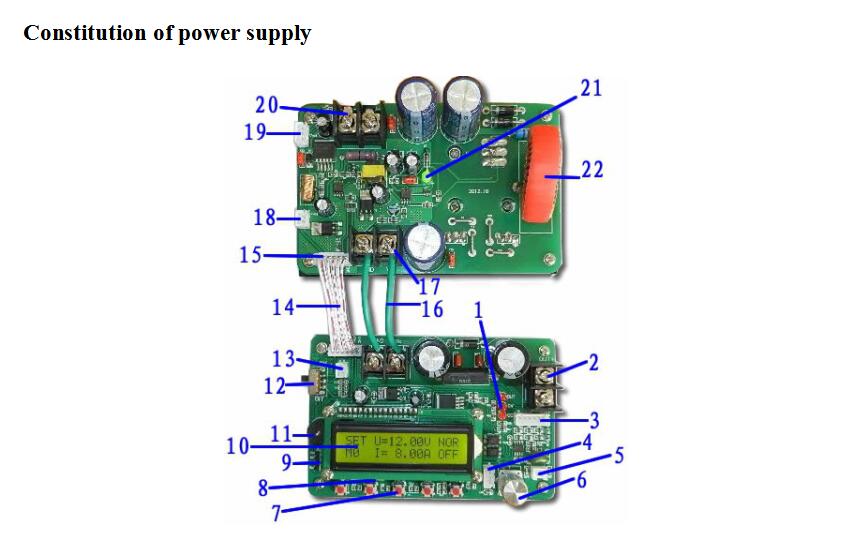

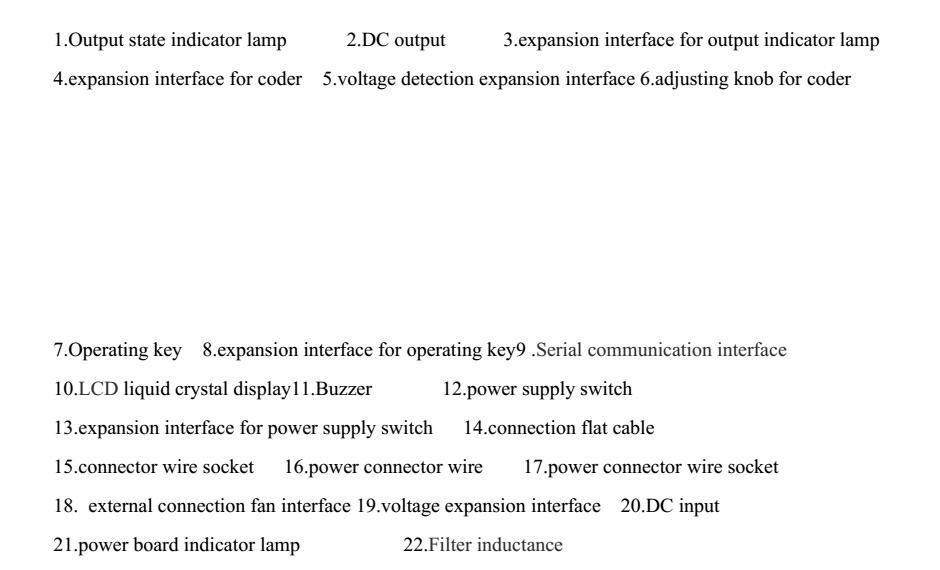

Features:
1. Nased on the BUCK framework of switch power supply technology, work frequency 150KHz
2. DC input range: DC13V to DC62V suitable for a variety of previous input power
3. Digital key operation and multi-function encoder switch operation
4. High resolution and accuracy
5. Low noise and ripple,to be on a par with liner power supply
6. High resolution:10mV/10mA
7. Intelligent air cooling control
8. Support parallel connection and series connection
9. Voltage and current adjustment: coarse control and fine control
10. Support measurement shows that the output voltage, current, power, AH, time11. minimum differential pressure 2 v can still work stability
12. Power board control board fission design
13. Output shutoff button key flexible open or closed output
14. M0 to M9 common 10 group parameter set

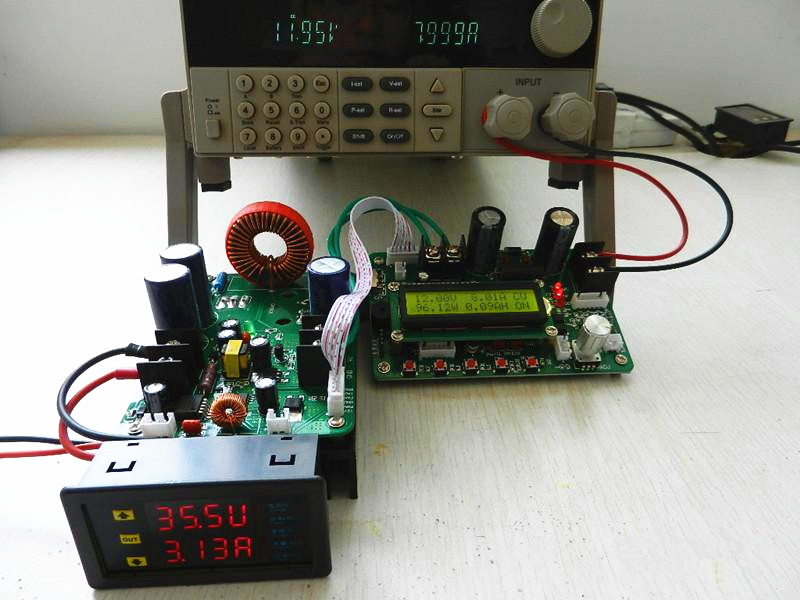

Technical Specifications:
-  This chapter introduces the rated voltage, rated current, rated power and other main technical parameters of ZXY-6020S, and the use storage environment and temperature of ZXY-6020S.
- Input Voltage:13V～62V
Output Voltage:0～60V
Output Current:0～20A
Output power:0～1200W
Setup resolution of output voltage:10mV
Setup resolution of output current:10mA
Source regulation:CV is less than 0.5% + 10 mV CC is less than 1% + 5 mA
Load regulation:CV is less than 0.5% + 10 mV CC is less than 1% + 5 mA
Output ripple:< 50mVpp (Input 54 V, 12 V output, current 8 A)
Volatility transmission ratio of 100 Hz:< 1/10000
Typical Efficiency:Input 54 V, 36 V, output current 8 A
The display precision of  Voltage Current:10mV,10mA
Display error of Voltage:±1%+50mV
Display error of Current:±2%+20mA
Response time:< 50ms
Memory operation:10 groups of parameter storage of M0-M9
Protection type:OTP,OVP,OCP,OPP,OAH,OFT
Heat-dissipating method:heat dissipater and fan (optional)
Operating ambient temperature:0～40℃
Storage ambient temperature:-20～70℃
Use ambient:For indoor use,maximum humidity of 80%
Rated value( 0C-40C ):0-90V(voltage); 0-20A(current); 0-1200W(power)
Typical efficiency:Vi= 54V,Vo= 26V,Cur.= 20A, efficiency=88%
State storage capacity: M0-M9
Cooling style:Fans

Package List:
- 1 x ZXY-6020S  Power board
- 1 x ZXY-6020S Display Control board
