ZYNQ Development Board Compatible with ZC706 Software Defined Radio Development Platform

ZYNQ Development Board Compatible with ZC706 Software Defined Radio Development Platform

Description:
1. ZYNQ chip XC7Z045-FFG 900 or XC7Z100-FFG 900 is optional.
2. Four pieces of DDR3 memory form 8GBIT (1GBYTE) running memory, which is connected to the PS side, and the PL side can be accessed through the HP interface.
3. RGMII interface Gigabit Ethernet, compatible with 1000M/100M/10M, PHY chip is 88E1116R.
4. The HDMI video output interface, use the chip ADV7511 to support 2K HD, can be used as a LINUX display of the graphical interface, provide a LINUX system.
5. There are two USB to UART interfaces, which are connected to PS and PL respectively. PS can be used as a processor system running program for dialogue, and the PL part can be interacted with by the user's self-written logic.
6. On-board download cable, connect the USB cable to realize all the functions of the download line, realize processor debugging, logical download and FLASH programming.
7. The USB OTG interface can realize an external mouse, keyboard or U disk, etc.
8. Two-channel FLASH chip with QUARD SPI interface works in 8-channel parallel expansion mode, expands the FLASH storage capacity to 32MB and improves the PS loading speed.
9. Support SD card, up to 32G capacity SD card, can be used as boot disk or data disk.
10. On-board 16G EMMC chip, connected to the PS part through EMIO, used as a large-capacity high-speed data disk or file disk.
11. 3-channel LPC standard FMC interface, able to connect to the FMC board for various extended tests. Each group can connect 34 pairs of differential or 68 single-ended IO.
12. 4 groups of PMOD interfaces, each with 8 3.3V IO ports.
13. IIC clock chip, IIC memory chip and other peripherals. Among them, PL part and PS part are connected with 1KB EEPROM respectively.
14. 4-digit DIP switch input, 3-digit button input.
15. PS clock input is single-ended 33.33MHZ, PL part clock input is single-ended 100MHZ and differential 200MHZ.

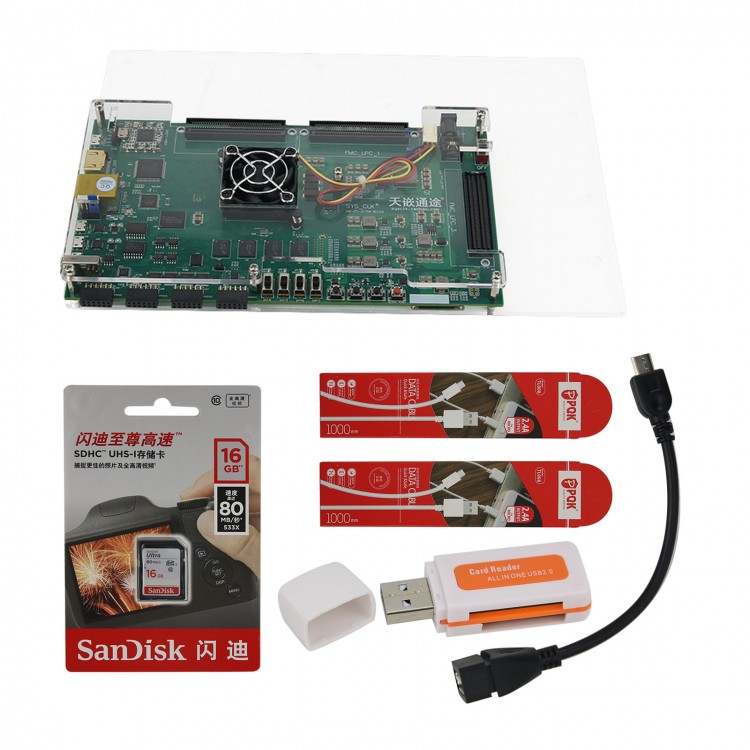

Package List:
-1 x SC706 Motherboard
-1 x 12V Power Supply
-2 x MICRO USB Cable
-2 x USB OTG Cable
-1 x Gigabit Ethernet Cable
-1 x SD Card and SD Card Reader

Note: The SC706 motherboard has 7Z100 chip and 7Z045 chip optional.

Q&A
1. Do I need to purchase a download cable separately?
Answer: There is an on-board download cable module U10 on this board that has been connected, J2 can be used as a download cable directly after connecting the USB cable, full-featured and fast.
You can also use an external JTAG download cable to connect to the 6PIN standard XILINX JTAG interface on the board. To use an external download cable, you need to unplug the USB port J2 of the on-board download module.

2. Is FMC LPC or HPC?
Answer: The 3 FMC ports are all LPC standards.

3. The advantages and disadvantages of the 7Z045 and 7Z100 chip versions.
Answer: 7Z045 has better compatibility with the official board ZC706, such as:
A. Run the LINUX image downloaded from the official website directly, or compile the LINUX source code without modification.
B. Directly select ZC706 board under VIVADO environment, directly use ZC706's PS configuration and DDR3 configuration.
C. MATLAB has a toolbox connected to ZC706, which is directly available.
D. ADI official also has LINUX based on ZC706, which is also used directly.

The advantage of using 7Z100 is that there are more PL resources, and PS resources are the same as 7Z045, suitable for users who are familiar with ZYNQ system. You can choose according to your needs.
