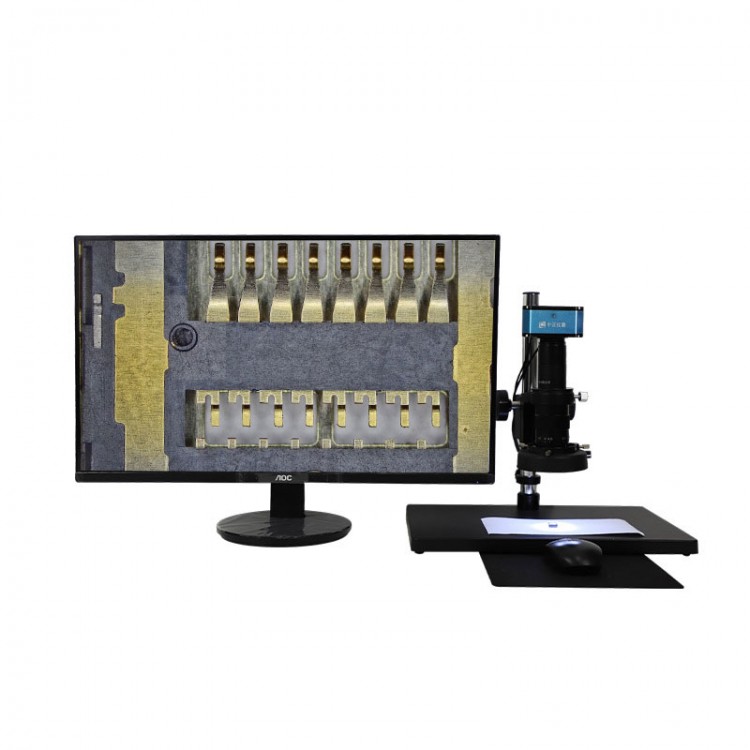

ZZR-3000XC HD 0.7-4.5X CCD Camera Electronic Microscope HDMI-compatible + USB Interface with 22-inch IPS Screen

ZZR-3000XC HD 0.7-4.5X CCD Camera Electronic Microscope HDMI-compatible + USB Interface with 22-inch IPS Screen

Description:
- This product is suitable for appearance inspection and measurement of hardware, precision components, connectors, blades, PCB circuit boards, FPCs, textiles, liquid crystal screens, various visual industrial testing, medical research, and other related products. It has the characteristics of clear imaging, strong three-dimensional sense, long working distance, and wide field of view. It is specially designed with various lighting devices, LED adjustable circular light source, and fluorescent circular light source. Without the need for an external connection of computer host, it can be directly connected to CCD and HDMI-compatible high-definition monitors. It can take photos, record videos, save, measure, export data, and accurately measure the size of the product (with a measurement range of 15mm and a resolution of 0.001mm).

Features:
- Built in the new V3.8 measurement system, with new features such as custom interface editing, custom template editing, DXF import template, file management, and measurement data export, making operations smarter, faster, and more powerful;
- The new system improves image clarity once again;
- Adopting for SONY high sensitivity and low noise sensor, with powerful performance and smooth preview;
- Adopting for ARM Cortex A7 dual core at Max1.3GHz processor, ensuring smooth and stable operation;
- Built-in recording and shooting functions for playback;
- Built-in automatic edge finding function to improve measurement effect;
- Support USB storage function and can be connected to an external mouse;
- The software automatically converts the magnification, making reading the magnification more intuitive.

Specification:
- Model: ZZR-3000XC
- Total magnification: about 30-200 times adjustable
- Standard field of view range: 2.5mm - 22mm

Lens:
- Optical magnification: 0.7X - 4.5X
- Camera eyepiece: 0.5X
- Working distance: about 100mm

Stand:
- Lifting range: 280mm
- Base column: 380 x 250 x 20mm, 340 (column height)

Camera:
- Lens interface: standard C/CS interface
- Sensor: 1/2” for SONY CMOS sensor
- Resolution: 1920 x 1080
- Output method: HDMI-compatible interface
- Storage method: USB flash drive storage / photography / measurement
- Color: colorful, black and white
- Frame rate: 60 frames/second
- Pixel size: 3.75um x 3.75um
- Cross curve: supports 0-100 vertical/horizontal lines, with adjustable colors and positions
- Measurement function: point spacing, point line spacing, line spacing, angle, radian, parallel line, circle, center distance, point-to-center distance, center distance, rectangle, polygon, automatic edge searching and other functions

Package Included:
- 1 x CCD Camera
- 1 x Continuous Adjustable Zoom Lens
- 1 x Set of Base and Adjustable Bracket
- 1 x LED Adjustable Light Source
- 1 x USB Optical Mouse
- 1 x 32G Storage Card (with Card Reader)
- 1 x Standard Glass Calibration Ruler
- 1 x 22-inch IPS Screen
