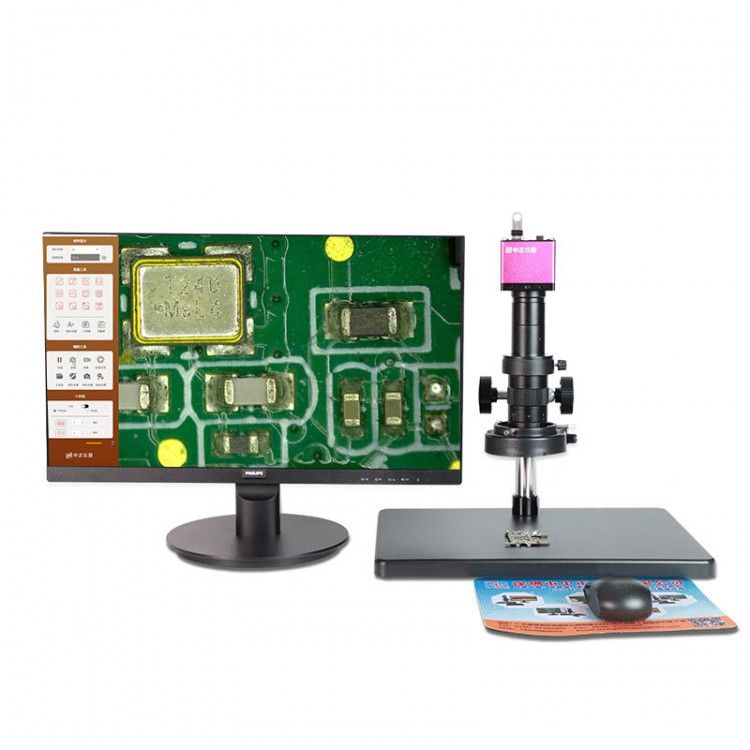

ZZS-3000HC HD 0.7-4.5X CCD Camera Electronic Microscope HDMI-compatible + USB 1/2” for CMOS Sensor with 22-inch Screen

ZZS-3000HC HD 0.7-4.5X CCD Camera Electronic Microscope HDMI-compatible + USB 1/2" for CMOS Sensor with 22-inch Screen

Description:
- This product is suitable for appearance inspection and measurement of hardware, precision components, connectors, blades, PCB circuit boards, FPCs, textiles, liquid crystal screens, various visual industrial testing, medical research, and other related products. It has the characteristics of clear imaging, strong three-dimensional sense, long working distance, and wide field of view. It is specially designed with various lighting devices, LED adjustable circular light source, and fluorescent circular light source. Without the need for an external connection of computer host, it can be directly connected to CCD and HDMI-compatible high-definition monitors. It can take photos, record videos, save, measure, export data, and accurately measure the size of the product (with a measurement range of 15mm and a resolution of 0.001mm).

Features:
- Built-in measurement system, with functions such as customized interface editing, file management, and measurement data export, making operation more intelligent, faster, and more powerful;
- The new system improves image clarity once again;
- Built-in recording and shooting functions can be played back;
- Support USB storage function and can be connected to an external mouse;
- Horizontal and vertical flipping, line/circle calibration, measurement, and other functions.

Specification:
- Model: ZZS-3000HC
- Total magnification: about 30-200 times adjustable
- Standard field of view range: 2.5mm - 22mm

Lens:
- Optical magnification: 0.7X - 4.5X
- Camera eyepiece: 0.5X
- Working distance: about 100mm

Stand:
- Lifting range: 280mm
- Base column: 380 x 250 x 20mm, 340 (column height)

Camera:
- Lens interface: standard C/CS interface
- Sensor: 1/2” for CMOS sensor
- Resolution: 1920 x 1080
- Output method: HDMI-compatible interface
- Storage method: USB flash drive storage / photography / measurement
- Color: colorful, black and white
- Frame rate: 60 frames/second
- Pixel size: 3.75um x 3.75um
- Cross curve: supports 0-32 vertical/horizontal lines, with adjustable colors and positions
- Measurement function: point spacing, point line spacing, line spacing, angle, radian, parallel line, circle, center distance, point-to-center distance, center distance, rectangle, polygon, automatic edge searching and other functions

Package Included:
- 1 x CCD Camera
- 1 x Continuous Adjustable Zoom Lens
- 1 x Set of Base and Adjustable Bracket
- 1 x LED Adjustable Light Source
- 1 x USB Optical Mouse
- 1 x 32G Storage Card (with Card Reader)
- 1 x Standard Glass Calibration Ruler
- 1 x 22-inch Screen
