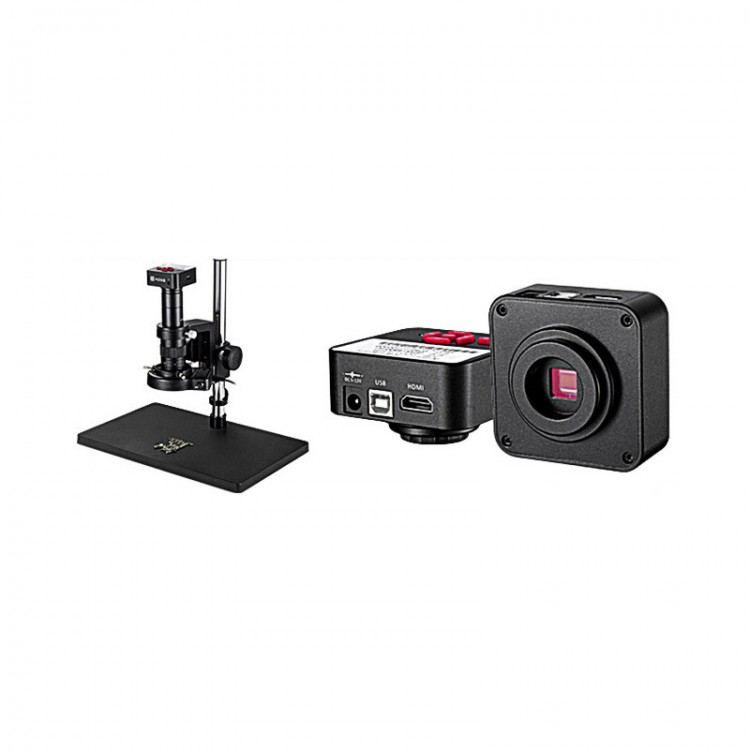

• ZZW-4800HU 38 Million Pixels Electronic Microscope CCD Detector HDMI-compatible Industrial Microscope Support IR Remote Control

ZZW-4800HU 38 Million Pixels Electronic Microscope CCD Detector HDMI-compatible Industrial Microscope Support IR Remote Control

Availability: In stock, usually dispatched in 1 business day

  • Price:$347.69
  • Price in reward points: 3477 Reward Points: 35
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $340.74 $333.78 $323.35 $309.44 Contact US
Quantity:

ZZW-4800HU 38 Million Pixels Electronic Microscope CCD Detector HDMI-compatible Industrial Microscope Support IR Remote Control

Description:

- This product is suitable for appearance testing of hardware, precision components, connectors, blades, PCB circuit boards, FPCs, textiles, liquid crystal screens, various visual industrial testing, medical research, and other related products. It has the characteristics of clear imaging, strong three-dimensional sense, long working distance, and wide field of view. It is specially designed with various lighting devices, LED adjustable circular light source, and fluorescent circular light source. There is no need to connect an external computer host, it can directly connect a CCD camera and an HDMI-compatible high-definition monitor.

Specification:
- Model: ZZW-4800HU

Lens:
- Optical magnification: 0.7X - 4.5X
- Camera eyepiece: 0.5X
- Working distance: about 100mm

Stand:
- Lifting range: 280mm
- Base column: 380 x 250 x 20mm; 340mm (height)

Camera:
- Lens interface: standard C/CS interface
- White balance: automatic, manual (R/G/B), one click white balance
- Output method: HDMI-compatible + USB dual interface
- Image control: contrast/saturation/clarity adjustable
- Output resolution: 1920 x 1080
- Photographic pixels: 7120 x 5344
- Target size: 1/2.33 inches
- Exposure control: manual or automatic exposure
- Frame rate: 60 frame/second
- Pixel size: 1.335um x 1.335um
- Storage function: SD card (not included)
- Cross curve: supports 0-8 vertical/horizontal lines, color, and position adjustable at will
- Total magnification: about 30-200 times adjustable
- Standard field of view range: 2.5mm - 22mm
- Color setting: color; black and white
- Language: CN/EN
- Remote control: IR remote control
- Power: DC 12V

Package Included:
- 1 x ZZW-4800HU HD CCD Camera
- 1 x Continuous Adjustable Zoom Lens
- 1 x Set of Base and Adjustable Bracket
- 1 x LED Adjustable Light Source
